Heavy-Duty Gold Trommel Scrubber for High-Clay Alluvial Ore Washing


Availability:

Quantity:



Inquire Add to Basket

【Capacity】30-400 T/H
【Feeding Size】＜300mm
【Screen material】PU, manganese, or stainless steel, 1 layer, 2 layers.
【Types】Fixed type and portable type
【Application】Suitable for effectively washing and sieving ore material which contains sticky clay and mud, and prevents clogging in Gold dredger, quartz mine, limonite ore, nonferrous ore, construction use sand and gravel washing, etc.
【Service】Trommel Scrubber design, mineral separation test, mineral processing process design, on-site installation or remote installation.

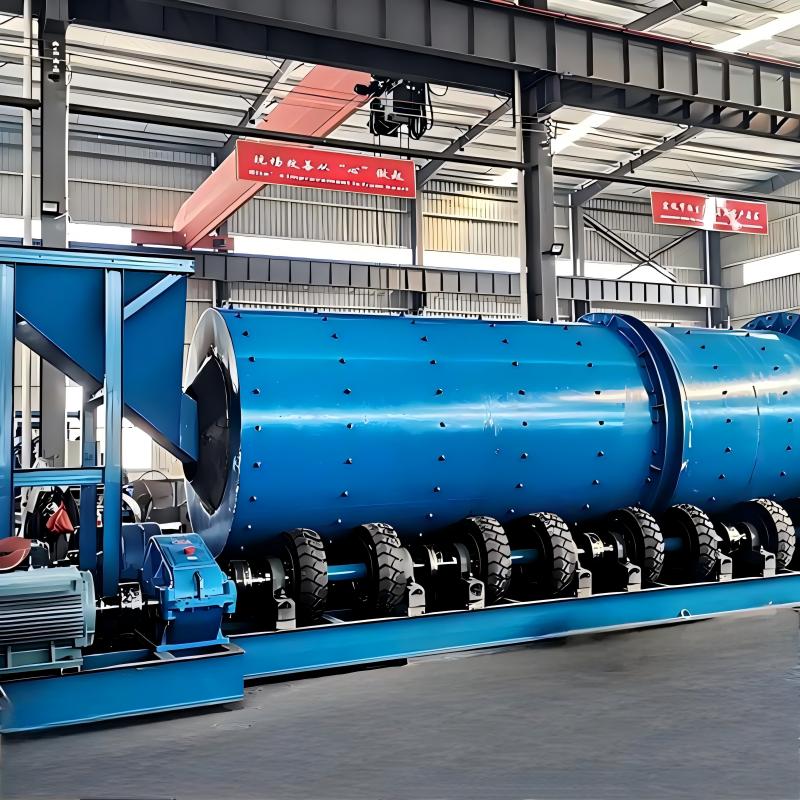

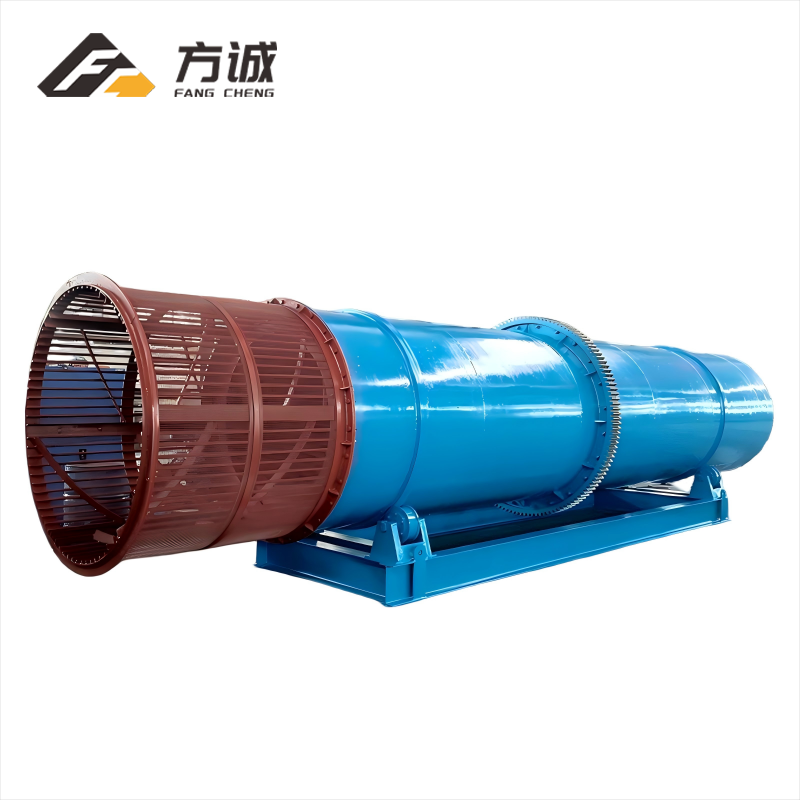

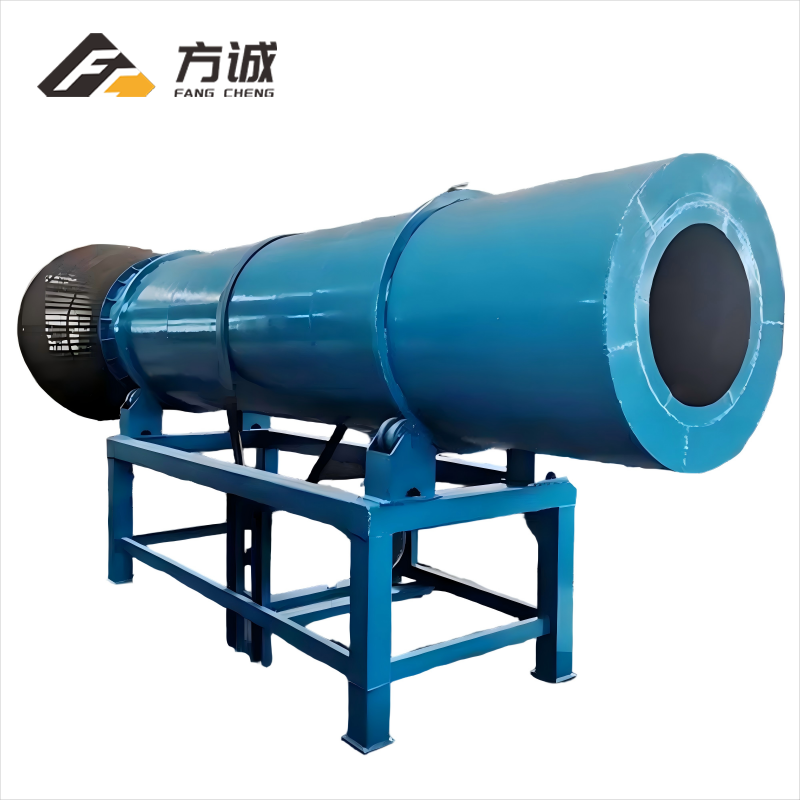

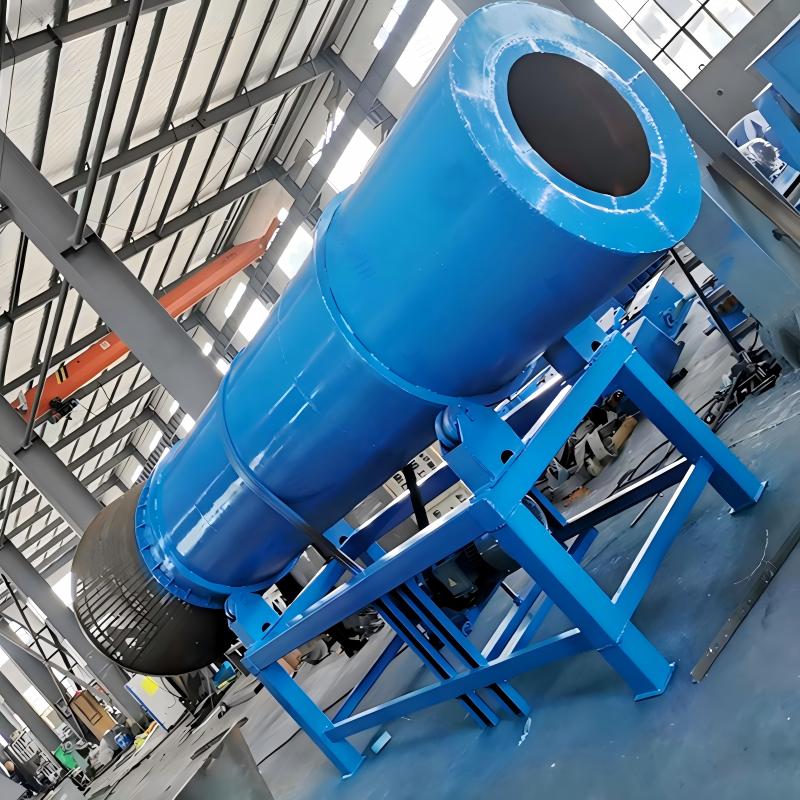

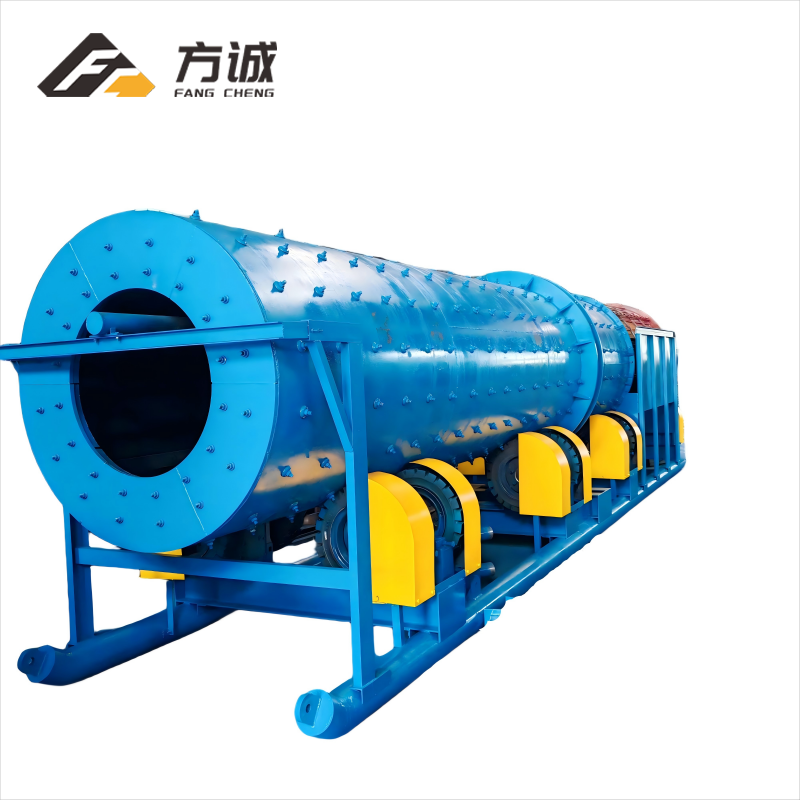

The trommel scrubber, commonly referred to as a rotary screen ore washer or cylinder screen washer, is a versatile piece of hydraulic equipment designed for cleaning soil and sticky mud. This innovative machine performs dual functions: it effectively cleans raw materials while also screening them by particle size. The trommel scrubber not only provides preliminary cleaning of materials but also efficiently sieves them, enhancing the overall processing of gold recovery operations.

Gold Trommel Scrubber Rotary Ore Scrubber Mobile Trommel Scrubber Diesel Scrubber Auto-Discharge Scrubber

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Working Principle

The trommel scrubber achieves efficient ore washing through the synergistic effect of mechanical scrubbing in a rotating drum and high-pressure counterflow water washing. Ore and slurry (adjusted to 20-25% density) enter the rotating drum where continuous tumbling and friction effectively separate clay from ore lumps. At the discharge end, high-pressure water (0.3-0.5MPa) is introduced for reverse flushing to enhance clay removal, with clay-laden wastewater exiting through perforated baffles. The cleaned ore is then precisely classified into coarse, medium and fine fractions by the rotating conical screen while undergoing dewatering with spray water. This process can significantly upgrade ore grade by 3-8%, making it particularly suitable for processing high-clay content ores including alluvial gold, oxidized ores, hematite, limonite, manganese ore, iron ore, limestone, tungsten ore, tin sand ore, silica sand and other minerals.

Advantages

Powerful Clay Processing：Robust drum rotation + internal lifters. Breaks down ores with up to 40% clay content. 98% washing efficiency, 3x throughput vs traditional washers.
Eco-Friendly Operation: Water recycling + dual power options. 50% less water usage, off-grid capable. 35% lower cost per ton, meets environmental regulations.
Multi-Mineral Versatility: Adjustable speed (5-25rpm) + interchangeable screens. Processes gold/cassiterite/wolframite etc. 80% higher utilization, faster ROI.

Technical Parameters

Rotary Scrubber
Model	Drum Size (m)	Screen Size (mm)	Feeding Size (mm)	Water Pressure (Mpa)	Every ton of ore water required (M3/t)	Capacity (T/h)	Rotation Speed (r/min)	Power (Kw)	Weight (Kg)
RXT1030	Φ1.0×3.0	≥5	≤100	0.4～0.5	1.5～4	30～50	25～28	15	4800
RXT1230	Φ1.2×3.0	≥5	≤100	0.4～0.5	1.5～4	50～70	23～25	18.5	5800
RXT1545	Φ1.5×4.5	≥5	≤150	0.4～0.5	1.5～4	70～120	18～22	30	6900
RXT1560	Φ1.5×6.0	≥5	≤150	0.4～0.5	1.5～4	80～130	18～22	37	8300
RXT1845	Φ1.8×4.5	≥5	≤170	0.4～0.5	1.5～4	90～130	20～21	45	11800
RXT1860	Φ1.8×6.0	≥5	≤170	0.4～0.5	1.5～4	100～140	20～21	45	12800
RXT2060	Φ2.0×6.0	≥5	≤210	0.4～0.5	1.5～4	120～160	19～20	55	14800
RXT2265	Φ2.2×6.5	≥5	≤230	0.4～0.5	1.5～4	160～180	19～20	55	16500
RXT32100	Φ3.2×10	≥5	≤300	0.4～0.5	1.5～4	300～400	12	90*2	53000
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

1岩金矿-南苏丹

Rock Gold Mine - South Sudan

2砂金矿-津巴布韦

Sand Gold Mines - Zimbabwe

3铬铁矿-南非

Chromite - South Africa

4铬矿-津巴布韦

Chromium Ore - Zimbabwe

5锡矿-玻利维亚

Tin Mines - Bolivia

6锡矿-印尼

Tin Mines - Indonesia

7氧化铜-俄罗斯

Copper Oxide - Russia

8钽铌矿-尼日利亚

Tantalum Niobium Ore - Nigeria

9锂矿-巴西

Lithium Mines - Brazil

10高岭矿-乌干达

Gaoling Mine - Uganda

11铅锌矿-摩洛哥

Lead Zinc Mine - Morocco

12锰矿-肯尼亚

Manganese Ore - Kenya

13赤铁矿-南非

Hematite - South Africa

FAQ

Q: What gold ores suit trommel scrubbers best?
A: Ideal for high-clay(30-40%) alluvial gold (0.5-100mm), >95% recovery. Not for ultra-fines(<0.1mm).

Q: How to prevent clay clogging?
A: ①Use spray bars(0.5-0.8MPa) ②Limit feed rate(<15t/h) ③Clean lifters regularly.

Q: Trommel vs traditional scrubber advantages?
A: 3x capacity, 50% less water, 60% smaller footprint, but 20-30% higher cost.
