Breakthrough: Jiangxi University of Science And Technology Develops Province’s First Digital Intelligent Shaking Table—Boosting Tungsten Ore Recovery Efficiency!

Known as the “World Capital of Tungsten,” southern Jiangxi boasts one of the richest tungsten ore reserves globally. As tungsten mining remains a cornerstone of the region’s economy, improving ore beneficiation efficiency is a key priority.

Recently, the High-Efficiency Mineral & Metallurgical Equipment and Intelligence Team at Jiangxi University of Science and Technology has successfully developed the province's first digital intelligent shaking table, marking a significant milestone in the modernization of mineral processing technologies.

This new shaking table integrates an intelligent control system that significantly reduces manual intervention and optimizes energy consumption—key limitations in traditional gravity separation equipment.

Background:

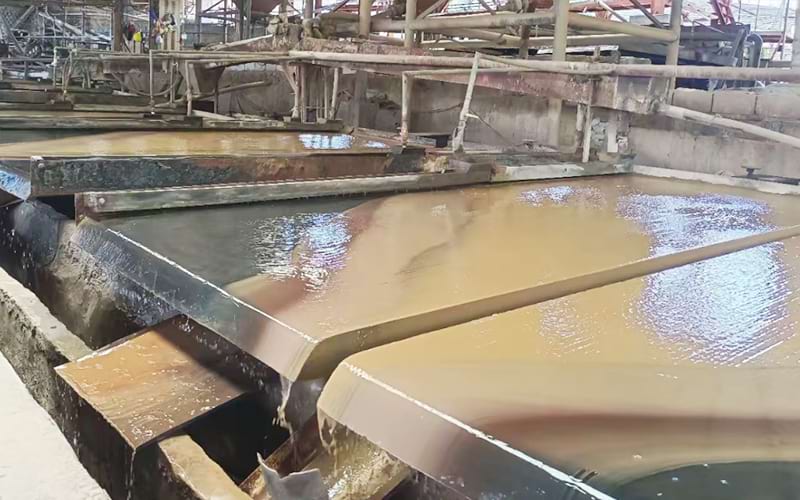

Conventional shaking tables consist of eight major components, including the drive head, feed trough, deck surface, water distributor, slope control, lubrication system, riffles, and motor. Operation still relies heavily on human expertise. Operators must visually monitor ore bands, manually adjust the table slope, and reposition concentrate collectors—making the process labor-intensive and prone to inconsistencies.

Innovation Highlights:

The newly developed digital intelligent shaking table uses machine vision and adaptive control models to achieve full automation of the separation process. An HD camera installed above the concentrate end captures real-time images of ore banding.

Using advanced image recognition, the system identifies band boundaries, angles, and widths, feeding data into an intelligent algorithm that adjusts table slope and concentrate positioning in real time for optimal separation.

Technical Details:

Mechanical Design of the Intelligent Shaking Table:

Deck size: 1825 × 4520 mm

Drive system: Eccentric link mechanism

Support system: Toggle or slide rail structure

Smart Control System:

• Distributed control via industrial PC, PLC, and touchscreen interface.

• Real-time monitoring & analysis.

• Self-adjusting concentrate collection.

• Optimized parameter tuning.

• Remote access and data communication.

Adaptive Slope Adjustment: Automated slope control ensures precise inclination for peak separation efficiency.

Smart Separation Modeling: A control model based on real-time image features dynamically optimizes operational parameters.

Full System Integration:

The integrated system offers:

Real-time band monitoring.

Automated image recognition.

Intelligent separation diagnostics.

Self-adaptive concentrate recovery.

Dynamic adjustment of stroke and slope.

Continuous control optimization.

Results & Impact:

The digital intelligent shaking table has passed both lab and industrial trials, demonstrating stable performance and meeting all design expectations.

It has earned one national invention patent and resulted in three SCI-indexed journal publications. This innovation offers a practical roadmap for the intelligent upgrade of mineral processing equipment—enhancing recovery rates, consistency, and operational efficiency.

Next Steps:

In collaboration with Jiangxi University of Science and Technology, our company will continue to refine system performance and accelerate the industry-wide adoption of digital beneficiation solutions—driving the future of smart mining and sustainable mineral processing.
