【Capacity】 20–1200 T/H
【Feeding Size】＜1000mm
【Types】vibrating feeders, grizzly feeders, electromagnetic feeders, trough feeders, and apron feeders.
【Applicable Materials】Mineral ore, coal, aggregate, concrete, artificial sand, quartz sand, and more.
Fangcheng’s Vibratory Feeder is designed to feed material into crushing machinery continuously and evenly by useing vibration and gravity.
This feeder relies on gravity to direct materials (either downward or sideways), while vibration ensures a smooth, consistent flow.
Widely used in metallurgy, coal mine, mineral processing, building materials, chemical industry and other industries, our vibrating feeders ensure reliable, efficient material handling and are designed for durability and high throughput.
【Capacity】0-130 T/H
【Feeding Size】0-6mm
【Type】Intermittent Discharge Centrifugal Concentrator, Automatic Continuous Discharge Centrifugal Concentrator,Vertical Automatic Discharging Centrifuge and Vertical Manual Discharging Centrifuge.
【Application】Suitable for the separation and recovery of fine-grained ferrous, non-ferrous, precious, and rare metal minerals, as well as the monomeric gold recovery from polymetallic ores. Applicable minerals include alluvial gold/placer gold, vein gold ore, magnetite, hematite, specularite, tin ore, lead-zinc ore, gold ore, and barite. It can also be used for recovering fine metal minerals from various mine tailings.
【Service】Centrifugal Concentrator design, mineral separation test, mineral processing design, on-site installation or remote installation.

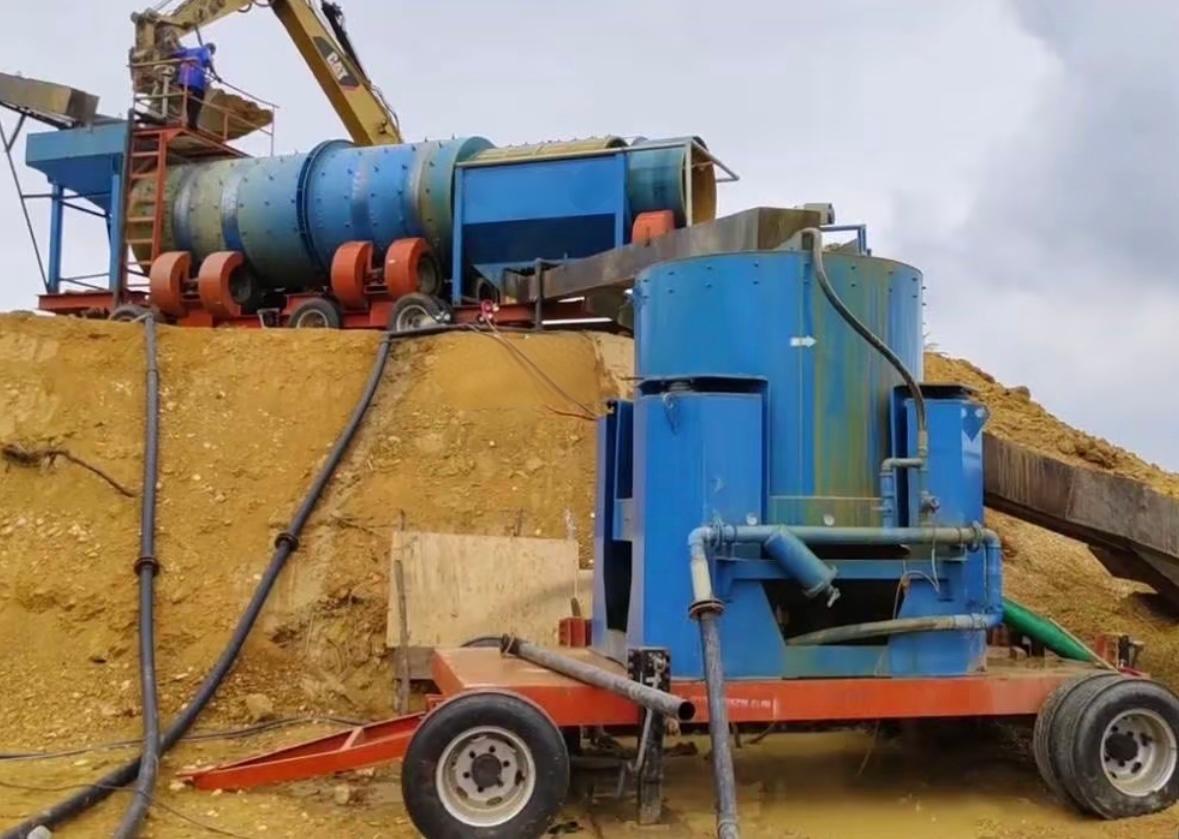

The centrifugal concentrator is a modern gravity-based separation device that uses centrifugal force to separate minerals. It is primarily used for processing gold, silver, lead, and zinc ores by efficiently separating valuable heavy minerals from tailing.
It is energy-efficient, environmentally friendly, and highly automated. This device is widely applied in mining, metallurgy, and chemical industries, especially for gold extraction in small mining operations.
【Capacity】0.1-10T/H
【Feeding Size】0.02-2mm
【Type】 Newly plastic spiral chute, Inner-cover polyurethane spiral chute, Traditional fiberglass spiral chute.
【Application】 Suitable for separating coal, gold ore, platinum, iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, barite, tungsten ore, tin ore, tantalum-niobium ore, mineral sands and other ferrous and non-ferrous metal ores, rare metals, as well as non-metallic minerals with different specific gravities.
【Service】Spiral chute design, mineral separation test, mineral processing design, on-site or remote installation.
The spiral chute is a gravity separation equipment widely used in the beneficiation of fine-grained minerals, such as gold ore, iron ore, chromite, tin ore, platinum, and also non-metallic minerals like coal and sand gold from 0.02-2 mm.
As materials flow down the spiral chute, they separate based on their density due to the combined effects of gravity, centrifugal force, and water flow, allowing for efficient mineral concentration.
【Capacity】 0-2T/H
【Feeding Size】 0.074-2 mm
【Type】Coarse sand (2~0.5mm), fine sand (0.5~0.074mm), slime deck(-0.074mm)
6-s shaking table, RP4 shaking table;
Single-layer shaker and multi-layer shaker;
Industrial shaker table, mini gold shaker table, lab shaker table, portable shaker table.
【Application】The gold shaking table is a highly effective gravity separator designed to separate various precious metals, non-ferrous metals and rare metal ores, including gold, tin, tungsten, lead, manganese, tantalum, and chrome ore, coal, titanium ore, etc.,.
【Service】Shaking table design, mineral separation test, mineral processing design, on-site installation or remote installation.
The shaking tables, also known as gold shakers or gold separation tables, are vital tools for fine gold recovery in gold shaker wash plants and alluvial gold mining operations. These tables effectively separate concentrates, medium concentrates, and tailing based on material density and grain size,known for its efficiency, simplicity, and environmentally friendly nature.
The Gold shaking table is a widely used gravity separation equipment, mainly applied in the concentration of gold, silver, tungsten, tin, niobium, tantalum, and other metallic ores. It works by using the combined action of gravity, friction, and water flow to separate minerals based on their density, achieving a layered effect and sorting them along different paths.
The 6-S shaking table is an indispensable piece of gravity separation equipment in the mining industry, known for its efficiency, simplicity, and environmentally friendly nature.
Our gold mining shaking tables can be used independently or integrated with other ore dressing equipment, including jig machine, centrifugal concentrator, sluice box, flotation equipment, magnetic drum separators, and spiral classifiers. Enhance your gold recovery process by utilizing our versatile shaking tables today!
