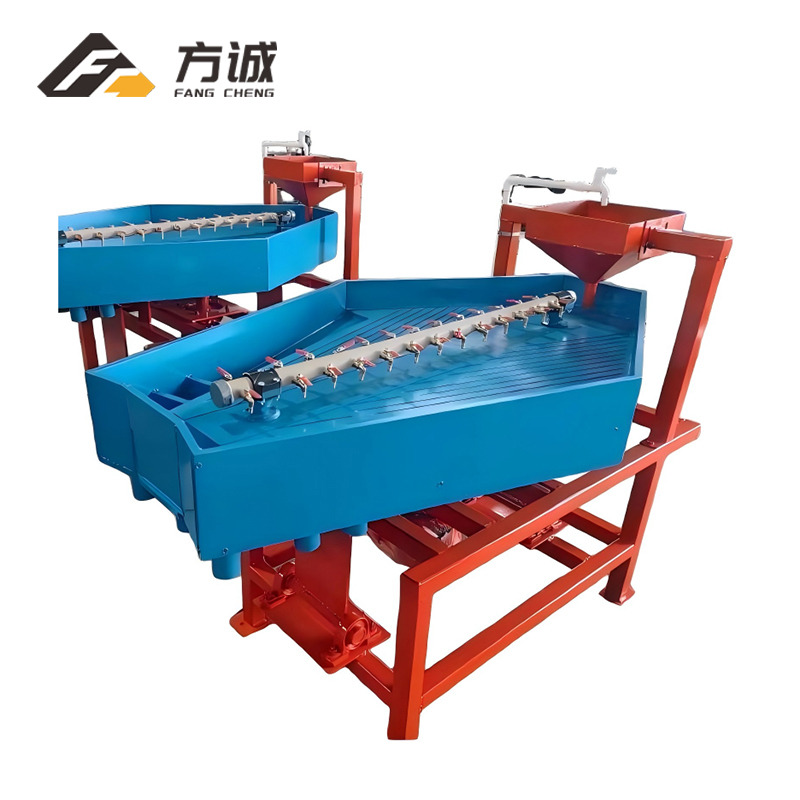

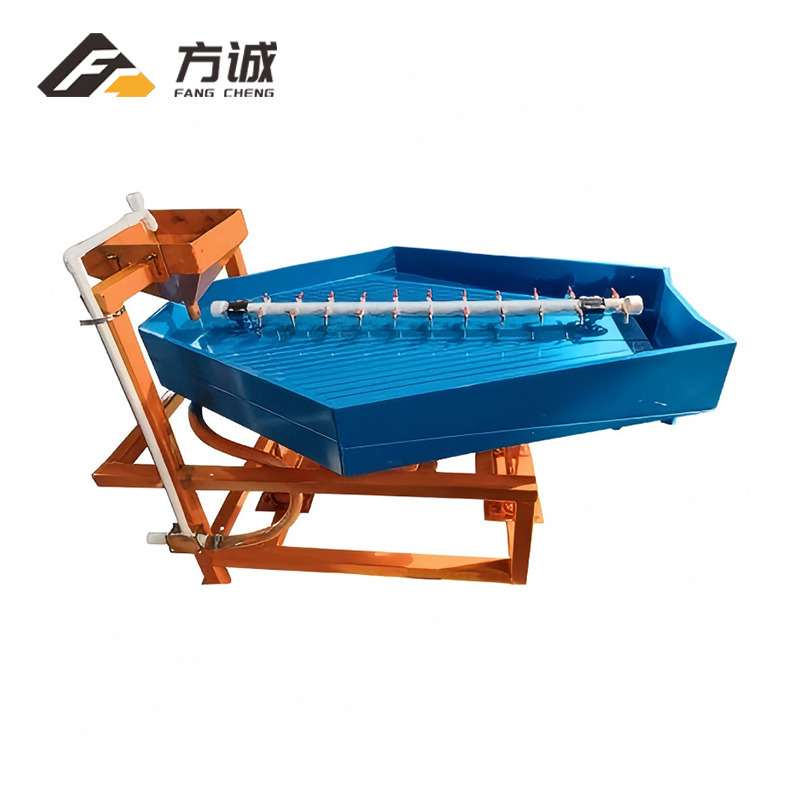

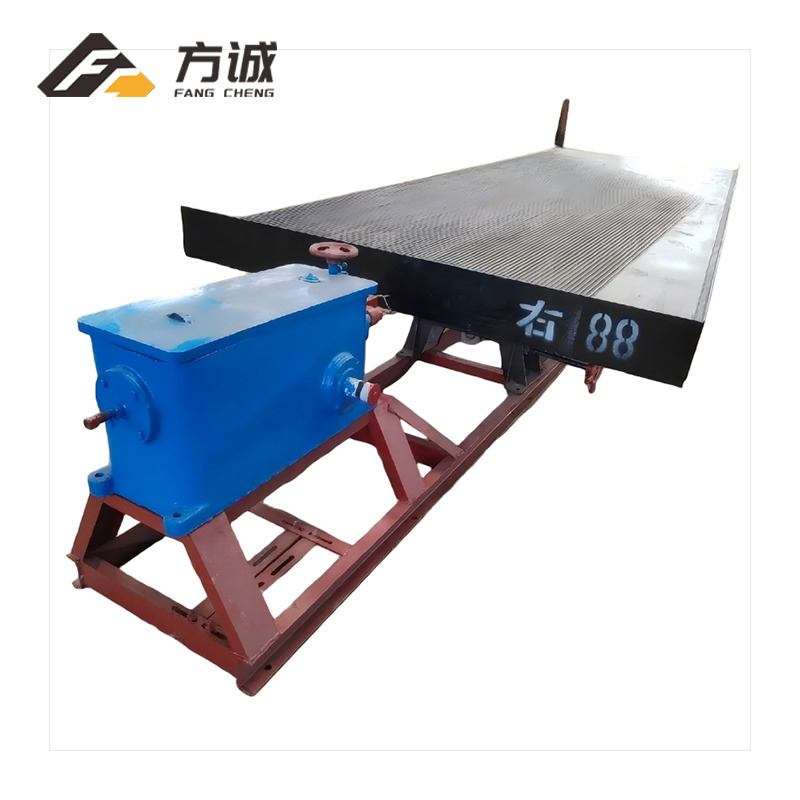

High-Precision 6S Shaking Table for Gold Recovery

Work Principle

The primary operational principle of the shaking table relies on the fundamental differences in specific gravity among various mineral particles. By combining an asymmetrical reciprocating motion with the dynamics of a thin film of flowing water, the equipment achieves precise gravity-based separation. This mechanical process ensures that minerals of varying densities are effectively stratified and directed to their respective discharge points.

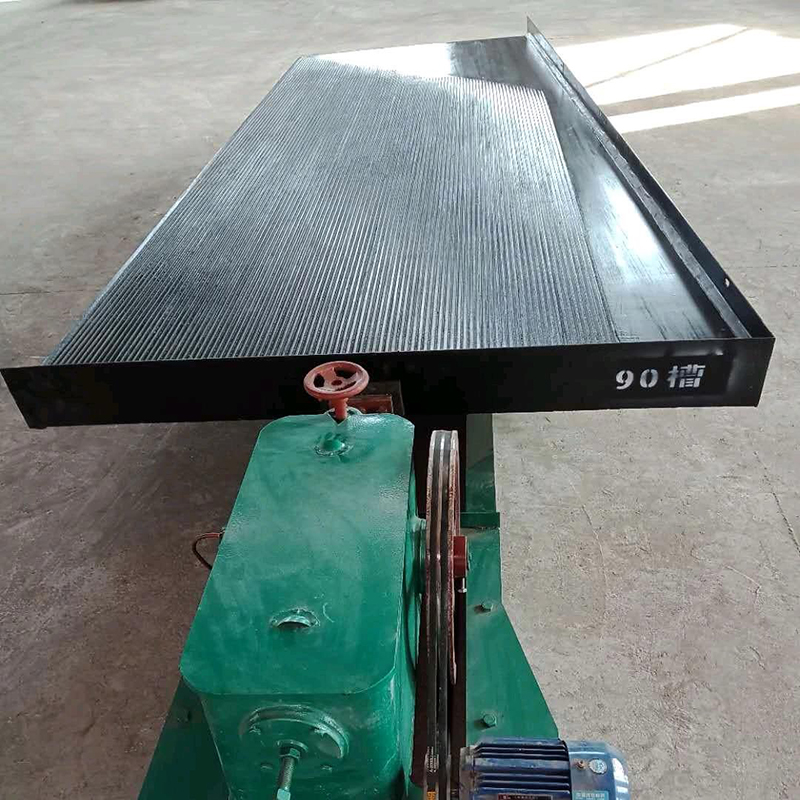

Initial Slurry Feeding and Bed Stratification

The separation process begins at the upper corner of the shaking table, where the mineral slurry is introduced into the feed trough. Simultaneously, transverse wash water is supplied from the adjacent water trough, creating a continuous, shallow cross-flow across the deck surface. As the slurry flows onto the working surface, the combination of the water flow and the mechanical vibration causes the mineral bed to loosen. This loosening effect is critical for stratification, as it allows the particles to arrange themselves vertically based on their specific gravity and size. Heavier particles settle toward the bottom of the slurry layer, coming into direct contact with the deck and riffles, while lighter particles remain suspended in the upper layer of the water flow.

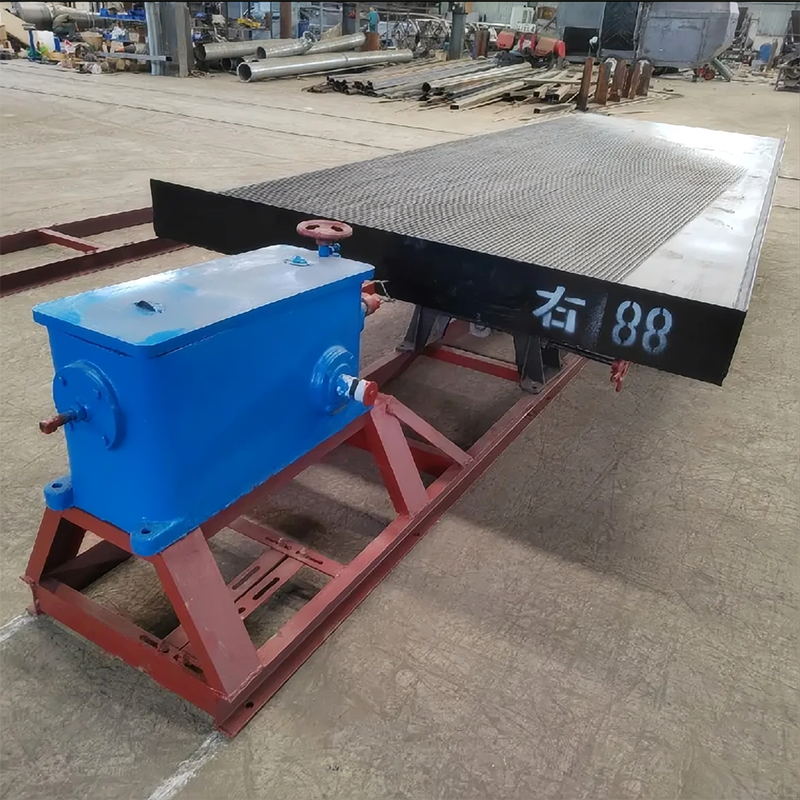

The Mechanics of Asymmetrical Reciprocating Motion

The core driving force behind the longitudinal movement of the minerals is the asymmetrical reciprocating motion generated by the motor mechanism. This motion is characterized by a slow forward stroke followed by a rapid return stroke. During the slow forward movement, the heavier mineral particles resting on the deck are carried forward by friction. When the deck rapidly reverses direction, the inertia of these heavy particles causes them to continue moving forward along the longitudinal axis of the table. This differential motion effectively propels the high-density minerals toward the drive end's opposite side, guiding them along the riffles toward the concentrate zone.

Hydrodynamic Action and Particle Segregation

While the asymmetrical motion drives heavy particles longitudinally, the transverse wash water exerts a hydraulic force that acts perpendicular to this movement. Mineral particles in the upper layer of the stratified bed—primarily lighter, lower-density materials—experience less friction from the deck and are more heavily influenced by the cross-flowing water. As a result, these lighter particles are washed downward along the transverse inclination of the table. The interplay between the longitudinal mechanical propulsion and the transverse hydraulic washing creates a distinct sorting environment. Each particle's trajectory is determined by the specific balance of water flow pressure and deck friction it experiences, leading to a highly organized segregation of minerals.

Fan-Shaped Distribution and Final Discharge

Due to the combined effects of the continuous water flow impact and the table's directional vibration, the minerals spread out across the deck in a distinct fan-shaped distribution. The heaviest particles with the smallest volume travel the furthest longitudinally, forming the concentrate band. Particles with intermediate densities and sizes form the middlings band, while the lightest particles are quickly washed downslope to form the tailings band. Ultimately, these distinctly separated materials reach the edge of the deck and are discharged through their respective outlets—the concentrate trough, the middlings collection area, and the tailings trough. This continuous, physically driven process ensures efficient mineral separation based solely on physical properties.

Advantages

The High-Precision 6S Shaking Table is designed to deliver reliable value in mineral processing operations. By focusing on recovery efficiency, operational stability, and environmental compliance, this equipment helps mining facilities optimize their production workflows while keeping overhead costs manageable.

• High Separation Accuracy for Fine Particles:
  Achieving maximum recovery is critical in gold and heavy mineral processing. The 6S shaking table is specifically engineered to provide extremely high separation accuracy, making it highly effective for capturing fine and ultra-fine mineral particles that might otherwise be lost in tailings. This precision ensures a higher grade of final concentrate, directly improving the profitability of your mineral recovery projects without requiring complex secondary processing steps.

• Low Energy Consumption and Reduced Operating Costs:
  Energy expenses represent a significant portion of ongoing mineral processing costs. This shaking table operates with highly efficient power requirements, significantly reducing daily electricity consumption compared to other mechanical separation methods. The optimized transmission mechanism ensures stable continuous operation with minimal power draw, helping facility managers maintain a lean operational budget and improve overall cost-efficiency.

• Simple Structure and Easy Operation:
  Designed with practicality in mind, the equipment features a straightforward mechanical structure that simplifies both installation and routine maintenance. The intuitive adjustment mechanisms allow operators to easily control variables such as deck inclination and water flow with minimal specialized training. This user-friendly design reduces potential downtime, minimizes the need for specialized maintenance crews, and ensures that the separation process remains consistent.

• Environmentally Friendly Physical Separation:
  As environmental regulations become increasingly stringent globally, sustainable mining practices are essential. The 6S shaking table utilizes a purely physical gravity separation process, relying entirely on water as the separating medium. It requires absolutely no chemical agents, reagents, or toxic substances. This not only eliminates the risk of chemical pollution but also drastically reduces the costs and complexities associated with hazardous wastewater treatment and environmental compliance.

• Cost-Effective Solution for All Operation Scales:
  Balancing initial capital investment with long-term reliability is crucial for any mining operation. Compared to more complex or heavily automated mineral processing equipment, the 6S shaking table offers a highly affordable entry point while maintaining industrial-grade durability. Its strong return on investment makes it a versatile choice, perfectly suited for both small-scale independent mining setups and large-scale commercial mineral processing plants looking to expand their recovery lines economically.

Parameters

The technical specifications below outline the core parameters for the 6-S Shaking Table series, including the 6-S 7.6, 6-S 4.08, 6-S 1.95, and 6-S 0.5 models. These parameters—such as beneficiation area, maximum feeding size, processing capacity, and stroke frequency—are critical for matching the equipment to your specific mineral processing volume and feed particle characteristics. Please refer to this data to select the most appropriate deck type and model for your recovery requirements.

Selection Guidance: The actual processing capacity and water consumption may fluctuate depending on the specific gravity of the ore and the operational feeding conditions. For optimal recovery rates and operational stability, please ensure that the feeding size and feeding density strictly align with the recommended specifications for your selected deck type.

Successful Cases

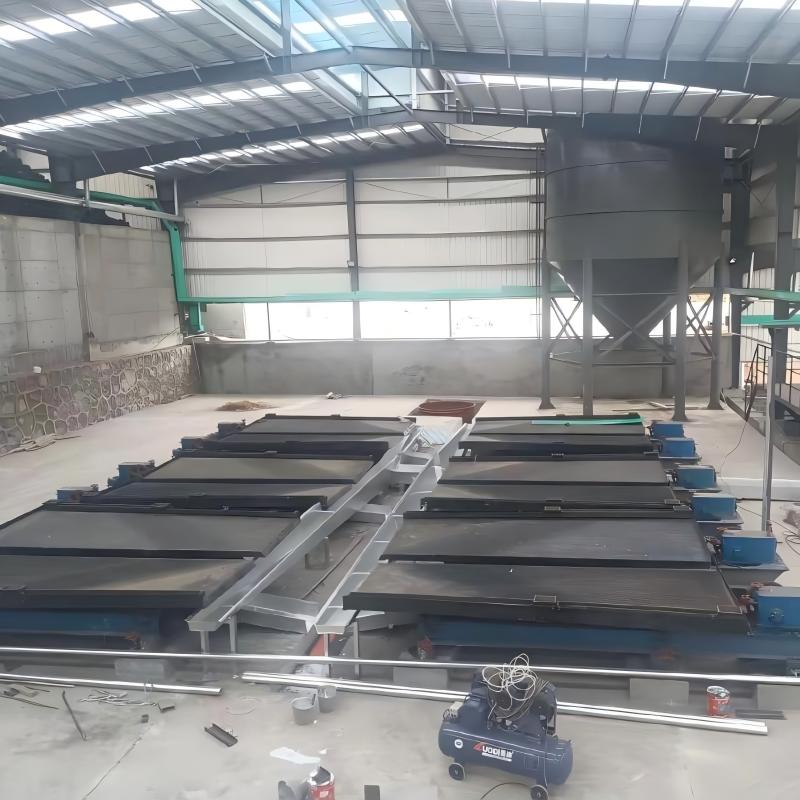

The High-Precision 6S Shaking Table has been widely deployed in numerous mineral processing projects worldwide, demonstrating reliable performance and adaptability in gravity separation operations. It is suitable for recovering a diverse range of valuable minerals, including rock gold, alluvial gold, chromite, tin, copper oxide, tantalum-niobium, lithium, kaolin, lead-zinc, manganese, and hematite.

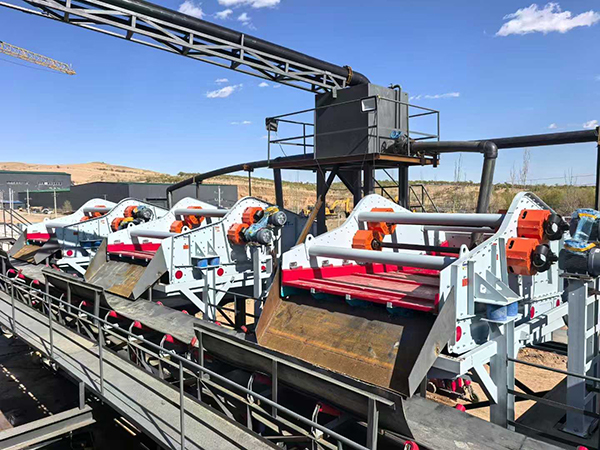

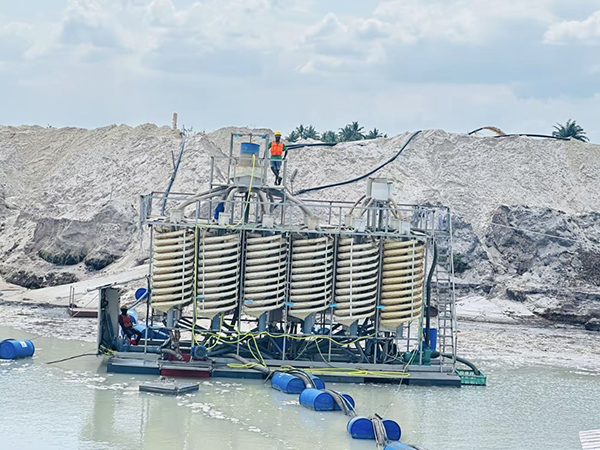

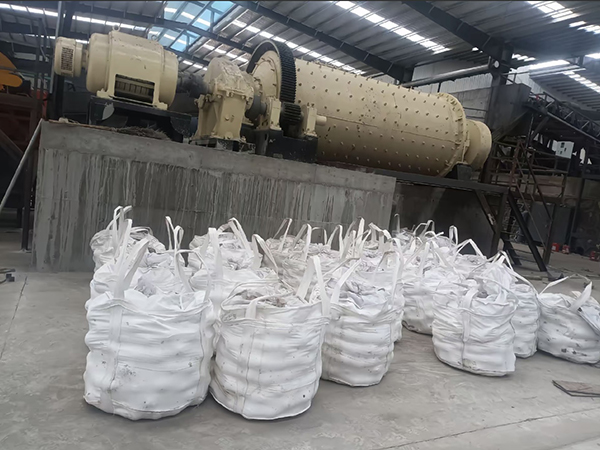

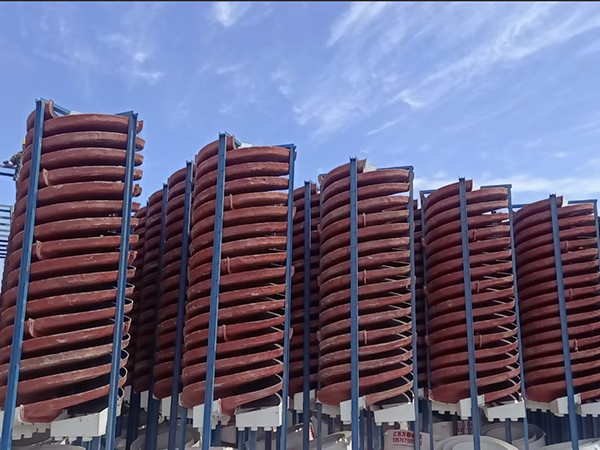

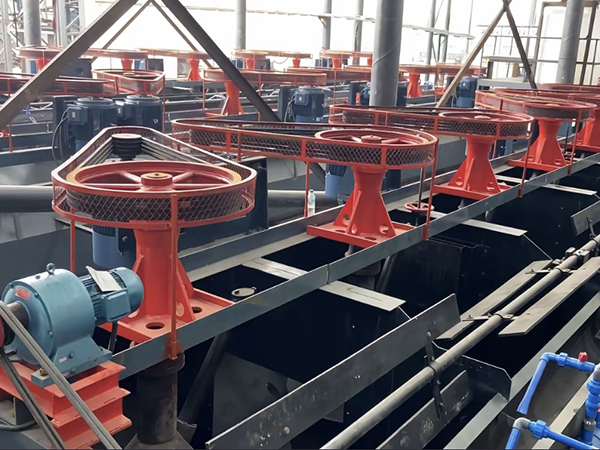

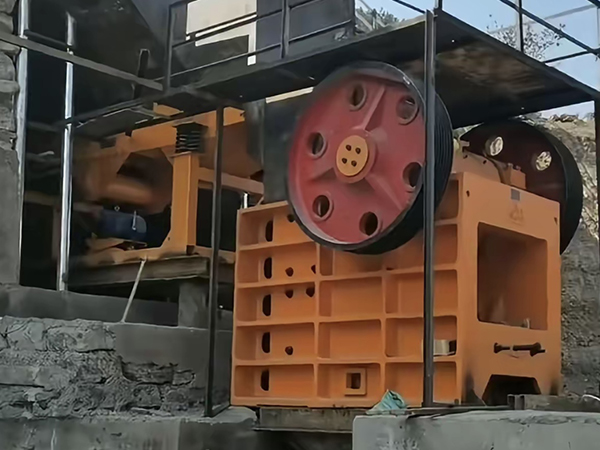

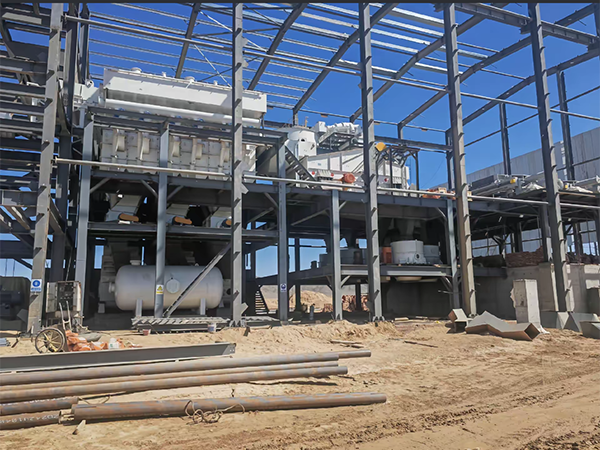

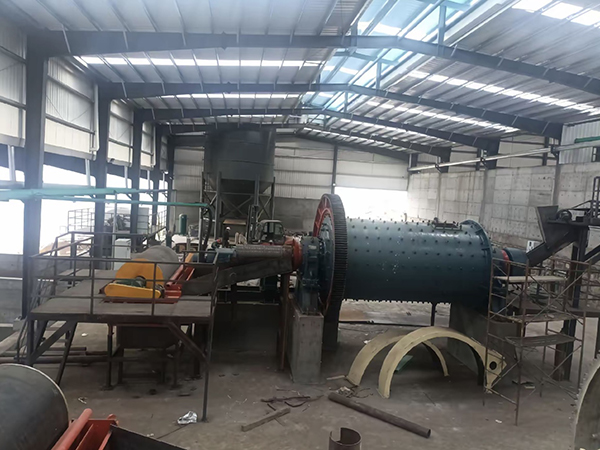

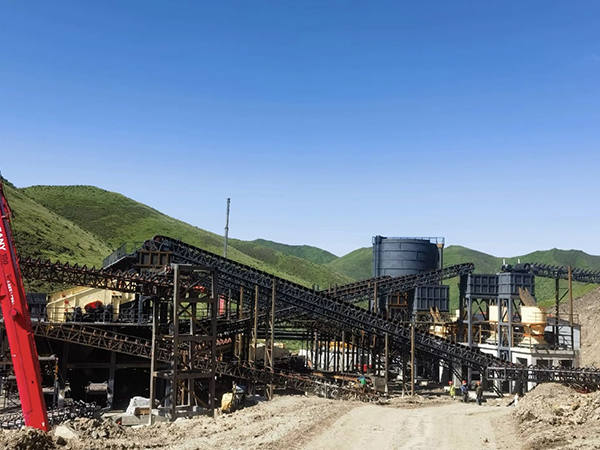

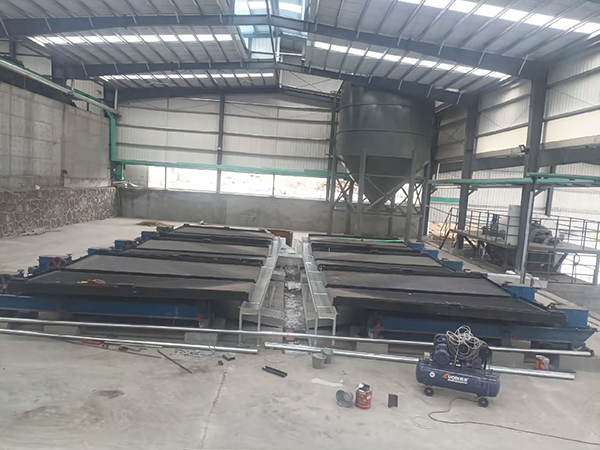

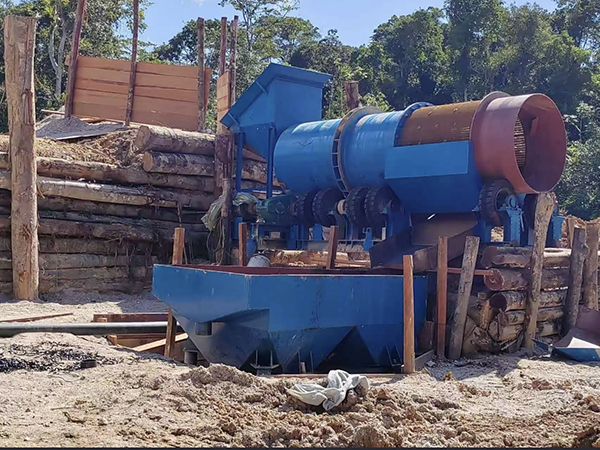

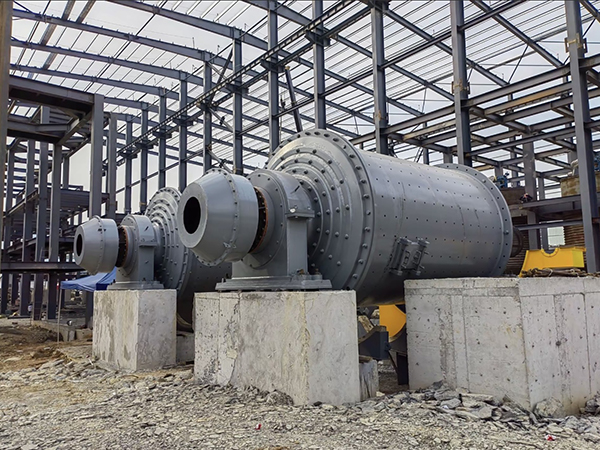

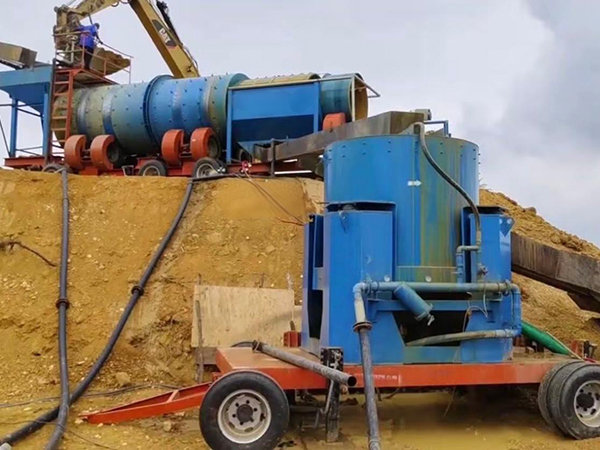

The following gallery showcases our successful on-site installations across Africa, South America, Asia, and Europe. These practical application cases reflect our extensive global project experience and the proven capability of our gravity separation equipment to support various processing requirements and operating environments.

FAQ

Q: What particle size range is most suitable for processing with a shaking table?
A: The shaking table is highly effective for processing minerals with a feed particle size ranging from 0.02mm to 2mm. Specifically, the 6-S shaking table is engineered to effectively recover ultra-fine gold particles down to 0.01mm. For optimal recovery of materials finer than this threshold, we recommend combining the shaking table with a centrifugal concentrator to ensure maximum yield and minimize valuable mineral loss during the gravity separation process.

Q: How can operators adjust the shaking table to achieve a higher concentrate grade?
A: Achieving optimal separation requires precise tuning based on your specific ore characteristics and production requirements. Follow these four professional steps to optimize performance:
① Adjust the Stroke: Set the stroke length between 8mm and 25mm depending on the feed size (use shorter strokes for finer particles and longer strokes for coarser feeds).
② Control Water Flow: Maintain a steady wash water flow rate of 1 to 2.5m³/h to ensure proper stratification of heavy and light minerals along the riffles.
③ Maintain Deck Slope: Keep the lateral tilt angle between 2° and 5° to balance the movement of the concentrate band and prevent valuable minerals from washing into the tailings.
④ Inspect Deck Condition: Regularly check the fiberglass deck and riffle profiles for wear to maintain consistent friction and high separation efficiency.

Q: How do I choose between a shaking table and a spiral chute for gravity separation?
A: The choice depends entirely on your ore value, processing stage, and volume requirements. Shaking tables provide a significantly higher concentration ratio, typically delivering a 5-8% higher recovery rate for high-value ores such as gold, tungsten, and tin. They are the ideal equipment for the final cleaning stage to produce high-grade concentrates. Conversely, spiral chutes are better suited for roughing stages where you need to process high-volume, low-grade ores quickly, as they offer a larger continuous processing capacity but lower final precision compared to shaking tables.
