【Capacity】 20–1200 T/H
【Feeding Size】＜1000mm
【Types】vibrating feeders, grizzly feeders, electromagnetic feeders, trough feeders, and apron feeders.
【Applicable Materials】Mineral ore, coal, aggregate, concrete, artificial sand, quartz sand, and more.
Fangcheng’s Vibratory Feeder is designed to feed material into crushing machinery continuously and evenly by useing vibration and gravity.
This feeder relies on gravity to direct materials (either downward or sideways), while vibration ensures a smooth, consistent flow.
Widely used in metallurgy, coal mine, mineral processing, building materials, chemical industry and other industries, our vibrating feeders ensure reliable, efficient material handling and are designed for durability and high throughput.
【Capacity】30-400 T/H
【Feeding Size】＜300mm
【Screen material】PU, manganese, or stainless steel, 1 layer, 2 layers.
【Types】Fixed type and portable type
【Application】Suitable for effectively washing and sieving ore material which contains sticky clay and mud, and prevents clogging in Gold dredger, quartz mine, limonite ore, nonferrous ore, construction use sand and gravel washing, etc.
【Service】Trommel Scrubber design, mineral separation test, mineral processing process design, on-site installation or remote installation.
The trommel scrubber, commonly referred to as a rotary screen ore washer or cylinder screen washer, is a versatile piece of hydraulic equipment designed for cleaning soil and sticky mud. This innovative machine performs dual functions: it effectively cleans raw materials while also screening them by particle size. The trommel scrubber not only provides preliminary cleaning of materials but also efficiently sieves them, enhancing the overall processing of gold recovery operations.
【Capacity】 10-1000m³/h
【Head】 6-120m
【Type】 JZ, AH(R), HH, M(R)
【Application】The slurry pump is a type of equipment used to transport liquids containing solid particles, widely applied across multiple industrial fields. In the mining sector, slurry pumps are primarily used for two purposes:
Mineral Slurry Transportation – After ore is mined, it is mixed with water to form slurry. Slurry pumps transfer this ore slurry from the mining site to the processing plant. This is essential in metal mining operations such as copper, gold, and other mineral ores.
Tailings Disposal – Slurry pumps are also used to transport tailings slurry to tailings storage facilities, enabling efficient discharge and treatment of mine tailings.
【Service】Slurry Pump design, mineral separation test, mineral processing design, on-site installation or remote installation.
【Capacity】0.1-10T/H
【Feeding Size】0.02-2mm
【Type】 Newly plastic spiral chute, Inner-cover polyurethane spiral chute, Traditional fiberglass spiral chute.
【Application】 Suitable for separating coal, gold ore, platinum, iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, barite, tungsten ore, tin ore, tantalum-niobium ore, mineral sands and other ferrous and non-ferrous metal ores, rare metals, as well as non-metallic minerals with different specific gravities.
【Service】Spiral chute design, mineral separation test, mineral processing design, on-site or remote installation.

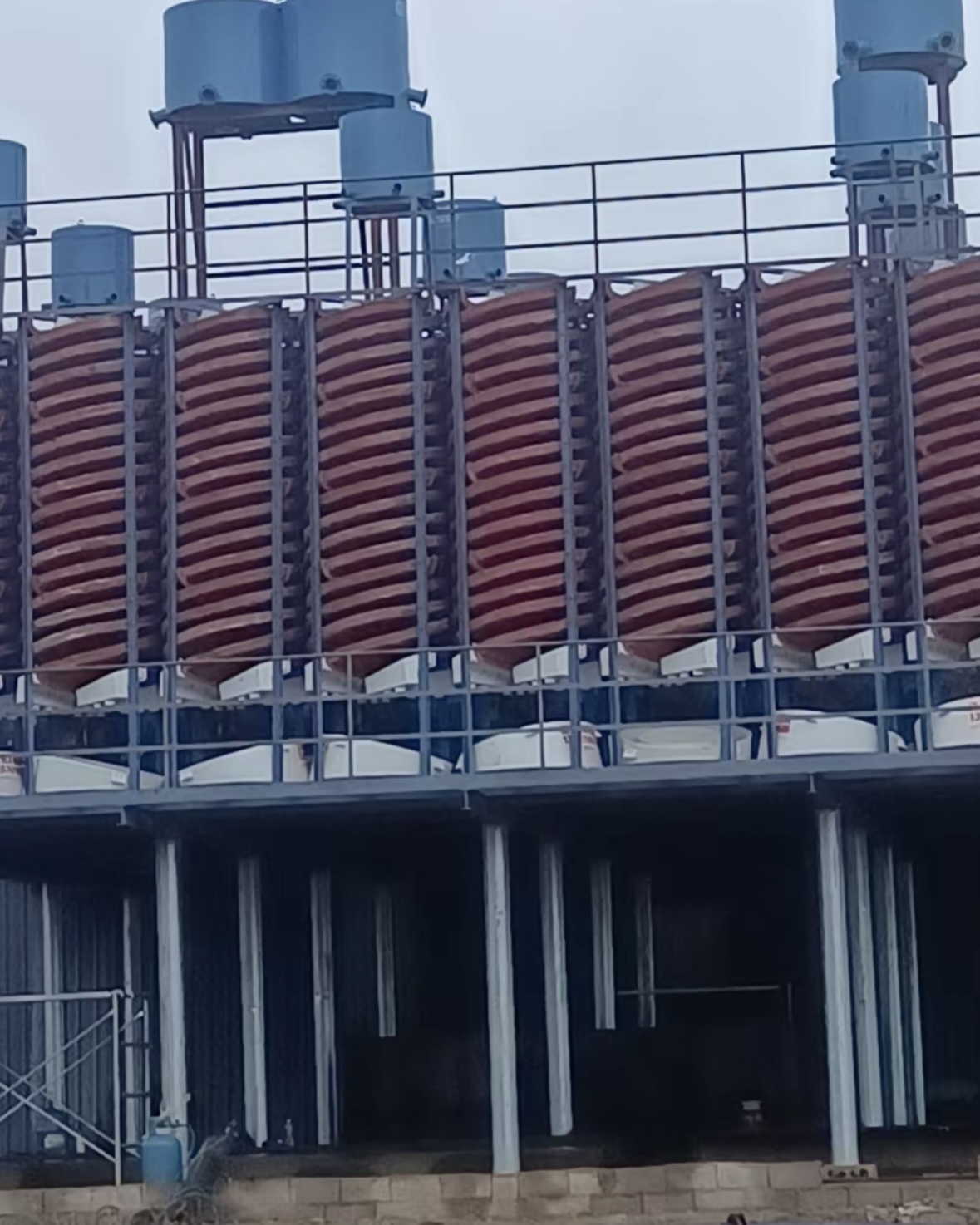

The spiral chute is a gravity separation equipment widely used in the beneficiation of fine-grained minerals, such as gold ore, iron ore, chromite, tin ore, platinum, and also non-metallic minerals like coal and sand gold from 0.02-2 mm.
As materials flow down the spiral chute, they separate based on their density due to the combined effects of gravity, centrifugal force, and water flow, allowing for efficient mineral concentration.
