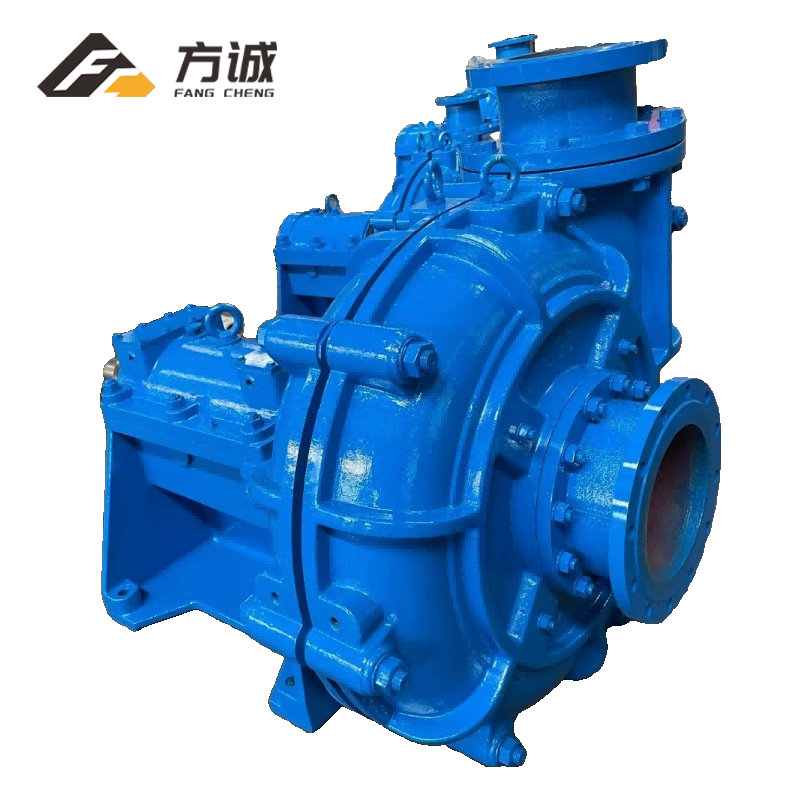

Heavy-Duty Slurry Pump for Mining Transfer


Availability:

Quantity:



Inquire Add to Basket

【Capacity】 10-1000m³/h
【Head】 6-120m
【Type】 JZ, AH(R), HH, M(R)
【Application】The slurry pump is a type of equipment used to transport liquids containing solid particles, widely applied across multiple industrial fields. In the mining sector, slurry pumps are primarily used for two purposes:
Mineral Slurry Transportation – After ore is mined, it is mixed with water to form slurry. Slurry pumps transfer this ore slurry from the mining site to the processing plant. This is essential in metal mining operations such as copper, gold, and other mineral ores.
Tailings Disposal – Slurry pumps are also used to transport tailings slurry to tailings storage facilities, enabling efficient discharge and treatment of mine tailings.
【Service】Slurry Pump design, mineral separation test, mineral processing design, on-site installation or remote installation.

Heavy duty centrifugal pump Mineral processing pump Horizontal slurry pump supplier Wear resistant slurry pump Slurry transportation system

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Working Principle

The slurry pump is a centrifugal pump specifically designed for transporting liquids containing solid particles, such as ore slurry, coal ash, and tailings. It is widely used in industries including mining, metallurgy, power generation, and chemical processing.
Known for its wear resistance, corrosion resistance, and ability to handle high-density slurries, the slurry pump is often referred to as the “steel heart” of industrial material transportation.

Its core working principle is based on centrifugal force: the impeller rotates at high speed, generating centrifugal force that pushes the slurry outward toward the pump casing. This creates a pressure difference, enabling the continuous delivery of slurry.

Advantages

Wear-Resistant Design: High-chrome alloy impellers combined with rubber or ceramic liners ensure long service life even under highly abrasive conditions.
Sealing Technology: Options include mechanical seals and gland packing to effectively prevent leakage.
Advanced Performance: Certain models support dry running and intelligent monitoring functions.
Smart Protection: Modern pumps are equipped with vibration sensors for real-time fault detection and early warnings, reducing downtime and maintenance costs.

Technical Parameters

Slurry Pump
Model	Max Power(kw)	Capacity Q(m³/h)	Head HC (m）	Particle Max. Feeding Size Occasinally（mm）	Speed n(rpm)	Max Eff	NPSH(m）	Weight(kg)
300ZJ-A100	450	464-1826	15.3-65.2	88	300-590	81.1	3	5265
300ZJ-A95	400	441-1735	13.8-58.8	88	300-590	78.1	3	5220
300ZJ-A90	560	505-1844	21.2-79.9	85	400-730	82.8	3.9	5005
300ZJ-A85	450	477-1742	18.9-71.3	85	400-730	79.8	3.8	4965
300ZJ-A70	630	635-2333	16.0-76.8	92	490-980	80.4	3.9	3560
300ZJ-A65	500	589-2166	13.8-66.2	92	490-980	77.4	3.7	3531
300ZJ-A56	250	395-1568	9.7-46.0	96	400-980	80.9	3.5	3030
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

Rock Gold Mine - South Sudan

Placer Gold Mines - Zimbabwe

Chromite - South Africa

Alluvial Chrome Ore - Zimbabwe

Alluvial Tin Mines - Bolivia

Rock Tin Mines - Indonesia

Copper Oxide - Russia

Tantalum Niobium Ore - Nigeria

Lithium Mines - Brazil

Kaolin Mine - Uganda

Lead Zinc Mine - Morocco

Manganese Ore - Kenya

Hematite - South America

FAQ

Q：What are the main applications of slurry pumps?

A: Slurry pumps are mainly used for mineral slurry transportation and tailings disposal in mining. They are also applied in metallurgy, power plants, and chemical industries for handling abrasive fluids.

Q: What makes your slurry pumps durable?

A: Our pumps use high-chrome alloy impellers with rubber or ceramic liners. This ensures excellent wear resistance, corrosion resistance, and long service life even in highly abrasive conditions.

Q: Can the slurry pump be customized for specific projects

A: Yes, we provide customized solutions including pump design, mineral separation test, process design, and on-site or remote installation services to meet your specific mining requirements.
