【Capacity】 20–1200 T/H
【Feeding Size】＜1000mm
【Types】vibrating feeders, grizzly feeders, electromagnetic feeders, trough feeders, and apron feeders.
【Applicable Materials】Mineral ore, coal, aggregate, concrete, artificial sand, quartz sand, and more.
Fangcheng’s Vibratory Feeder is designed to feed material into crushing machinery continuously and evenly by useing vibration and gravity.
This feeder relies on gravity to direct materials (either downward or sideways), while vibration ensures a smooth, consistent flow.
Widely used in metallurgy, coal mine, mineral processing, building materials, chemical industry and other industries, our vibrating feeders ensure reliable, efficient material handling and are designed for durability and high throughput.
【Capacity】30-400 T/H
【Feeding Size】＜300mm
【Screen material】PU, manganese, or stainless steel, 1 layer, 2 layers.
【Types】Fixed type and portable type
【Application】Suitable for effectively washing and sieving ore material which contains sticky clay and mud, and prevents clogging in Gold dredger, quartz mine, limonite ore, nonferrous ore, construction use sand and gravel washing, etc.
【Service】Trommel Scrubber design, mineral separation test, mineral processing process design, on-site installation or remote installation.
The trommel scrubber, commonly referred to as a rotary screen ore washer or cylinder screen washer, is a versatile piece of hydraulic equipment designed for cleaning soil and sticky mud. This innovative machine performs dual functions: it effectively cleans raw materials while also screening them by particle size. The trommel scrubber not only provides preliminary cleaning of materials but also efficiently sieves them, enhancing the overall processing of gold recovery operations.
【Capacity】2-6T/H
【Feeding Size】0.074-1mm
【Type】ABS spiral chute
【Application】 Suitable for separating coal, gold ore, platinum, iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, barite, tungsten ore, tin ore, tantalum-niobium ore, mineral sands and other ferrous and non-ferrous metal ores, rare metals, as well as non-metallic minerals with different specific gravities.
【Service】Spiral chute design, mineral separation test, mineral processing design, on-site or remote installation.

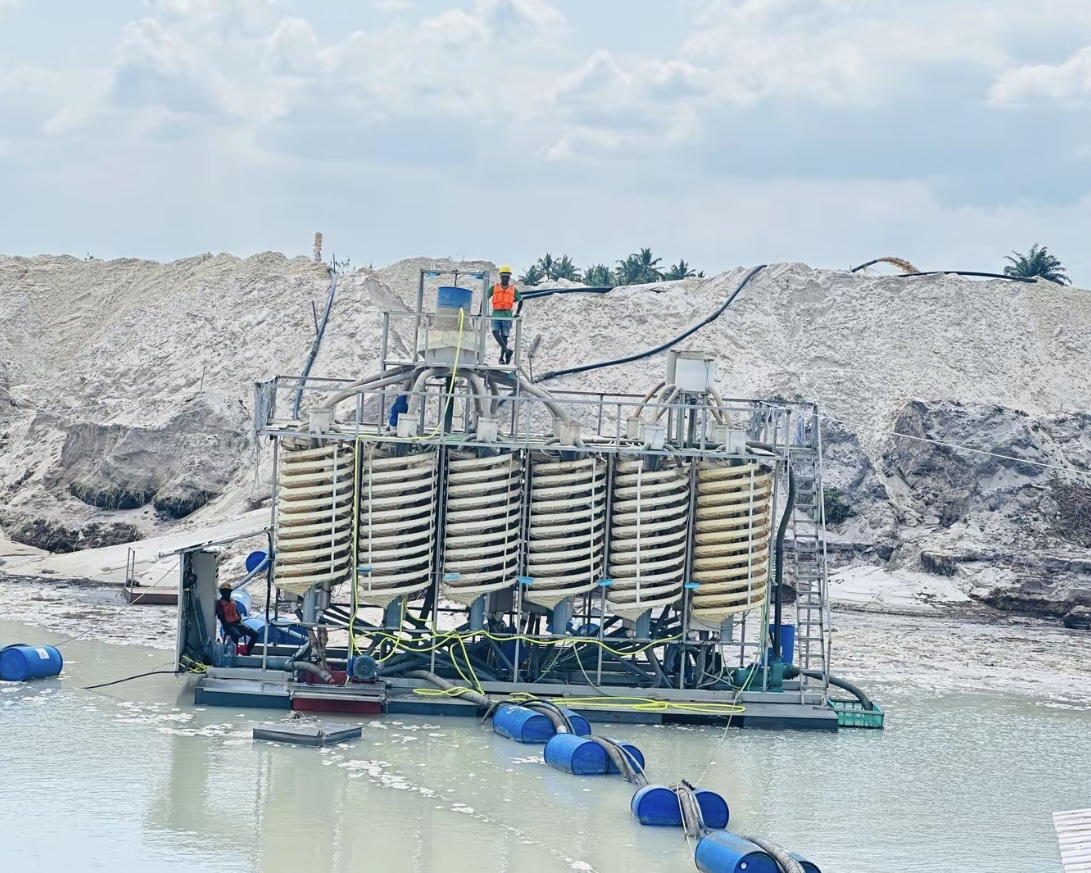

The newly designed modular ABS spiral chute is engineered for efficient gravity separation of fine minerals with significant density differences. It is ideal for processing ores such as iron, titanium, zircon, monazite, rutile, yttrium phosphate, tungsten-tin, and tantalum-niobium, with particle sizes ranging from 0.074 mm to 1 mm. After grinding the raw ore to 10–200 mesh, separation can be performed directly without any chemical reagents, making the process eco-friendly and energy-saving. The chute is easy to operate and well-suited for environmentally conscious mineral processing applications.
【Capacity】 0-2T/H
【Feeding Size】 0.074-2 mm
【Type】Coarse sand (2~0.5mm), fine sand (0.5~0.074mm), slime deck(-0.074mm)
6-s shaking table, RP4 shaking table;
Single-layer shaker and multi-layer shaker;
Industrial shaker table, mini gold shaker table, lab shaker table, portable shaker table.
【Application】The gold shaking table is a highly effective gravity separator designed to separate various precious metals, non-ferrous metals and rare metal ores, including gold, tin, tungsten, lead, manganese, tantalum, and chrome ore, coal, titanium ore, etc.,.
【Service】Shaking table design, mineral separation test, mineral processing design, on-site installation or remote installation.
The shaking tables, also known as gold shakers or gold separation tables, are vital tools for fine gold recovery in gold shaker wash plants and alluvial gold mining operations. These tables effectively separate concentrates, medium concentrates, and tailing based on material density and grain size,known for its efficiency, simplicity, and environmentally friendly nature.
The Gold shaking table is a widely used gravity separation equipment, mainly applied in the concentration of gold, silver, tungsten, tin, niobium, tantalum, and other metallic ores. It works by using the combined action of gravity, friction, and water flow to separate minerals based on their density, achieving a layered effect and sorting them along different paths.
The 6-S shaking table is an indispensable piece of gravity separation equipment in the mining industry, known for its efficiency, simplicity, and environmentally friendly nature.
Our gold mining shaking tables can be used independently or integrated with other ore dressing equipment, including jig machine, centrifugal concentrator, sluice box, flotation equipment, magnetic drum separators, and spiral classifiers. Enhance your gold recovery process by utilizing our versatile shaking tables today!
