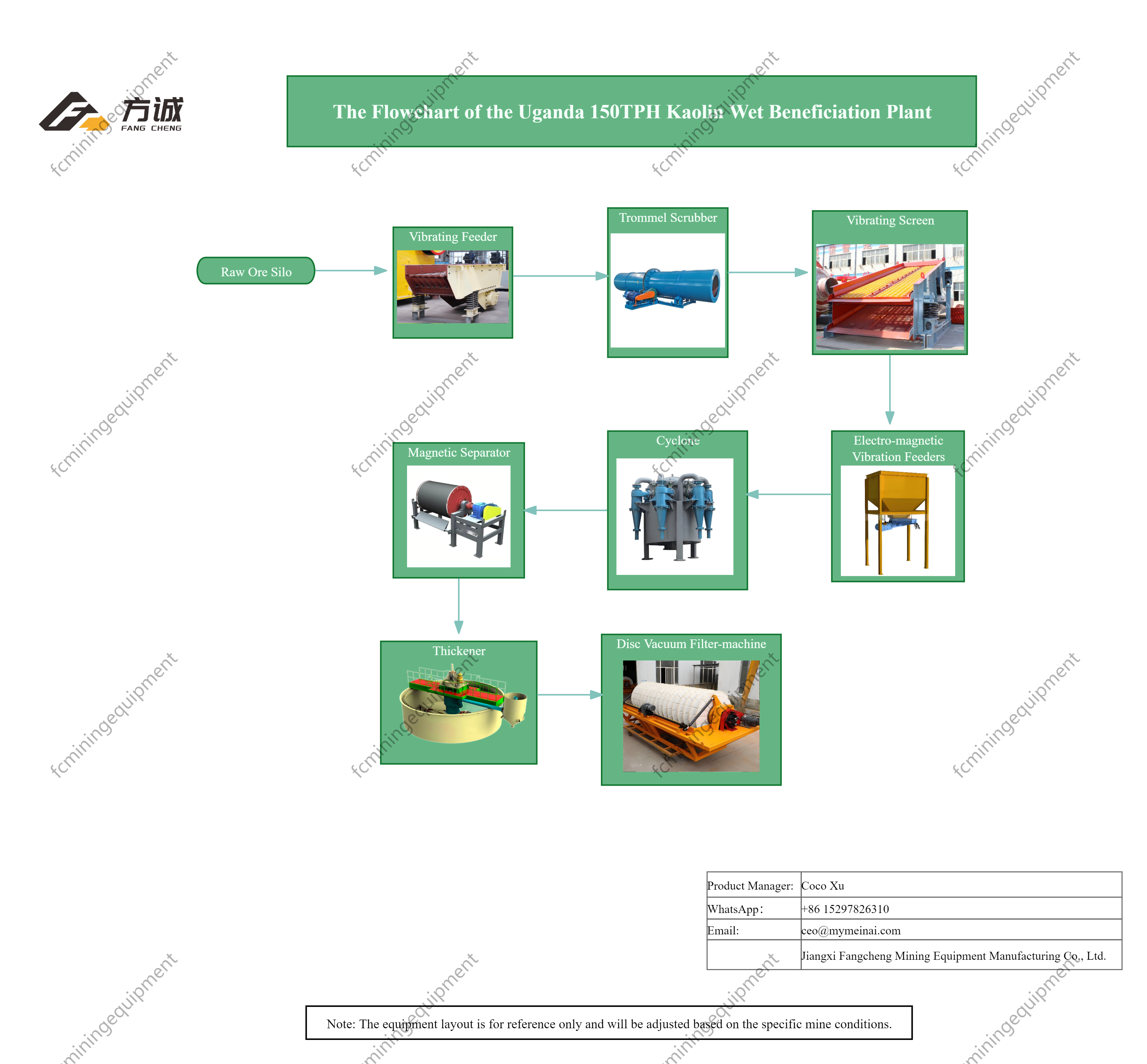

UGANDA 150TPH KAOLIN WET BENEFICIATION PLANT

【Capacity】 20–1200 T/H
【Feeding Size】＜1000mm
【Types】vibrating feeders, grizzly feeders, electromagnetic feeders, trough feeders, and apron feeders.
【Applicable Materials】Mineral ore, coal, aggregate, concrete, artificial sand, quartz sand, and more.

Fangcheng’s Vibratory Feeder is designed to feed material into crushing machinery continuously and evenly by useing vibration and gravity.
This feeder relies on gravity to direct materials (either downward or sideways), while vibration ensures a smooth, consistent flow.
Widely used in metallurgy, coal mine, mineral processing, building materials, chemical industry and other industries, our vibrating feeders ensure reliable, efficient material handling and are designed for durability and high throughput.

【Capacity】30-400 T/H
【Feeding Size】＜300mm
【Screen material】PU, manganese, or stainless steel, 1 layer, 2 layers.
【Types】Fixed type and portable type
【Application】Suitable for effectively washing and sieving ore material which contains sticky clay and mud, and prevents clogging in Gold dredger, quartz mine, limonite ore, nonferrous ore, construction use sand and gravel washing, etc.
【Service】Trommel Scrubber design, mineral separation test, mineral processing process design, on-site installation or remote installation.
The trommel scrubber, commonly referred to as a rotary screen ore washer or cylinder screen washer, is a versatile piece of hydraulic equipment designed for cleaning soil and sticky mud. This innovative machine performs dual functions: it effectively cleans raw materials while also screening them by particle size. The trommel scrubber not only provides preliminary cleaning of materials but also efficiently sieves them, enhancing the overall processing of gold recovery operations.

【Capacity】1-900m³ /h
【Feeding Size】0.3-18mm
【Classification Size】5-350μm
【Type】Pressure type and gravity type
【Application】The hydrocyclone serves as a highly efficient and versatile separation device widely employed in various mineral processing applications. It is particularly suitable for metallic ores including gold, chrome, tin, coltan (tantalite), and diamond, where it effectively removes coarse heavy mud and performs slurry dewatering. In non-metallic mineral processing, it achieves precise classification and concentration of kaolin, bentonite, and feldspar. The equipment also plays a vital role in chemical mineral operations such as phosphate, pyrite, and potash processing for separation and dewatering purposes. Featuring adjustable underflow density (40-70%), excellent desliming efficiency (>90%), outstanding wear resistance, and extended service life (5-8 years), the hydrocyclone can meet diverse specialized requirements in mineral processing.
【Service】Hydrocyclone design, mineral separation test, mineral processing process design, on-site installation or remote installation.

【Outer diameter of rotary ring】500-6500mm
【Feeding Size】＜1.3mm
【Capacity】0.03-1100 TPH
【Magnetic Intensity】0.4-2T
【Application】The Vertical Ring High Gradient Magnetic Separator(HGMS/WHIMS is a high-efficiency solution designed for processing weakly magnetic minerals, ideal for wet separation of fine-grained ores (hematite, limonite, siderite), ilmenite, wolframite, and manganese ore, including wolframite-scheelite and wolframite-cassiterite separation. It also excels in iron removal from non-metallic minerals like quartz, feldspar, nepheline, and kaolin to enhance product whiteness and purity. The equipment demonstrates outstanding performance in industrial wastewater treatment for petroleum, chemical, metallurgical, and mining sectors, effectively removing magnetic suspensions and recovering metal components.
【Service】HGMS/WHIMS design, mineral separation test, mineral processing design, on-site installation or remote installation.
