【Capacity】0.3-150T/H
【Feeding Size】＜25mm
【Type】Overflow ball mills, grate discharge ball mills; Wet/dry milling.
【Application】The ball mill is designed to be used in various powder-making production lines, including cement, silicate, new-type building materials, refractory materials, fertilizers, and the ore dressing of both ferrous and non-ferrous metals.
【Service】Ball Mill design, mineral separation test, mineral processing design, on-site installation or remote installation.

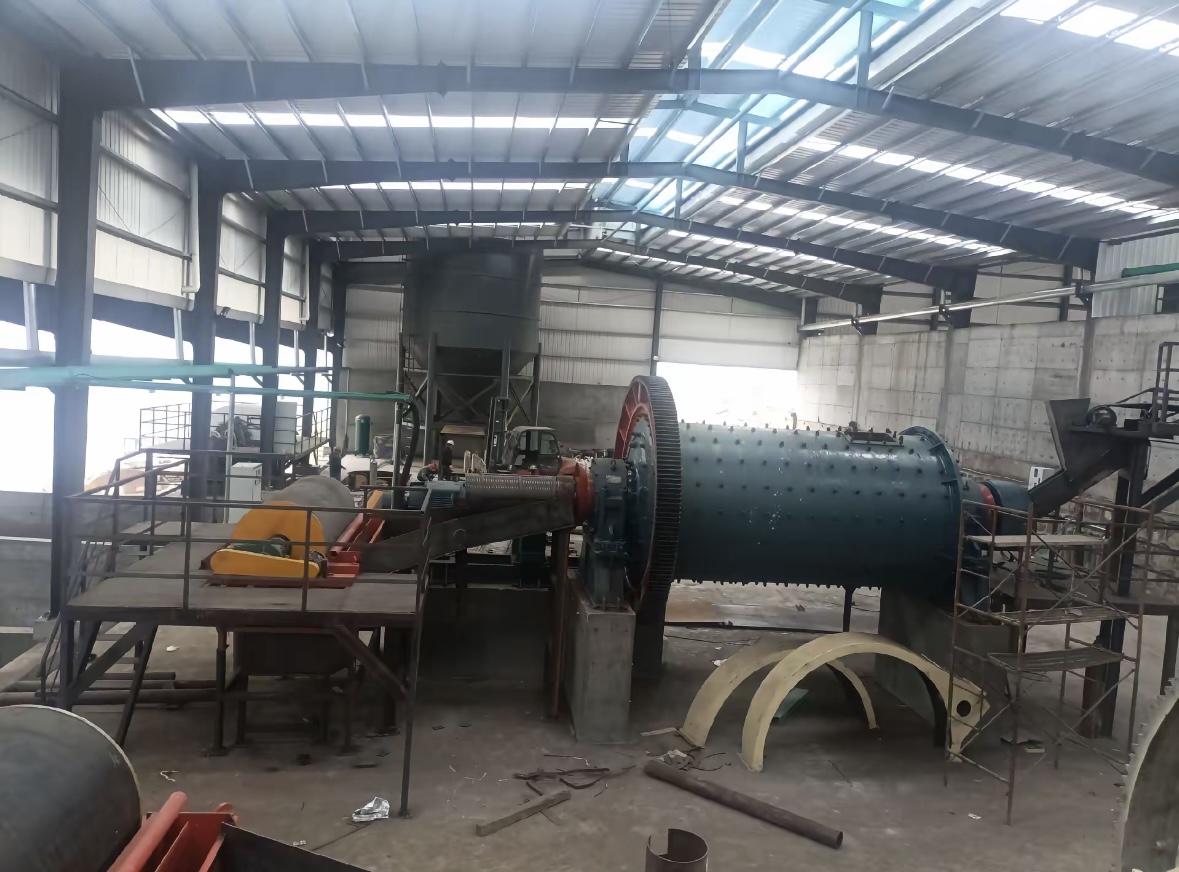

The ball mill, also known as ball grinding machine or ore grinding machine, which is a crucial piece of equipment used to grind crushed materials into fine powders. It is widely utilized in various powder-making production lines, including cement, silicate, new-type building materials, refractory materials, fertilizers, and the ore dressing of both ferrous and non-ferrous metals.
Additionally, ball mills are instrumental in the production of glass ceramics and other materials. Discover how our high-quality ball mills can enhance your grinding processes today!
【Capacity】 10-1000m³/h
【Head】 6-120m
【Type】 JZ, AH(R), HH, M(R)
【Application】The slurry pump is a type of equipment used to transport liquids containing solid particles, widely applied across multiple industrial fields. In the mining sector, slurry pumps are primarily used for two purposes:
Mineral Slurry Transportation – After ore is mined, it is mixed with water to form slurry. Slurry pumps transfer this ore slurry from the mining site to the processing plant. This is essential in metal mining operations such as copper, gold, and other mineral ores.
Tailings Disposal – Slurry pumps are also used to transport tailings slurry to tailings storage facilities, enabling efficient discharge and treatment of mine tailings.
【Service】Slurry Pump design, mineral separation test, mineral processing design, on-site installation or remote installation.
【Capacity】2-6T/H
【Feeding Size】0.074-1mm
【Type】ABS spiral chute
【Application】 Suitable for separating coal, gold ore, platinum, iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, barite, tungsten ore, tin ore, tantalum-niobium ore, mineral sands and other ferrous and non-ferrous metal ores, rare metals, as well as non-metallic minerals with different specific gravities.
【Service】Spiral chute design, mineral separation test, mineral processing design, on-site or remote installation.
The newly designed modular ABS spiral chute is engineered for efficient gravity separation of fine minerals with significant density differences. It is ideal for processing ores such as iron, titanium, zircon, monazite, rutile, yttrium phosphate, tungsten-tin, and tantalum-niobium, with particle sizes ranging from 0.074 mm to 1 mm. After grinding the raw ore to 10–200 mesh, separation can be performed directly without any chemical reagents, making the process eco-friendly and energy-saving. The chute is easy to operate and well-suited for environmentally conscious mineral processing applications.
