High-Capacity Industrial Ball Mill for Ore Grinding & Mineral Processing

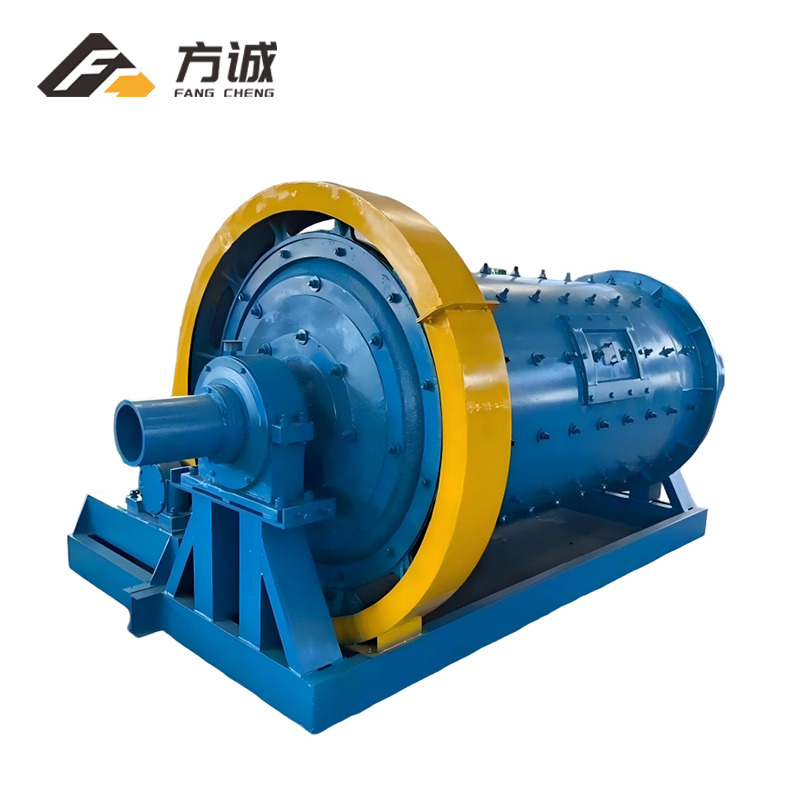

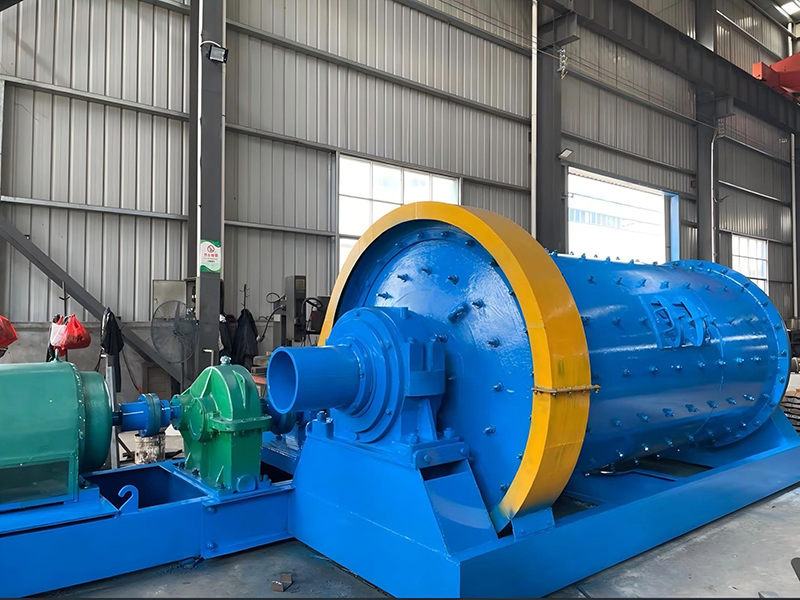

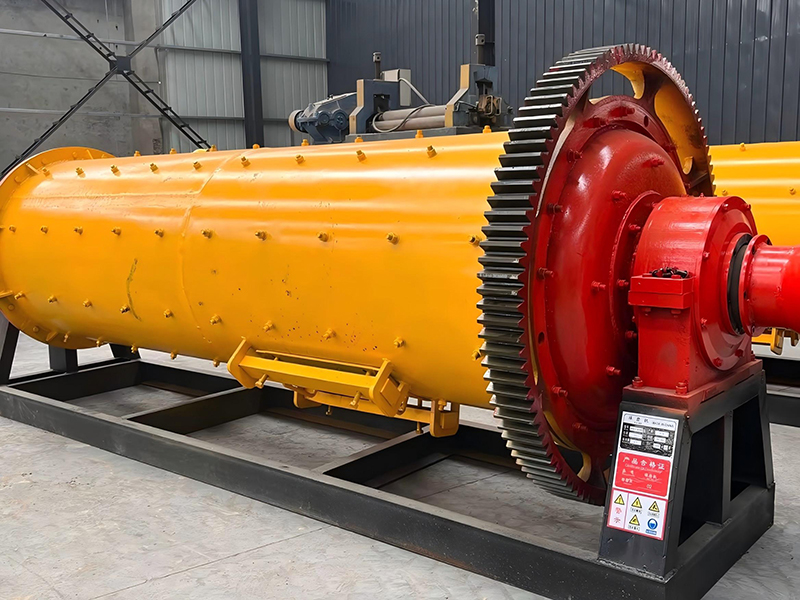

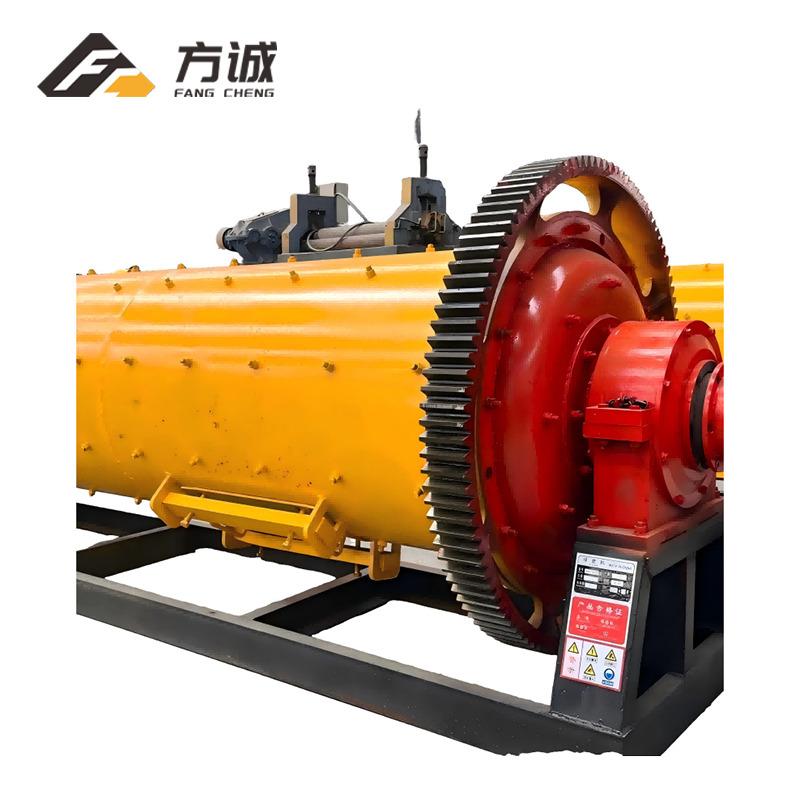

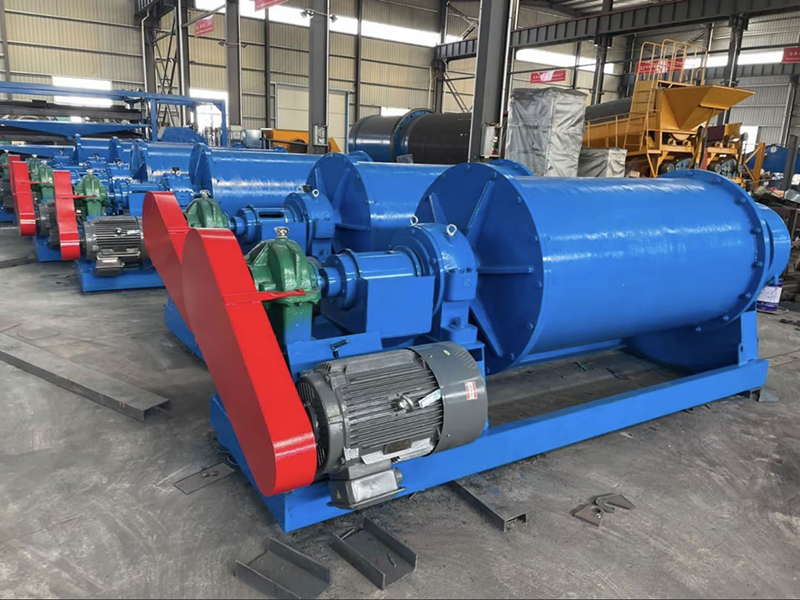

High-Capacity Ball Mill for Ore Grinding


Availability:

Quantity:



Inquire Add to Basket

【Capacity】0.3-150T/H
【Feeding Size】＜25mm
【Type】Overflow ball mills, grate discharge ball mills; Wet/dry milling.

Industrial Ball Mill Wet Grid Ball Mill Laboratory Ball Mill Cement Ball Mill Planetary Ball Mill

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Work Principle

The High-Capacity Ball Mill stands as a cornerstone in ore processing, designed to deliver exceptional grinding efficiency for various mineral ores. Available in both grid-type and overflow-type configurations, this mill caters to diverse industrial needs, from primary grinding in large-scale mines to fine grinding in beneficiation plants. With a production capacity ranging from 100-500 t/h, it ensures consistent performance in processing gold, copper, iron, and other metallic ores.

Grid-Type Ball Mill Mechanism

The grid-type variant features a perforated grid plate at the discharge end, equipped with 7-20 mm diameter holes. After grinding, ore slurry passes through these holes and enters fan-shaped chambers lined with radial ribs. As the mill rotates, these ribs lift the slurry to the hollow shaft neck, enabling forced low-level discharge. This design minimizes over-grinding by expelling fine particles promptly, making it ideal for coarse grinding (48-65 mesh) .

Overflow-Type Ball Mill Mechanism

In contrast, the overflow-type mill lacks a grid plate. Instead, its discharge shaft incorporates anti-spiral blades that return stray steel balls and coarse particles to the grinding chamber. Ore slurry exits naturally when it exceeds the shaft’s lower edge, resulting in a longer residence time. This configuration produces finer particles (150-200 mesh) suitable for secondary grinding stages .

Grinding Dynamics

Both types rely on steel ball impact and abrasion. Grid-type mills operate at higher rotational speeds, generating greater ball drop heights for impact-dominant grinding. Overflow-type mills use slower speeds, emphasizing grinding action for finer outputs .

Advantages

Tailored Efficiency

Grid-type mills boost productivity by 10-15% compared to overflow models under the same conditions, making them ideal for large-scale operations. Overflow-type mills achieve superior particle fineness, reducing downstream processing costs .

Durable Construction

Crafted with high-grade manganese steel liners and wear-resistant components, the mill sustains 20,000+ hours of continuous operation before major maintenance. Its robust drive system minimizes downtime, even in harsh mining environments.

Energy-Saving Design

Equipped with a frequency-adjustable motor, the mill optimizes power consumption, achieving 30% energy savings compared to conventional mills. The grid-type’s forced discharge further reduces energy waste from over-grinding .

Parameters

Ball Mill
Model	Rotation Speed	Max Ball Load	Feeding Size	Capacity	Motor		Dimension	Weight
Model	r/min	(T)	(mm)	(t/h)	Model	Power (Kw)	L×W×H（mm)	(kg)
Φ900×1200	41.6	1.1	25	0.3~0.9	Y180L-8	11	3843×1850×1400	4210
Φ900×2100	41.6	1.8	25	0.6~1.5	Y180L-6	15	4743×1850×1400	6660
Φ900×3300	41.6	2.8	25	0.9~2.3	Y225M-6	30	5943×1850×1400	7770
Φ1200×2400	35.1	4	25	1.6~4.1	Y280S-8	37	5540×2300×1850	10020
Φ1200×2800	35.1	4.6	25	1.9~4.8	Y280M-8	45	5940×2300×1850	10935
Φ1200×3200	35.1	5.3	25	2.2~5.5	Y280M-8	45	6340×2300×1850	11230
Φ1200×4400	35.1	7.3	25	3.0~7.5	Y135S-8	55	7540×2300×1850	13210
Φ1300×2400	30.2	4.5	25	1.5~3.5	Y280S-8	37	5035×2370×1880	10210
Φ1300×2800	30.2	5.2	25	2.0~4.5	Y280M-8	45	5435×2370×1880	11290
Φ1300×3400	30.2	6.5	25	2.2~5.0	Y280M-8	75	6035×2370×1880	13117
Φ1500×2400	30.7	7	25	2.8~6.5	YR280S-8	55	6830×2930×2060	15430
Φ1500×3000	30.7	9	25	3.5~8.0	JR125-8	80	7430×2930×2060	16843
Φ1500×3300	30.7	10	25	4.0~9.0	JR125-8	95	7730×2930×2060	17849
Φ1500×3600	30.7	11	25	4.5~10.0	JR126-8	95	8030×2930×2060	18649
Φ1500×4000	30.7	11.11	25	4.8~10.5	JR126-8	110	9030×2930×2060	19103
Φ1500×4200	30.7	12.5	25	5.0~11.0	JR126-8	110	8630×2930×2060	19330
Φ1500×4500	30.7	13.5	25	5.5~13.5	JR127-8	130	8930×2930×2060	20000
Φ1500×5700	30.7	17	25	7.0~15.5	JR128-8	155	10130×2930×2060	23597
Φ1500×6300	30.7	19	25	8.0~17.0	JR127-8	155	10730×2930×2060	24390
Φ1830×3000	25.04	13	25	3.0~17.0	JR128-8	130	8456×3654×2250	29490
Φ1830×3400	25.04	14	25	3.3~20.0	JR128-8	155	8856×3654×2250	30390
Φ1830×3600	25.04	15	25	4.0~21.5	JR128-8	155	9056×3654×2250	31600
Φ1830×4000	25.04	17	25	4.5~24	JR128-8	155	9456×3654×2250	32700
Φ1830×4200	25.04	18	25	5.5~25.0	JR136-8	180	9656×3654×2250	33490
Φ1830×4500	25.04	19	25	5.2~26.0	JR136-8	180	9856×3654×2250	34210
Φ1830×5200	25.04	21	25	6.5~32.5	JR138-8	210	10040×3654×2250	37715
Φ1830×5600	25.04	21.9	25	7~35	JR138-8	245	10956×3754×2250	39290
Φ1830×6400	25.04	27	25	8.0~40.0	JR137-8	210	10220×3754×2250	42440
Φ1830×7000	25.04	27.3	25	8.5~45.0	JR138-8	320	10820×3754×2250	45590
Φ2100×2200	23.8	15	25	3.0~22.0	JR127-8	155	7775×4060×3400	38793
Φ2100×3000	23.8	20	25	4.0~30.0	JR136-8	180	8475×4060×3400	41965
Φ2100×3500	23.8	20.7	25	4.5~35.0	JR136-8	180	8820×4060×3400	44120
Φ2100×3600	23.8	21	25	5.0~37.0	JR137-8	210	9225×4060×3400	44551
Φ2100×4000	23.8	22	25	5.2~39.0	JR138-8	245	9475×4060×3400	46697
Φ2100×4500	23.8	23.8	25	5.2~40.0	JR138-8	245	9975×4060×3400	47000
Φ2100×5500	23.8	25	25	5.5~40.5	JR138-8	320	11135×4060×3400	50000
Φ2100×6000	23.8	28.5	25	5.8~40.5	JR138-8	380	11965×4060×3400	52000
Φ2400×3000	23	20	25	6~75	JR1413-8	280	9170×5005×3970	59850
Φ2400×3600	23	26.6	25	6.5~82	JR1413-8	280	9770×5005×3970	63684
Φ2400×4000	23	30	25	7.0~92	JR138-8	320	9966×5005×3970	67984
Φ2400×4500	23	32.5	25	8~100	JR158-8	320	10575×5005×3970	72284
Φ2400×6000	23	40	25	10~120	JR138-8	320	11175×5005×3970	73365
Φ2700×2100	21.7	24	25	7~78	JR1410-8	280	9962×5610×4500	63000
Φ2700×2700	21.7	29	25	8~100	JR148-6	310	10562×5610×4500	68530
Φ2700×3600	21.7	34	25	15~115	JR158-8	380	11162×5610×4500	88400
Φ2700×4000	21.7	40	25	17.5~135	JR1512-8	400	11175×5610×4500	90420
Φ2700×4500	21.7	42	25	19～150	JR1510-8	475	11829×5610×4500	100000
Φ3200×3000	18.7	44	25	50~90	TDMK500-36	500	11000×7200×5700	124000
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

Rock Gold Mine - South Sudan

2砂金矿-津巴布韦

Alluvial Gold Mines - Zimbabwe

Chromite - South Africa

Alluvial Chrome Ore - Zimbabwe

AlluvialTin Mines - Bolivia

Rock Tin Mines - Indonesia

Copper Oxide - Russia

Tantalum Niobium Ore - Nigeria

Lithium Mines - Brazil

Kaolin Mine - Uganda

Lead Zinc Mine - Morocco

Manganese Ore - Kenya

Hematite - South Africa

FAQ

What factors determine grid-type vs. overflow-type selection?

Choose grid-type for high-capacity, coarse grinding (e.g., 48-65 mesh) and overflow-type for fine grinding (150-200 mesh) in secondary stages. Grid-type suits large mines, while overflow-type simplifies maintenance for smaller operations .

How often should steel balls be replaced?

Under typical conditions, steel balls require replacement every 3-6 months, depending on ore hardness. The mill’s access doors facilitate easy ball replenishment without halting production.

Can it handle wet and dry grinding?

Yes, the mill adapts to both modes. Wet grinding uses water to form slurry, ideal for mineral beneficiation, while dry grinding suits scenarios where water scarcity is a concern.
