While placer mining has historical roots, modern commercial operations rely on precise engineering, not luck, to extract alluvial gold profitably. Today, advanced machinery replaces rudimentary pans and simple wooden sluices. We depend on optimized, scientific workflows to hit aggressive production goals reliably. The primary challenge in the placer gold mining process involves maximizing the recovery of microscopic fine gold. You must balance capital expenditures, operating costs, and strict environmental compliance simultaneously. Failing to capture ultra-fine gold particles severely hurts overall project profitability.
This guide breaks down the end-to-end processing workflow in detail. We compare critical machinery types to help you make informed decisions. We provide a structured framework to evaluate the right setup for your specific geological deposit. You will learn actionable strategies to streamline operations, reduce environmental footprints, and significantly boost your final mineral yields.
Process breakdown: Modern placer mining is a four-stage process: excavation, classification, concentration, and final cleanup.
Equipment matching: Selecting the right gold wash plant (trommel vs. vibrating screen) depends heavily on the clay content and gravel size of the deposit.
Recovery rates: High-G centrifugal concentrators significantly outperform traditional sluices in capturing fine gold (under 1mm).
Compliance: Implementing closed-loop, mercury-free gravity separation is now the global standard for minimizing environmental impact and passing regulatory audits.
Modern extraction operations follow a strict sequence of events. Skipping or rushing any stage compromises your final yield. We break down the four essential stages below.
Paydirt starts in the ground. You extract raw material from active riverbeds, elevated ancient terraces, or dry alluvial fans. Earthmoving requires serious mechanical horsepower. Operators typically use heavy excavators, front-end loaders, or industrial dredge pumps. They move raw paydirt directly into a central processing hopper.
Before raw dirt enters the plant, it hits grizzly screens. These heavy-duty steel bars act as your first line of defense. They reject oversized boulders immediately. This crucial step protects downstream equipment from catastrophic physical damage. It ensures only appropriately sized gravel enters the primary processing circuit.
Best Practices for Excavation:
Maintain a consistent feed rate to prevent system surges.
Angle grizzly screens correctly so large boulders roll off naturally.
Keep loaders positioned closely to the hopper to reduce fuel consumption.
Here, you begin true alluvial gold processing. Raw ore often clumps together tightly in the ground. High-pressure water jets break apart this compacted material. They wash sticky clay entirely away from the gravel. Clay mitigation is absolutely vital.
Next comes material sizing. You pass the washed ore through various metal or polyurethane screens. Only gold-bearing sand and fine gravel move forward to the recovery stage. Large barren rocks exit the system early via tailings conveyors. You save tremendous energy by rejecting worthless rock immediately.
This stage relies purely on specific gravity. Gold boasts a specific gravity of roughly 19.3. Surrounding quartz rock sits around 2.65. Because gold is significantly denser, it sinks rapidly in agitated water. You use this physical principle to reduce bulk volume.
Massive amounts of classified material shrink down to a very small amount of heavy concentrate. The equipment mimics river currents but controls the fluid dynamics precisely. You wash away the lighter sands. The heavy black sands and gold particles remain trapped in the concentration system.
The final step isolates pure gold from the concentrated black sands. You process these heavy concentrates very carefully in a secure room. Operators usually run this material over specialized shaking tables. Sometimes they use magnetic separators to remove iron-rich magnetite.
Once isolated, you smelt the final product. The gold dust melts at high temperatures. You pour the molten metal into molds to form solid doré bars. These rough bars then ship directly to a commercial refinery for final purification.
Common Final Cleanup Mistakes:
Feeding shaking tables too quickly, which washes fine gold off the edge.
Failing to classify the concentrate into uniform sizes before tabling.
Using contaminated water during the final cleanup wash.
You need the right gold wash plant to maximize yields. Geology dictates your equipment choice. A mismatch here guarantees financial losses.

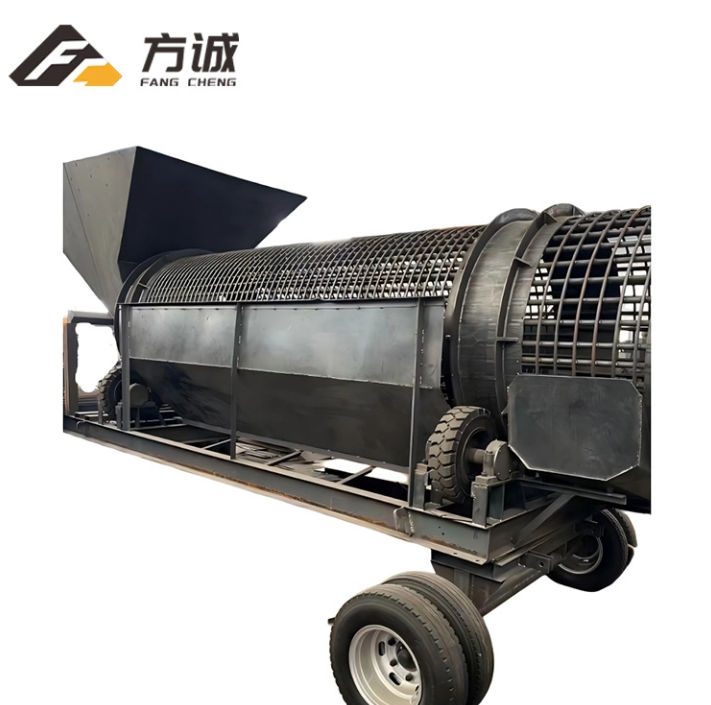

Trommels feature large rotating cylindrical screens. Internal steel lifters catch the raw material as the drum turns. High-pressure spray bars blast the tumbling rocks continuously.
They are best suited for high-clay deposits. The tumbling action acts as an aggressive mechanical scrubber. It breaks up sticky clays effectively. If clay remains intact, it acts like a sponge. It will carry your fine gold out into the tailings pond. Trommels prevent this disaster.
They do have limitations. Trommels offer lower throughput capacity compared to vibrating screens of the exact same footprint. They also require more physical maintenance due to rotating trunnion wheels and heavy drive chains.
These plants utilize high-frequency multi-deck shaking screens. They vibrate rapidly to stratify and size the incoming gravel. Operators often equip them with high-pressure wash decks.
They are best for loose alluvial gravels. You want minimal clay when using a vibrating screen. The main advantage is massive throughput capability. They offer incredibly precise material sizing. This makes them ideal for high-volume, low-grade deposits where you must move massive tonnage to remain profitable.
Wash Plant Selection Guide
Feature | Trommel Plant | Vibrating Screen Plant |
|---|---|---|
Primary Mechanism | Rotating cylindrical drum | High-frequency shaking decks |
Clay Handling | Excellent (Aggressive scrubbing) | Poor to Average |
Throughput Capacity | Moderate | Very High |
Ideal Deposit Type | Sticky, clay-rich soil | Loose, sandy river gravels |
Upgrading your primary gold recovery equipment determines your final success. The industry offers several distinct technologies. Each provides unique advantages and drawbacks.
Sluices use a flowing channel of water over metal riffles and miner's moss. Heavy particles drop behind the riffles while lighter sands wash away.
Pros: Very low initial capital expenditures. They possess zero moving parts. They are incredibly easy to operate and repair in remote locations.
Cons: They are highly susceptible to packing. Heavy black sand quickly fills the riffles. They struggle significantly to catch ultra-fine or "flour" gold.
Best application: Small-scale artisan operations. They also work exceptionally well as a secondary tailings catch behind more advanced machinery.
Jigs use a pulsating water column to separate materials based on density. A diaphragm pushes water up and down through a screen bed.
Pros: They are excellent at processing unclassified, raw material. They recover coarse to medium gold brilliantly without requiring precise pre-screening.
Cons: You need high water volume to keep them running. They require careful tuning of the pulsation stroke. If the stroke length is wrong, valuable gold escapes into the tailings.
Modern concentrators spin a ribbed bowl at extremely high speeds. Fluidization water pushes through the ribs to keep the material bed loose.
Pros: They create immense centrifugal forces. Some models reach up to 60Gs. This massive force traps microscopic fine gold securely. Sluice boxes simply miss these particles. They offer a very high concentration ratio, shrinking massive volumes of ore into tiny amounts of concentrate.
Cons: They demand higher initial capital expenditures. You also need very clean, pressurized water to maintain fluidization. Feed material must be pre-screened strictly, usually keeping particles under 2mm.
ROI factor: They often pay for themselves quickly. This rapid return happens especially in deposits holding high percentages of fine gold.
You cannot copy another mine's flow sheet blindly. Every deposit possesses unique geological characteristics. Use this framework to design your custom plant.
Low-grade deposits demand high-volume wash plants. You must move massive tonnage daily to extract enough gold. Vibrating screens fit best here. Conversely, high-grade but difficult deposits justify slower processing. Intensive scrubbing using trommels extracts more value per yard. Do not rush high-grade clay ore.
Geological core samples guide your budget. If drill reports indicate predominantly fine gold, you must pivot your strategy. Budget must be allocated to centrifugal concentrators and shaking tables. Do not rely on basic sluice setups. They will lose your profits down the drain. If the gold is coarse and chunky, simpler sluices and jigs will suffice.
Wet processing uses intense amounts of water. Operations in arid regions face strict environmental limits. If water is scarce, you must adapt. Operations must invest heavily in thickeners. Water recycling systems become mandatory. This equipment maintains your processing capacity without draining local aquifers.
Start your site with a modular plant design. Modular components let you grow smoothly as cash flow increases. Ensure pumps and primary conveyors possess extra capacity from day one. They should handle a 20-30% capacity increase easily. This foresight prevents a complete system redesign later when you want to increase production.
Strategic Setup Flowchart Overview
Deposit Characteristic | Recommended Primary Action | Required Machinery Upgrade |
|---|---|---|
High clay content (>30%) | Aggressive mechanical scrubbing | Heavy-duty Trommel with internal lifters |
Ultra-fine gold present | High-G force concentration | Centrifugal Concentrators |
Water scarcity on site | Closed-loop water management | Lamella thickeners & flocculant stations |
Modern mining demands strict adherence to environmental protocols. Failing compliance audits can shut down your operation overnight. We must mitigate risks proactively.
Inadequate clay scrubbing remains the most common operational failure globally. Clay acts exactly like a sticky sponge. If you do not dissolve it completely, clay balls form. They travel through your plant intact. They carry trapped fine gold directly over the concentrator. The gold washes directly into the tailings pond. You must break clay apart completely using high-pressure water and tumbling action.
The global industry mandates a rapid transition. You must fully embrace gravity-based recovery methods. Centrifuges and shaking tables replace outdated, dangerous amalgamation techniques. This critical shift ensures you comply with EPA standards. International environmental frameworks also demand completely mercury-free processing environments. Gravity separation achieves higher yields safely.
Water discharge regulations are strict worldwide. You must design adequate settling ponds. These engineered ponds manage silt runoff properly. Clear water overflows back into the environment or plant. Heavy silt drops out safely to the bottom. Proper pond management keeps your site compliant. Often, operators use synthetic flocculants. These chemicals force suspended clay particles to sink rapidly, keeping recycled water clean.
Profitable placer mining depends entirely on matching your equipment to specific geological realities. You must account for clay content, particle size distribution, and local water availability. A mismatched plant wastes fuel, water, and valuable minerals.
Before purchasing massive machinery, execute a proper bulk sample test. This critical step determines your ore's washability accurately. It reveals exactly how fine your gold is. Data drives profitable decisions, not guesswork.
Consult with a specialized processing engineer today. Share your bulk sample data with them. Let them map out a custom equipment flow sheet tailored specifically to your deposit. Investing in the right upfront engineering guarantees a higher recovery rate and a safer, compliant operation.
A: A standard ratio requires roughly 3 to 5 gallons of water per minute for every cubic yard per hour of processing. A 100-yard-per-hour plant might need 500 gallons per minute. Because this volume is massive, implementing water recycling systems and settling ponds is absolutely necessary for commercial viability.
A: Basic traditional sluice boxes may only recover 60% to 75% of the total gold, losing mostly fine particles. However, optimized modern setups utilizing high-G centrifugal concentrators can easily push recovery rates to 90% or even 95% for microscopic fine gold.
A: Yes, through "dry washing" techniques. These use air pulsation and vibration instead of water. However, dry washing has strict limitations. It offers significantly lower recovery rates and is limited exclusively to completely dry, arid deposits. Wet processing is vastly superior.
A: Clay is highly cohesive. Sticky clay balls easily trap small gold particles inside them. This prevents the gold from interacting with your gravity recovery equipment. Consequently, the heavy gold remains hidden inside the lighter clay ball and gets discarded entirely with the tailings.
