Investing in placer mining carries exceptionally high stakes. Selecting the wrong equipment directly impacts recovery rates. It increases operational downtime and ultimately destroys profitability. Placer operations require immense agility. You must follow the paystreak as it moves across the claim. However, buyers often struggle during the procurement phase. They find it difficult balancing portability against processing capacity and fine gold recovery.
This guide provides an evidence-based framework. We help you evaluate mobile setups effectively. We bypass inflated marketing claims entirely. Instead, we focus on geological compatibility and true processing capacities. You will learn how to match machinery to your specific soil type. We also explore resource bottlenecks and critical technical specifications. By the end, you will know exactly how to shortlist the most effective system for your specific site conditions.
Match Equipment to Geology: Clay-heavy soils require scrubbers and trommels, while loose gravels are better suited for vibrating screens.
Scrutinize Real-World TPH: Nameplate Tons Per Hour (TPH) often assumes ideal conditions; discount manufacturer specs by 15-20% for realistic operational planning.
Resource Bottlenecks Matter: Water consumption and power requirements dictate site viability just as much as dirt volume.
You must first define when mobility acts as an operational advantage. Sometimes, it becomes a costly compromise. High-capacity stationary plants offer massive throughput. However, they demand rigid infrastructure. Mobility provides a strategic edge for scattered deposits. It perfectly suits remote claims and lease-mining operations. You can move the equipment directly to the paydirt. This reduces the time spent hauling material across vast distances.
Evaluate the agility of your potential setup. Stationary plants handle massive volumes but lock you into one location. If your deposit spans a wide, shallow riverbed, a stationary plant forces you to haul dirt for miles. A mobile unit eliminates this bottleneck. You simply relocate the plant as the paystreak shifts.
Site footprint and topography present harsh realities. You must evaluate the logistics of moving heavy machinery over rough terrain. Establishing level pads is mandatory. If the machine sits at an angle, water flow becomes uneven. This disrupts the sluice box and sends gold into the tailings. Managing those tailings in confined spaces takes careful planning. You need enough room to stockpile processed dirt.
Water source distance also dictates site viability. Establish clear baselines for pumping distances. Pumping water uphill or over long distances destroys pressure. Gallons Per Minute (GPM) drops significantly. You may need to invest in heavy-duty pumps to compensate. Alternatively, integrated water recycling systems often become necessary. These systems clarify water and send it back to the plant. Evaluating these factors helps you choose the right placer gold equipment before breaking ground.
The core metric for success is geological compatibility. The best gold wash plant is the one tailored to your specific paydirt. You cannot force a generic machine to process every type of soil efficiently.
High-clay soils require aggressive breaking. Clay acts like a sponge for gold. If you do not break it apart, clay balls will roll straight through your sluice. They carry your gold right out into the tailings pile. You must use trommels equipped with scrubber sections. High-pressure spray bars are essential here. They blast the clay apart to free trapped gold.
Loose alluvial sands and gravels behave differently. They do not require aggressive scrubbing. Vibrating screen plants serve these materials much better. Shakers offer significantly higher throughput for easily washed materials. They stratify the sands quickly and efficiently.
Oversize material management is another crucial factor. How does the plant handle large boulders? You must keep large rocks out of the primary washing circuit. Grizzly bars provide the first line of defense. They deflect massive boulders away from the hopper. Pre-screening stages protect delicate screen meshes from catastrophic impact damage. If boulders enter the drum or shaker, they cause severe mechanical failures.
Assess your target gold size. Recovery mechanisms differ vastly for coarse nuggets versus ultrafine flour gold. Standard riffles catch coarse nuggets easily. However, fine gold requires specialized sluice box ripple design. Standard setups often lose flour gold. You might need integration with centrifugal concentrators. These devices use extreme G-forces to capture microscopic gold particles. Tailoring your recovery system to the gold size prevents devastating losses.
You must learn how to read capacity claims critically. Manufacturers heavily promote Throughput or Tons Per Hour (TPH). However, these numbers often represent ideal, laboratory-like conditions. Distinguish clearly between feed capacity and washing capacity. Feed capacity simply means how much dirt you can dump into the hopper. Washing capacity means how much the plant can effectively process without losing gold. If you exceed the washing capacity, the sluice box floods. You will blow gold out the back.
Water consumption metrics remain a critical bottleneck. Outline standard GPM requirements per ton of material. Most setups require substantial water to slurry the dirt properly. If the slurry becomes too thick, gold cannot settle into the riffles. Highlight systems featuring closed-loop water recycling. These features are absolute lifesavers in arid environments. They drastically reduce your daily water intake requirements.
Evaluate power and fuel efficiency carefully. Diesel drives offer immense torque and portability. They run independently anywhere on the claim. Electric drives require robust generators but often require less maintenance. Evaluate the reliability of onboard generators. Look closely at the accessibility of hydraulic power packs. If a hydraulic hose blows, you need easy access to replace it quickly.
Define what "mobile" actually means for your operation. Differentiate between skid-steer movable units and trailer-mounted highway-legal chassis. Skid-steer units work well for small, localized movements. Highway-legal chassis allow you to tow the plant between distant claims. Multi-piece modular rigs offer higher capacity but require more assembly. Quantify teardown-to-restart timelines. A highly portable mobile gold mining equipment setup might take one hour to move. A modular rig could cost you two days of lost production during relocation.
Choosing the right mechanical screening method defines your operational success. The industry relies primarily on two categories: trommels and vibrating screens.

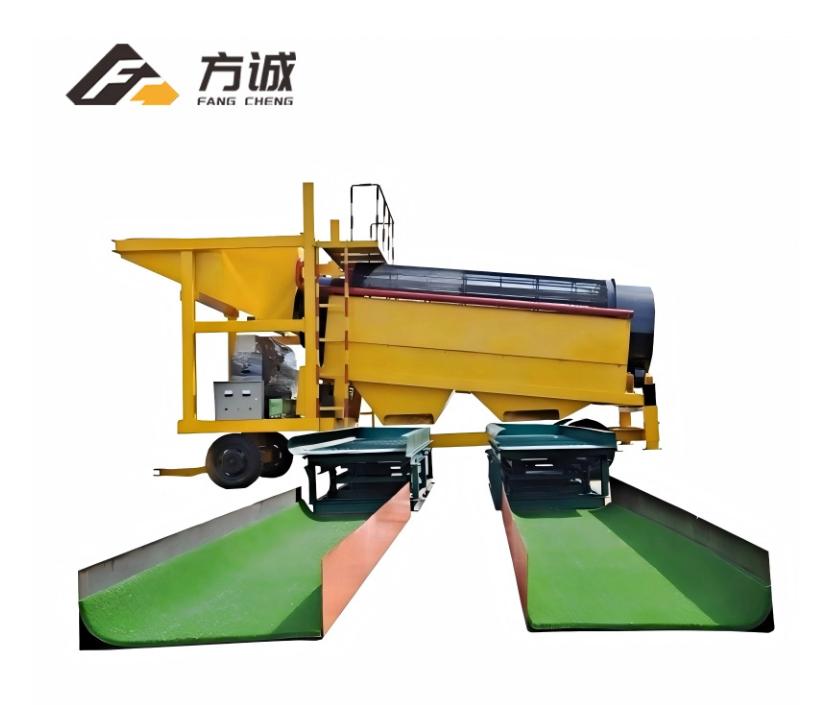

Trommel wash plants utilize a rotating drum fitted with screen panels. Material enters the drum, tumbles repeatedly, and gets blasted by internal spray bars.
Pros: Trommels excel at breaking up clay and cemented gravels. The tumbling action acts like a washing machine. They feature simple mechanical operation and highly durable components.
Cons: They offer a lower overall throughput compared to screens of the same footprint. They also tend to be heavier, reducing extreme mobility.
Vibrating screen plants, or shakers, use multi-deck vibrating screens. Material drops onto shaking decks. Water sprays over the decks as the vibration stratifies the gravel.
Pros: Shakers deliver exceptional throughput for sandy, loose gravel. They provide precision material sizing. They generally run on a lower water-to-dirt ratio.
Cons: They are highly prone to blinding or clogging in high-clay dirt. The mud packs into the screen mesh. They also require more complex suspension and vibration maintenance.
Equipment Selection Matrix by Soil Type
Feature/Metric | Trommel Plant | Vibrating Screen Plant |
|---|---|---|
Best Soil Match | High-clay, cemented gravels, muddy dirt | Loose sand, alluvial gravel, dry dirt |
Throughput Capacity | Moderate to High | Extremely High |
Water Usage | High (needs heavy spray for clay) | Moderate (requires less aggressive washing) |
Maintenance Profile | Simple drive belts, trunnion rollers | Complex bearings, suspension springs |
Clay Handling | Excellent (Tumbling action breaks mud) | Poor (Screen blinding occurs frequently) |
You must address maintenance realities before making a purchase. Mining equipment endures brutal conditions. Dirt, rock, and water destroy metal quickly. Highlight the major wear-and-tear components. Screen mesh, hydraulic hoses, bearings, and water pump impellers will fail eventually. Demand transparency on replacement part availability. If a proprietary bearing fails, you cannot afford to wait six weeks for international shipping. Ensure you can source standard components locally.
Environmental and compliance factors heavily influence your operation. Address permitting hurdles early. Water discharge regulations remain strict in most regions. You cannot simply dump murky tailings water into a pristine creek. Noise pollution also triggers regulatory scrutiny. Reclamation requirements demand you restore the land after mining. Note how specific equipment designs mitigate these risks. Closed-loop water systems prevent illegal discharge. Hospital-grade mufflers on diesel engines reduce noise complaints.
Look carefully at hidden operational costs. Moving beyond the initial purchase price reveals the true financial burden. Factor in transportation costs to the remote claim site. Heavy haulage fees add up fast. You must also consider required support equipment. Your excavator or loader must match the plant. If the hopper sits 12 feet high, a small skid-steer cannot reach it. You will have to build massive earth ramps. Finally, account for the labor required for daily clean-ups. A complex mobile gold wash plant might take two hours to wash down at the end of the shift. That is labor you must pay for every single day.
Follow a strict evaluation framework to protect your investment. Rely on data rather than emotion.
Step 1: Geological Assay First. Never buy a plant before testing your ground. You must determine the exact clay content and gold sizing. Run bulk samples. If you find sticky clay, eliminate vibrating screens from your list immediately. If you find microscopic flour gold, mandate secondary recovery systems.
Step 2: Define Infrastructure Limits. Cap your search based on strict operational realities. Determine your maximum available water in GPM. If your creek only supplies 200 GPM, do not buy a plant requiring 500 GPM. Match the hopper feed height to your existing loader bucket size and reach.
Step 3: Require Performance Guarantees. Hold manufacturers accountable. Look for companies offering verifiable case studies in similar soil types. Demand transparent warranties on major structural components. Explore pre-purchase testing options. Some manufacturers will run your sample dirt through their demo units.
Take immediate next-step action. Consult directly with an equipment engineer. Use your geological assay data to design a custom flow sheet based on your specific deposit. Do not settle for off-the-shelf solutions if your ground demands custom modifications.
Choosing the right processing setup serves as your ultimate exercise in risk mitigation. You must require a strict alignment between equipment specifications, geological realities, and operational constraints. Never let arbitrary production goals blind you to the limitations of your site.
The highest returns come from prioritizing recovery efficiency and reliability over peak nameplate capacity. Processing 100 tons per hour means nothing if you lose half your gold to the tailings pile. A reliable machine running steadily at 60 tons per hour always out-earns a broken down behemoth.
Take control of your processing strategy today. Contact a specialized application engineer for a site-specific equipment consultation. Alternatively, download a detailed capacity sizing calculator to evaluate your true water and power bottlenecks.
A: It depends heavily on your TPH and soil type. Typically, requirements range from 10 to 30 GPM per yard of material. Clay-rich soils require the higher end of that spectrum. If you operate in arid locations, consider integrating water recycling systems to dramatically lower fresh water intake.
A: Yes, provided the plant integrates proper classification. Relying solely on standard riffles results in heavy fine gold losses. You must incorporate secondary recovery systems. Centrifugal concentrators or specialized sluice matting designed for flour gold are essential for high recovery rates.
A: Setup time varies greatly by scale. Small 10-30 TPH skid-steer units can become operational in under an hour. However, larger 100+ TPH trailer-mounted systems take much longer. Expect to spend a half-day leveling the pads, plumbing the water lines, and dialing in the sluice box angle.
A: Trommels are strictly better for clay. Their tumbling action and internal scrubber rings break down mud balls efficiently. A shaker screen will simply bounce those mud balls across the deck, carrying your trapped gold right out into the tailings pile.
