Inefficient particle separation in closed-circuit grinding creates severe operational bottlenecks. We frequently observe excess energy consumption and detrimental over-grinding. These issues degrade downstream recovery rates significantly. When milling circuits fail to remove fine particles promptly, they waste valuable electrical power. Mills end up crushing material already at the target size. This scenario requires a robust mechanical intervention. You need a highly efficient Spiral Classifier to resolve these processing inefficiencies. It operates as a highly reliable, gravity-based mechanical separation solution. The machine prevents over-grinding effectively. It returns coarse sands directly to the mill for further grinding. Meanwhile, it allows properly sized fine particles to overflow the weir. Our objective in this article is very clear. We provide a complete technical and commercial evaluation framework. We will help plant managers and process engineers assess their grinding circuits. You will learn how to size the equipment accurately. We also guide you on mitigating common operational risks effectively.
Process Optimization: Spiral classifiers inherently reduce energy-intensive over-grinding and maintain a steady circulating load without the high pump wear associated with hydrocyclones.
Classification by Design: Selection dictates performance; High Weir models target coarse separation (0.83–0.15mm), while Submerged models handle finer particle classification (0.15–0.07mm).
Alternative Evaluation: While hydrocyclones offer a smaller footprint and finer cut points, spiral classifiers often deliver up to a 35% reduction in long-term maintenance costs due to low-speed, gravity-fed operation.
Risk Management: Mitigating equipment failure requires strict management of pool depth, slurry density, and feed rate to prevent catastrophic "sanding up" (overload jamming).
Continuous plant operation demands highly efficient particle sorting. The equipment removes qualified fine material continuously from the grinding loop. This continuous removal prevents the generation of unwanted slimes. Slimes negatively impact downstream flotation cells. They also disrupt gravity separation circuits severely. By protecting these downstream processes, plant operators maximize overall mineral recovery.
In closed-circuit milling operations, these machines provide incredible mechanical synergy. They utilize a distinct structural layout. Operators install the tank on a specific incline. The rotating screw pushes returned coarse sand upwards along the trough. This action gravity-feeds the material directly back into the ball mill. You completely eliminate the need for high-wear slurry pumps. This structural advantage reduces pump-related downtime and maintenance burdens significantly.
Secondary applications further increase the overall equipment utility. You can integrate them for desliming inside a gold wash plant. They also perform exceptionally well for dewatering mineral concentrates. Heavy media density separation represents another common industrial use case. Their mechanical versatility makes them a valuable asset across diverse processing environments.
The physical separation dynamics rely on differential settling velocities. Fluid dynamics govern how particles behave inside the water pool. Settling speed depends primarily on particle size and specific gravity. Coarse, heavy particles sink rapidly to the bottom of the tank. The rotating blades mechanically push them up the incline. Finer, lighter particles remain suspended in the slurry. They eventually overflow the lower weir at the bottom end.
Choosing the correct weir height is absolutely crucial. The configuration dictates the exact separation cut point.
High Weir (High Dam): The overflow dam sits above the lower bearing assembly. It remains below the main spiral axis. This configuration handles coarse particle separation best. Engineers specify it for cut points between 0.83mm and 0.15mm.
Submerged: Operators fully submerge the lower four to five spiral blades. The blades sit deep in the slurry pool. This creates a large, highly stable settling zone. It is ideal for fine classification ranging from 0.15mm to 0.07mm.
Low Weir: This design features a very small settling area. Engineers relegate it primarily to simple sand washing tasks. You rarely see it utilized in modern closed-circuit milling.

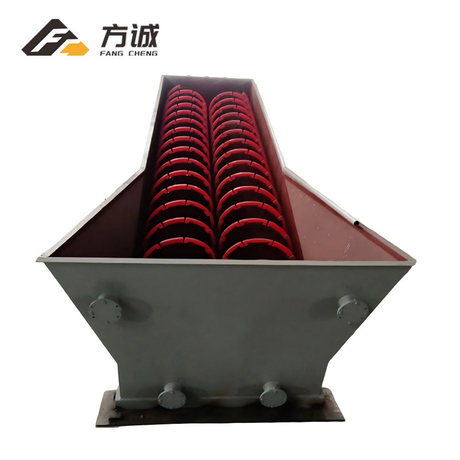

Throughput scalability dictates whether you choose a single or duplex model. Single spiral axes handle standard circulating loads effectively. Duplex models utilize two parallel rotating shafts. They maintain identical separation physics within the pool. However, they double the mechanical sand-raking capacity. You need duplex units when pairing with high-tonnage ball mills. They handle massive circulating loads without stalling.
When comparing these two technologies, maintenance profiles differ drastically. Hydrocyclones suffer from intense, high-velocity wear. Their internal rubber liners and apexes degrade quickly. The feed pumps required for hydrocyclones also experience severe abrasive wear. Conversely, mechanical classifiers feature low-speed, low-friction operation. The slow rotation reduces long-term maintenance frequency dramatically.
You must acknowledge the footprint and installation trade-offs during plant design. Hydrocyclones require significantly less floor space. Their vertical orientation keeps the initial installation footprint minimal. Mechanical classifiers require a much larger physical layout. They occupy substantial horizontal floor space inside the plant. However, they reduce secondary pump infrastructure costs entirely. Gravity handles the material transport back to the mill.
Process stability heavily favors the mechanical approach. These machines remain highly forgiving to sudden operational surges. Volume spikes or density changes rarely disrupt their separation efficiency. Hydrocyclones demand strictly maintained pressure parameters. Even minor pressure fluctuations alter the cyclone cut point negatively.
Modern plant designs increasingly adopt hybrid classification systems. Process engineers combine both technologies for optimal results. They utilize the mechanical unit for primary coarse separation. They then feed the classifier overflow directly into hydrocyclones. The cyclones handle the secondary fine classification stage. This hybrid approach maximizes overall plant grinding efficiency.
Operational Metric | Mechanical Classifier | Hydrocyclone System |
|---|---|---|
Operating Velocity | Low-speed mechanical rotation | High-velocity centrifugal force |
Maintenance Frequency | Low (infrequent shoe replacement) | High (pump and liner degradation) |
Floor Space Requirements | Large physical footprint required | Compact vertical installation |
Surge Tolerance | Highly forgiving to feed variations | Requires strict pressure stabilization |
Equipment specification starts primarily with selecting the spiral diameter. Typical diameters range from 300mm to 3000mm. This single metric directly dictates the machine's tonnage capacity. Processing plants can expect raking capacities from 20 tons daily. Massive units handle over 1700 tons per 24 hours. You must match the chosen diameter precisely to your mill's discharge volume.
Tank installation angle represents another critical engineering choice. Industry norms standardize this slope angle between 12° and 18°. Engineers must calibrate it based on the required coarse material lift. The desired moisture content of the return sand also influences the angle. Steeper angles drain more water from the sand. However, steeper angles simultaneously reduce the overall raking capacity.
Operational success hinges entirely on strict variable control.
Pool Depth Control: A pool running too deep loses valuable fine particles. They settle into the return sand incorrectly. A pool running too shallow creates the opposite problem. It contaminates the weir overflow with unwanted coarse particles.
Rotational Speed Calibration: Excessive rotational speed causes harmful slurry turbulence. This turbulence disrupts the quiet settling zone completely. It ruins classification accuracy and forces coarse material into the overflow.
You must calibrate these variables carefully during initial plant commissioning. Continuous monitoring ensures long-term separation stability.
The most severe threat operators face is "sanding up." We define this as a critical mechanical failure condition. The settled material load suddenly exceeds the motor's mechanical torque limit. This overloads the shaft and stalls the machine entirely. Clearing a sanded-up tank requires intense manual labor. You must implement strict preventative operational strategies. Actively monitor mill feed rates and slurry density continuously. This proactive monitoring prevents dangerous overload conditions.
Specifying a robust lifting mechanism remains strictly necessary. You need reliable hydraulic or motorized lifting devices for the main shaft. This mechanism allows safe equipment startup under heavy load. It also provides easy blade clearance after unexpected power failures. Operators lift the screw out of the settled sand before restarting the motor.
Routine maintenance expectations center around specific wear components. You must inspect and replace the spiral blade wear shoes periodically. Operators often cast these shoes from high-chrome iron or durable polyurethane. The critical lower bearing assembly operates completely submerged in abrasive slurry. It requires strict, uncompromising lubrication protocols. Routine greasing prevents catastrophic abrasive failure at the lower shaft.
Standard industrial safety practices are strictly mandatory. Reinforce strict Lockout/Tagout (LOTO) procedures across your maintenance team. Never perform wear shoe replacement without isolating all electrical energy sources first. Tank cleaning also requires full mechanical isolation to prevent accidental rotation.
This equipment delivers immense strategic value to mineral processing operations. It serves as a robust, highly reliable asset for coarse-to-medium classification. Plant managers rely on it heavily for effective closed-circuit milling. Its low-speed mechanics ensure continuous uptime. It provides steady, predictable circulating loads to grinding mills.
To maximize your plant's efficiency, follow these action-oriented next steps:
Conduct detailed slurry settling tests on your specific bulk ore samples.
Perform comprehensive particle size distribution (PSD) analysis before specifying equipment.
Evaluate your exact grinding circuit capacity requirements to determine proper unit sizing.
Finalize the tank angle, spiral diameter, and weir height specifications collaboratively with your chosen OEM.
A: High density increases slurry viscosity significantly. This hinders the natural settling of coarse particles. Consequently, coarse materials incorrectly overflow with the fines. This ruins the targeted classification cut point. You must maintain optimal water-to-solid ratios continually. Proper density ensures precise mechanical separation and clean overflow.
A: Capital cost is driven primarily by the physical spiral diameter. The choice between single and duplex shaft configurations also impacts the final price heavily. Upgrading wear material specifications increases costs upfront but extends lifespan. Choosing premium materials like high-chrome alloys is common. Automated hydraulic lifting mechanisms also add to the initial investment.
A: Yes, they perform highly effectively for industrial desliming tasks. They wash heavy clay from mineral ores efficiently. However, you must tune the pool depth and water addition carefully. Proper mechanical calibration prevents material agglomeration. It ensures smooth operation without clogging the raking mechanism. Controlled water injection keeps the clay suspended for clean overflow.
