In mineral processing and industrial grinding, achieving a precise particle size without wasting energy is a primary operational hurdle. Plants constantly battle against inefficient power consumption and inconsistent material liberation. Poor sizing negatively impacts downstream recovery rates. Closed-circuit grinding solves this prevalent issue. It pairs a Ball mill with a reliable separation device to form a self-regulating loop. This configuration ensures only appropriately sized material exits the circuit as final product. For plant engineers and procurement teams, evaluating this dynamic duo requires looking past basic functionality. You must thoroughly assess circulating load capacities, tank sizing, and installation footprints. Furthermore, you need to compare long-term operational expenses against alternative setups like hydrocyclones. In this detailed guide, we will explore the core mechanics of this loop. You will learn how to properly size equipment for specific target meshes. Ultimately, we provide actionable, field-tested insights to optimize your industrial grinding circuit.
Efficiency Gain: Closed-circuit setups actively prevent over-grinding, significantly reducing steel ball consumption and specific energy costs.
Mechanical Advantage: Spiral classifiers automatically lift return sand back to the mill feed, eliminating the need for intermediary slurry pumps.
Application Sweet Spot: This combination is highly stable and best suited for separation targets between 20 and 100 mesh.
Installation Reality: Successful implementation heavily depends on precise slope engineering (e.g., 3 to 4 inches per foot for the classifier tank).
We must first deconstruct the individual phases of this self-regulating loop. Understanding the mechanical synergy between the two machines reveals why this setup dominates mineral processing facilities.
The Grinding Phase initiates the reduction process. Raw ore enters the rotating cylindrical chamber. Inside, heavy steel grinding media crush the incoming material. The tumbling action creates massive impact forces. Simultaneously, attrition between the steel balls and the ore further reduces the particle size. However, this single pass never grinds 100% of the material to the target size. The machine discharges a highly mixed slurry. This mixture contains both appropriately sized fines and oversized coarse particles. This turbulent slurry flows directly into the settling pool of the separation equipment.
The Separation Phase relies purely on fluid dynamics, gravity, and minor centrifugal action. Once the slurry enters the spiral classifier tank, particles behave differently based on their mass and volume. We divide the outcome into two distinct streams. First, we have the Overflow, which represents the final product. Finer, lighter particles possess lower settling velocities. They remain suspended in the agitated liquid medium. The continuous inward flow pushes these suspended fines upward until they overflow the discharge weir. Second, we have the Underflow, commonly called return sand. Coarser, heavier particles cannot stay suspended. Gravity pulls them down. They settle firmly at the curved bottom of the inclined tank.
The Mechanical Return phase closes the operating circuit. The machine features a massive rotating spiral shaft equipped with steel blades. This shaft rotates slowly inside the inclined tank. The submerged blades continuously scoop the settled coarse material from the bottom. They convey this wet, heavy sand up the incline. The spiral lifts the material above the liquid pool level. It then dumps the return sand directly back into the mill feed chute.
This continuous cycle creates a self-flowing symbiosis. The closed loop automatically maintains a high and stable return sand concentration. If the ore gets harder, more coarse material simply returns for a second pass. You automatically optimize the internal grinding density. You achieve this dynamic equilibrium entirely without external slurry pumping infrastructure. The machines regulate each other through mechanical gravity and flow rates alone.
Procurement decisions hinge on measurable efficiency gains and financial returns. Engineering teams must evaluate how this equipment pairing alters daily operating expenses. We look primarily at power consumption, consumable lifespans, and circulating loads.
Preventing Over-Grinding, known in the industry as over-break, represents the biggest financial advantage. Open-circuit systems force all material to travel through the entire cylinder length. They often crush already-fine particles into useless slimes. By immediately removing compliant fines, the closed-circuit system prevents this energy waste. You stop spending electricity on grinding finished material. Consequently, operators record a drastic drop in kWh/ton metrics. The energy goes exclusively toward breaking oversized rocks.
Consumable Savings naturally follow the reduction in over-grinding. Fine particles spend significantly less residence time inside the active grinding chamber. This rapid evacuation reduces unnecessary internal friction. Your expensive manganese or rubber mill liners suffer less abrasive wear. They last considerably longer between scheduled replacements. Furthermore, you consume far fewer steel grinding balls per ton of processed ore. This directly lowers your monthly consumable procurement budget.
Circulating Load Considerations play a vital role in process design. Operators must mathematically tune the circulating load. Industry standard practices typically maintain this load between 150% and 300% of the new raw feed. Pushing higher circulating loads dramatically increases overall mill throughput. The machine operates at peak crushing efficiency when stuffed with material. However, this strategy requires a classifier boasting an adequate sand conveying capacity. If the spiral cannot lift the volume of return sand, the entire circuit chokes and fails.
CAPEX vs. OPEX Realities require objective assessment. Adding a large mechanical classifier undeniably increases the initial equipment investment. It also consumes a massive horizontal footprint inside the plant. Despite this higher upfront CAPEX, operators reap rapid OPEX rewards. You completely eliminate the need for intermediary slurry pumps. You erase pump maintenance, gland seal replacements, and pump motor electrical draw from your ledger. The subsequent reduction in grinding energy yields a rapid and sustained return on investment.
You cannot buy these machines off the shelf blindly. Engineering selection demands careful calculation. You must size both components to match your exact metallurgical target mesh. A mismatch guarantees chronic operational bottlenecks.

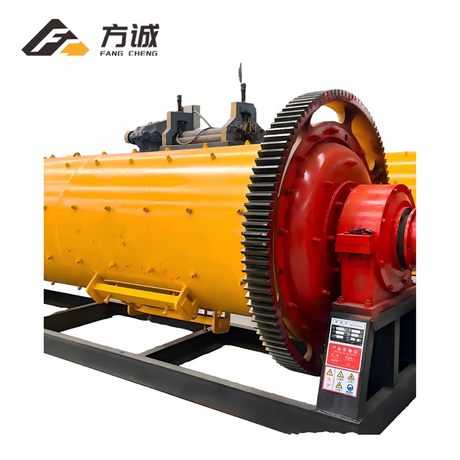

Matching Ball Mill Dimensions serves as the foundational starting point. Mill selection directly dictates baseline capacity. Engineers categorize these cylinders by their Length-to-Diameter (L/D) ratios.
Short Mills: Units featuring an L/D ratio of 2 or less (L ≤ 2D). We deploy these strictly for coarse or primary grinding applications.
Medium Mills: Cylinders featuring an L/D ratio of exactly 3. They handle standard secondary grinding tasks perfectly.
Long Mills: Units featuring an L/D ratio of 4 or greater (L ≥ 4D). We utilize these longer cylinders exclusively for multi-stage fine grinding.
Spiral Classifier Variations present the next engineering choice. Your selection depends entirely on the target overflow particle size. Manufacturers build two primary tank variations to handle different settling dynamics.
High Dam (Weir) classifiers represent the standard choice. In this design, the overflow weir sits higher than the lower submerged bearing. However, the weir remains below the upper edge of the spiral blades. This configuration dominates most standard grinding circuits. It provides the ideal settling pool depth for separating particles between 0.83mm and 0.15mm.
Submerged classifiers tackle finer targets. They feature a drastically deeper pool. Specifically, 4 to 5 full spiral blades remain completely submerged at the overflow end. This immense liquid volume creates a massive, highly stable settling area. Water velocities drop significantly. You require this specific design for very fine separations ranging from 0.15mm down to 0.07mm.
The "100-Mesh" Rule governs the limits of mechanical separation. Every engineer must acknowledge these physical boundaries. If the plant requires a final product significantly finer than 100 mesh, a mechanical classifier loses efficiency. The fluid viscosity and hindered settling mechanics trap ultra-fine particles. At this point, you should abandon mechanical lifting. You must evaluate a hydrocyclone setup instead to achieve those ultra-fine targets.
We summarize these selection parameters in the reference chart below. This chart helps guide initial procurement discussions.
Classifier Type | Target Overflow Size (mm) | Key Structural Feature | Ideal Plant Application |
|---|---|---|---|
High Dam (Weir) | 0.83mm to 0.15mm | Weir sits below upper spiral edge | Standard primary grinding circuits |
Submerged Spiral | 0.15mm to 0.07mm | 4-5 blades fully submerged | Secondary fine grinding circuits |
Even the best equipment fails if installed incorrectly. Physical installation geometry heavily influences daily metallurgical performance. Your engineering team must strictly control tank slopes, chute angles, and rotational speeds.
Tank Slope Angle Limitations dictate two opposing forces. The incline of the classifier directly dictates the liquid pool area. It also controls the mechanical sand conveying capacity. Standard installation slopes typically range from 3 to 4 inches per foot of length.
Follow these slope engineering principles:
Coarser targets (14 to 35 mesh): Demand a steeper slope near 4 inches per foot. This steeper angle deliberately reduces the pool area, forcing faster overflow.
Standard targets (35 to 65 mesh): Require a balanced slope around 3.5 inches per foot.
Finer targets (65 to 150 mesh): Need a flatter slope near 3 inches per foot. This maximizes the pool volume and extends particle settling time.
Chute Gravity Design routinely causes headaches in poorly planned facilities. A common failure point is sudden chute blockage. Slurry loses momentum and drops its solid payload. The feed chute carrying material from the mill to the classifier requires approximately a 1-inch per foot slope. The slurry contains plenty of water here, so it flows easily.
Conversely, the return sand chute back to the mill demands severe steepness. It must slope between 4 to 6 inches per foot. The return sand is heavy, damp, and highly cohesive. Gravity alone must drag this stubborn sludge downward. A shallow return chute guarantees constant blockages and costly plant downtime.
Spiral Speed Control requires strict operator discipline. Operational best practice dictates running the spiral as slowly as physically possible. Operators often try to speed up the rotation to increase return capacity. This is a critical mistake. Higher RPMs churn the liquid. They create massive pool turbulence. This turbulence disrupts the delicate settling process, causing coarse particles to overflow incorrectly. Lower RPMs minimize this turbulence. You get a finer, cleaner overflow. Furthermore, slow rotation drastically extends the mechanical lifespan of the spiral shoes and the main drive mechanism.
Modern plant design frequently forces a choice between mechanical classifiers and hydrocyclones. Each technology solves the classification problem using different physics. They present distinct spatial, mechanical, and operational trade-offs.
Footprint and Verticality represent the most obvious physical difference. Hydrocyclones require minimal horizontal floor space. However, they demand significant vertical clearance. You must mount them high above the grinding floor to allow gravity to feed the return sand. Spiral classifiers behave oppositely. They are structurally bulky. They require a large, flat, and robust horizontal footprint right next to the mill.
Pumping Infrastructure drastically alters maintenance schedules. Cyclones rely entirely on high-wear slurry pumps. They use these pumps to generate the intense centrifugal separation pressure required inside the cyclone cone. These pumps consume massive amounts of electricity and require frequent impeller replacements. Mechanical classifiers lift material using slow, robust gears. They save operators substantial pump maintenance labor and electrical power.
Operational Stability strongly favors mechanical setups. Spiral classifiers are highly resilient machines. They absorb sudden fluctuations in feed rate and slurry density without failing. They naturally self-correct. Cyclones require strict, constant pressure monitoring. They demand real-time automation to maintain consistent separation. A slight drop in pump pressure immediately ruins a cyclone's overflow size.
The Verdict for Modern Plants comes down to application targets. Use the closed-circuit mechanical duo for highly stable, low-maintenance operations. They excel when targeting medium-to-coarse grinding sizes. You should transition to cyclones only under specific conditions. Choose cyclones for ultra-fine grinding targets. Select them if you face strict plant footprint constraints. Finally, they suit highly automated facilities equipped with advanced process control systems.
The closed-circuit configuration remains a dominant industrial standard globally. It earns this status through unmatched mechanical reliability and its self-regulating return loop. More importantly, it possesses the unique ability to drastically cut grinding energy waste. You achieve precise product sizes without enduring excessive consumable costs or heavy pump maintenance.
Before initiating full-scale procurement, buyers should execute these action-oriented next steps:
Evaluate the Target Mesh: Determine your exact particle size. If the requirement drops below 100 mesh, immediately evaluate cyclone alternatives.
Run a Pilot-Scale Test: Never guess on unverified ores. Run a 100 L pilot mill boasting a 100 kg/h capacity to observe real-world settling behavior.
Determine Settling Velocity: Extract the exact settling velocity of your solid particles directly from your pilot test data.
Calculate Circulating Loads: Use these verified metrics to calculate the required circulating load. This math dictates the final physical dimensions of your industrial equipment.
A: Typically, spiral classifiers handle material smaller than 3mm. Larger particles pose severe operational risks. Oversized rocks can easily damage the lower submerged bearing over time. They also risk overloading the spiral conveying mechanism. This mechanical overload can lead to catastrophic motor failure or shaft bending. For optimal performance, always ensure upstream grinding stages adequately reduce the feed size before it enters the pool.
A: Calculating the required settling area involves a precise engineering formula. It is a function of the overflow volume divided by the specific settling velocity of your solid particles at the target mesh size. First, measure your overflow volume in cubic feet per minute. Next, determine your solid settling velocity in feet per minute. Dividing the volume by the velocity yields the effective pool area needed for precise separation.
A: No. This specific equipment pairing is designed strictly for wet grinding circuits. The classifier relies entirely on fluid dynamics to function. It uses the varied settling rates of solids suspended in a liquid slurry to execute the separation. Gravity pulls heavier solids down through the water, while lighter fines overflow. Without a liquid medium to facilitate this buoyancy difference, separation becomes physically impossible.
