Cassiterite is highly brittle. This presents a harsh economic reality for modern processing facilities. If you apply improper size-reduction and sorting methods, you directly cause severe revenue loss through unrecoverable fine slimes. Over-crushing shatters your profits just as easily as it shatters the ore.
Maximizing recovery grades requires a strategic, staged approach across your entire processing circuit. Plant managers must deploy specific tin mining equipment matched exactly to the liberation size of the raw ore. This precise alignment prevents over-milling while capturing liberated minerals instantly at their optimal recovery size.
We will now explore an evaluation framework for matching particle sizes to the correct mechanical separation technologies. You will learn how to balance initial capital investments, operating expenses, and site-specific operational constraints. Read on to master the sizing criteria and equipment selections necessary to build a highly profitable concentrator plant.
Coarse separation (2mm–20mm): Requires equipment with high capacity and vertical stratification capabilities, primarily jig concentrators.
Medium-to-fine separation (0.1mm–2mm): Relies on centrifugal and gravity forces, making spiral chutes the standard for high-throughput pre-concentration.
Fine separation (<0.1mm): Demands precise, low-turbulence separation, where shaking tables excel at upgrading concentrates to final commercial grades.
Pre-procurement requirement: Equipment selection must always be preceded by rigorous mineralogical testing (e.g., washability and liberation analysis) to avoid over-capitalizing on mismatched circuits.
Understanding particle size dynamics is the foundation of profitable mineral processing. Your equipment configuration dictates how much marketable product you actually recover versus how much washes into the tailings dam.
Over-crushing poses a massive financial risk to any processing operation. Traditional milling techniques often grind ore far too aggressively. This aggressive action creates ultra-fine particles known as "tin slimes." Because cassiterite is heavy but extremely brittle, these microscopic slimes behave unpredictably in water. They bypass standard gravity recovery circuits completely. As a result, operations suffer massive yield losses. You spend energy grinding the rock only to lose the valuable mineral.
Industry leaders solve the sliming problem using stage-grinding and stage-recovery. We define this as the methodology of recovering liberated tin as soon as it reaches the appropriate size. You do not force all material down to a microscopic powder. Instead, you screen and separate continuously. Once a particle separates from the host rock, you extract it immediately. This method minimizes unnecessary comminution costs. It also protects the fragile cassiterite from further degradation inside the mill.
Geological origins dictate your processing prerequisites before separation can even begin. Regional differences play a massive role here. Clay-heavy alluvial deposits require entirely different handling compared to hard-rock skarn deposits. Alluvial ores usually require intensive scrubbing and desliming to free the heavy minerals from sticky clays. Conversely, hard-rock deposits demand multi-stage crushing and grinding circuits. You must evaluate your specific ore characteristics to design a functional processing flow.
A well-designed plant routes different particle sizes to highly specialized machines. No single machine can efficiently process the entire size spectrum of a crushed ore feed.
Coarse material requires aggressive vertical stratification. This size range demands machinery capable of handling heavy throughput while rejecting large waste rocks.

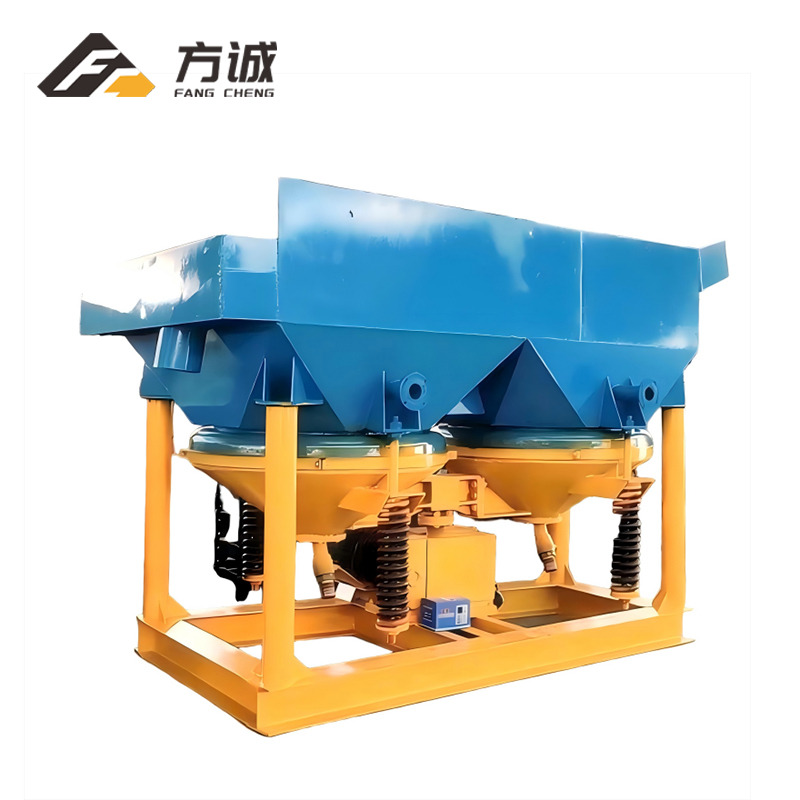

Mechanism: Jigging utilizes upward water pulsation to stratify minerals by their specific gravity. The tin ore jig concentrator forces a column of water up through a screen holding the ore bed. Heavy cassiterite particles sink rapidly during the downward stroke. Lighter gangue minerals remain near the top and wash away over the tailings weir.
Operational Role: Operators use jigs for early gangue rejection. They excel at pre-concentrating coarse liberated cassiterite. By dropping sterile rock early in the process, you drastically reduce the volume of material requiring expensive downstream grinding.
Evaluation Metric: When selecting a jig, you must assess its stroke length and frequency adjustability. These parameters control the expansion of the ore bed. Additionally, monitor water consumption rates. Efficient jigs include internal water recycling features to lower overall utility costs.
Once material drops below 2mm, vertical pulsation loses effectiveness. You need equipment that capitalizes on fluid dynamics and sheer volume.
Mechanism: This technology details the use of centrifugal force, water film flow, and gravity. The tin ore spiral chute operates within a stationary, vertical footprint. As slurry cascades down the helical path, heavy minerals hug the inner radius. Lighter waste flushes toward the outer rim.
Operational Role: Spirals are ideal for roughing and scavenging mid-tier sizes. They offer excellent performance for handling large volumes of material. Furthermore, they feature zero moving parts, ensuring incredible mechanical reliability.
Evaluation Metric: Buyers should look at the pitch and profile design. For example, polyurethane-lined fiberglass offers superior abrasion resistance compared to older cast-iron models. You must also evaluate feed density tolerances. High-quality spirals maintain steady separation even when slurry pulp density fluctuates slightly.
Microscopic particles require gentle handling. Aggressive water flow will wash these valuable fines directly into the tailings pond.
Mechanism: This machine relies on an asymmetrical reciprocating motion combined with a thin film of wash water. The tin ore shaking table moves slowly forward and snaps back quickly. This forces heavy particles to crawl along the riffles while light particles wash down the slope.
Operational Role: It stands as the definitive tool for final cleaning. You use it to upgrade rougher concentrates to final commercial-grade tin. Nothing matches its precision for finishing operations.
Evaluation Metric: Evaluate the deck materials and stroke tunability. Fiberglass decks provide smoother surfaces for fine particle capture. You must always weigh the trade-off between throughput capacity and separation precision. Tables process low volumes, so you typically need them installed in large parallel banks.
Procuring specialized equipment is not a generic purchasing exercise. Plant engineers must evaluate specific performance criteria to ensure long-term viability.
You must calculate the balance between high-volume rougher equipment and low-volume, high-precision cleaner equipment. Spirals move massive tonnage but rarely produce a final saleable grade. Tables produce excellent grades but choke under high tonnage. Integrating tin gravity separation equipment requires matching the output of your roughers to the intake capacity of your cleaners.
Equipment Type | Optimal Size Range | Primary Function | Throughput Capacity | Grade Precision |
|---|---|---|---|---|
Jig Concentrator | 2mm – 20mm | Pre-concentration & Gangue Rejection | Very High | Low/Medium |
Spiral Chute | 0.1mm – 2mm | Roughing & Scavenging | High | Medium |
Shaking Table | Below 0.1mm | Final Cleaning & Upgrading | Low | Very High |
Assess the overall utility draw of the entire circuit. Jigging requires significant water to maintain the pulsating bed. When assessing proposals, evaluate vendors based on their integrated water recycling capabilities. Closed-circuit designs utilizing thickeners and filter presses represent the industry standard. High energy consumption also drains profits. Ensure your motor-driven units feature variable frequency drives (VFDs) for optimized power draw.
Tin ore is highly abrasive. Cassiterite and associated quartz will quickly destroy weak materials. Evaluate the lifespan of internal wear parts carefully. Rubber liners and polyurethane components outlast standard steel significantly. Furthermore, ensure the machinery meets regional safety guidelines. Environmental compliance standards for tailings management grow stricter every year. Your equipment must facilitate clean, compliant waste discharge.
Even the highest-quality machines fail if you deploy them incorrectly. Avoid these common engineering pitfalls when designing your processing flow.
Buying off-the-shelf machinery without conducting a bulk sample test is a massive error. This oversight often results in missing your target recovery grades. Unseen complex mineral associations cause endless headaches. For example, iron or sulfide inclusions might mimic the specific gravity of cassiterite. If you skip pilot testing, you will not discover these inclusions until after commissioning. Always demand a laboratory pilot run first.
We must highlight the severe risk of feeding poorly classified ore into sensitive equipment. You cannot dump unclassified, wildly varying particle sizes onto a single machine.
Screening failures: Feeding large rocks onto a spiral chute damages the profile and disrupts the water film.
Classification failures: Feeding unclassified material into a shaking table destroys its separation efficiency completely. The heavy coarse rocks mix with the light fine sands, rendering the riffles useless.
You must install proper vibrating screens and hydraulic classifiers upstream of your gravity separators.
Failure to implement hydrocyclones for strict desliming ruins extraction rates. If you send ultra-fine slimes directly into standard gravity separation equipment, the process fails. The mud alters the viscosity of the slurry. It acts like a glue. This poor slime management leads to polluted concentrates. It also clogs the riffles and feed ports of your machinery. Always deslime the feed before it reaches the main separation circuit.
Partnering with the right manufacturer is just as critical as selecting the right machine type. Use strict vetting processes to narrow down your options.
Only engage manufacturers who offer in-house laboratory testing on your specific ore sample. Do not accept generic capacity charts.
Demand a custom washability analysis.
Request a detailed liberation study.
Require a customized process flow sheet backed by written recovery guarantees.
Vendors who refuse to test your ore are merely box-movers. You need engineering partners.
Establish a framework for analyzing upfront capital costs (CAPEX) against ongoing operational expenses (OPEX). Every machine carries a different financial footprint.
For example, spirals demand a higher initial physical footprint cost. You need tall steel structures to house them. However, they boast near-zero energy and maintenance OPEX because they lack motors and moving parts. Conversely, motor-driven shaking tables have lower structural costs but require continuous power and routine mechanical maintenance. Balance these factors against your project budget.
Prioritize vendors capable of supplying modular, integrated plants. You want to avoid buying isolated machines from ten different factories. Integrated vendors ensure seamless transitions between crushing, sizing, and separation stages. They coordinate the pipework, the pumping metrics, and the electrical controls. Look for suppliers who offer on-site commissioning and long-term spare parts availability.
Tin recovery relies entirely on a size-dependent process. You cannot extract brittle cassiterite efficiently using a one-size-fits-all approach. The correct configuration of jigs for coarse gangue rejection, spirals for medium-sized bulk roughing, and shaking tables for fine cleaning defines your operation's profitability. Matching the machine to the liberation size prevents slime losses and maximizes your commercial yield.
Technical buyers should immediately audit their current grinding circuits. Determine your exact liberation sizes and request a metallurgical flow sheet analysis from a qualified engineering firm. Identify where you are over-crushing or under-classifying your feed.
We invite you to submit an ore sample for professional laboratory testing today. Let our engineers provide a data-backed equipment recommendation and design a custom plant layout engineered specifically for your deposit.
A: Flotation is generally a supplementary process, not a replacement. It is used primarily for ultrafine cassiterite (<10-20 microns) or for removing sulfide impurities, while gravity separation handles the bulk of the economic recovery. Flotation reagents are expensive, making gravity processing much more cost-effective for the majority of the ore.
A: Water requirements vary heavily by equipment (jigs use the most, spirals use moderate amounts). A modern, closed-circuit design typically reclaims 75-85% of process water using thickeners and filter presses. Efficiently managed plants minimize fresh water intake by strictly recycling overflow water back to the crushing and screening stages.
A: High clay content (common in alluvial tin) requires aggressive pre-washing equipment, such as rotary scrubbers or log washers, before the ore ever reaches jigs or spirals, otherwise, the clay binds to the cassiterite and disrupts specific gravity sorting. Unwashed clay will ruin the separation efficiency of all downstream processing machinery.
