Can a shaker table separate gold from ore?

Extracting microscopic, high-density fine gold presents a complex challenge for plant operators. Miners often struggle with heavily mineralized ore or dense black sand concentrates. They want to maximize yield without losing valuable fine material to the tailings. Chemical extraction methods exist and dominate many modern processing plants. However, mechanical gravity separation remains a highly efficient, low-impact standard for capturing free gold.

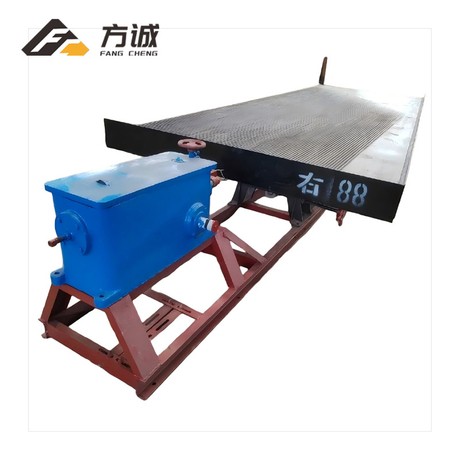

Can this equipment truly separate fine gold from raw ore? Yes. However, success depends entirely on the specific gravity differential of the ore. You also need rigorous pre-screening and precise tuning of your separation equipment. This guide breaks down the underlying engineering principles and implementation realities. Decision-makers evaluating a Shaking Table will learn exactly how to optimize yields, maintain operational stability, and select the right components for their processing circuit.

Key Takeaways

• Physics-Driven Efficiency: Separation relies on a specific gravity differential (gold at ~19.3 vs. common gangue at ~2.65), utilizing stratification and hindered settling to isolate particles down to 10–50 microns.

• Preparation is Mandatory: A shaking table is not a primary crusher; it requires uniform, pre-screened feed (optimally between 20 and 150 microns) to prevent yield loss.

• Operational Sensitivity: Minor fluctuations in water pressure, feed rate, or foundational stability will disrupt the separation band and compromise recovery rates.

• Strategic Placement: Tables are best utilized as secondary or tertiary recovery units, often employed to process black sand concentrates or reprocess historical tailings.

The Mechanics of Separation: How a Shaking Table Isolates Fine Gold

Understanding the physical foundation of gravity processing is crucial. Because gold is exceptionally dense, it reacts differently to lateral water flow compared to lighter gangue minerals. Lighter materials like quartz or feldspar wash away easily. Gold resists this lateral push due to its extreme density. We rely entirely on this specific gravity differential to isolate precious metals.

Stratification and hindered settling drive the actual separation. The machine employs an asymmetric stroke to create differential motion. A slow forward stroke pushes material along the deck. A rapid reverse stroke pulls the deck back, causing the particles to slide forward due to inertia. This ratcheting motion spreads material evenly across the surface.

Hindered settling happens between the transverse water flow and the deck's machined grooves. These riffles create upward micro-currents in the wash water. Heavy particles sink to the deck surface. They move longitudinally along the grooves toward the concentrate discharge. Meanwhile, lighter materials push upward into the faster water currents. The wash water carries them over the riffles straight to the tailings discharge.

Operators must understand performance ceilings. Highly tuned tables can achieve upward of 95%+ recovery of free gold. However, intermediate-density "bone" materials can disrupt the flow. Highly mixed mineralogies require careful adjustment to maintain this efficiency.

Evaluating Ore Compatibility: When a Shaking Table Makes Financial Sense

Black sand concentrates present the ultimate test for any gravity circuit. Traditional methods like standard sluice boxes often fail here. Sluice riffles pack solid under the immense weight of dense black sands. The continuous motion of the table prevents this packing. It excels at separating fine gold from heavy black sands by keeping the mineral bed fluid and active.

Tailings reprocessing offers a massive yield recovery opportunity. Historical extraction methods often left ultra-fine gold behind. You can capture this lost value by deploying modern separation decks. Operators frequently reprocess legacy tailings to turn historical waste into a profitable concentrate stream.

We must also contrast hard rock and alluvial deposits. They require vastly different preparation phases. Hard rock demands extensive milling. You must completely liberate the gold from the host rock before table processing. Alluvial deposits mostly require rigorous classification. You simply wash and screen the gravels to isolate the target heavy sands.

You must respect the strict particle size limitation. Broad particle size distributions cause unwanted turbulence. Coarse rocks disrupt the delicate micro-currents, throwing fine gold into the tailings. Set realistic expectations for your circuit. A deck cannot perform optimally if you feed it highly mixed sizes simultaneously.

Implementation Realities: Critical Variables for Optimal Yield

Foundational rigidity represents the most common point of failure. Micro-vibrations from poor installation destroy the stratification layer. You must bolt the equipment to a heavily reinforced concrete foundation. A vibration-dampening pad adds extra protection against erratic movements.

Deck design and material selection directly impact your recovery. Traditional high-turbulence riffles serve general bulk processing well. However, modern plateau and machined-groove designs offer smoother flow profiles for ultra-fine gold.

Kinematic tuning dictates your baseline operational targets. Standard operating speeds typically sit between 250 and 300 RPM. You must master the stroke-to-size ratio. Coarser feeds require longer strokes, usually between 7/8 to 1 inch. Ultra-fine feeds require higher speeds. They need shorter strokes and shallower deck slopes to prevent gold from washing away.

Feed and wash water consistency are non-negotiable. Manual or gravity-fed surge loading will ruin your recovery band. We strongly recommend automated slurry pumps. You can also use mechanical screw or belt feeders. These maintain a perfectly uniform feed rate. They prevent the gold band from wandering off the designated concentrate collection point.

Integrating a Shaking Table for Gold Recovery into Your Existing Circuit

Proper integration transforms an average plant into a highly efficient operation. When you implement a Shaking Table for Gold Recovery, you must sequence your equipment correctly. Pre-screening and classification remain the most critical steps.

1. Upstream Roughing: You rarely use this machine as a standalone primary recovery unit. It pairs best downstream of rougher units. Deploy spiral concentrators or centrifugal bowls first. These reduce the bulk volume of the ore.

2. Strict Classification: Invest in high-quality classifiers. Hydrocyclones and vibratory screens are mandatory. The target feed must be highly classified. Dial your screens into the 20 to 150-micron range for maximum table efficiency.

3. Final Finishing: The highly concentrated, uniform material finally drops onto the deck. Because you removed the oversized rock and excess waste, the deck isolates the high-purity gold flawlessly.

Plant design must accommodate sampling and quality control. Ensure your layout allows operators physical access to the deck's discharge edge. They must visually monitor the separation band constantly. Operators need space to sample middlings quickly. They also need clearance to adjust the tilt and water valves in real time. Do not cram the deck against a wall.

Buyer’s Framework: Assessing Scalability and Equipment Viability

You must match equipment capacity to your operational footprint. Small-batch or lab-scale tables process around 100 lbs/hr. These work perfectly for prospecting or final clean-up rooms. Industrial decks process 2 to 10 tons/hr. Never exceed the maximum rated tonnage of your deck. Overloading the deck exponentially increases gold loss.

Consider the trade-offs between manual calibration and automation. Modern tables integrate automated sensors. They adjust deck slope and wash water flow dynamically based on slurry density. This reduces human error significantly. Manual tables carry a lower upfront price threshold. However, they rely heavily on highly skilled, attentive labor to maintain peak efficiency.

Environmental and permitting advantages should guide your purchasing decisions. These gravity systems lack toxic chemical reagents entirely. You avoid complex permitting hurdles associated with cyanide or mercury. They also boast exceptionally low power consumption. This mechanical simplicity presents a direct business advantage for strict regulatory compliance.

Conclusion

A shaking table functions as an extremely capable, chemical-free finishing tool for separating fine gold from ore. Your success depends on a favorable specific gravity differential and a highly regulated feed. By controlling water pressure, particle size, and foundation stability, you can consistently capture gold down to 50 microns.

We encourage decision-makers to start with a metallurgical bench test. Send a specific ore sample to a lab before buying large industrial units. Verify the specific gravity delta of your local gangue materials. Confirm your exact particle size distribution first. This data will help you confidently commit to a specific deck size and the perfect riffle pattern for your mine.

FAQ

Q: What is the smallest micron size of gold a shaking table can recover?

A: Under ideal conditions with highly classified feed and minimal turbulence, premium tables can recover fine gold down to approximately 10 to 50 microns (325 mesh).

Q: Can a shaking table replace a centrifuge in a gold plant?

A: Not entirely. Centrifuges are excellent high-volume roughers for capturing fine gold quickly, but they produce a lower-grade concentrate. Shaking tables are finishing tools used to upgrade that concentrate into high-purity, smeltable gold.

Q: Why is my gold washing into the tailings on the shaker table?

A: This is typically caused by four factors: a feed rate that exceeds the table's capacity, inconsistent wash water pressure causing sudden surges, a deck slope that is too steep, or failure to properly pre-screen the material, resulting in coarse rocks displacing fine gold.
