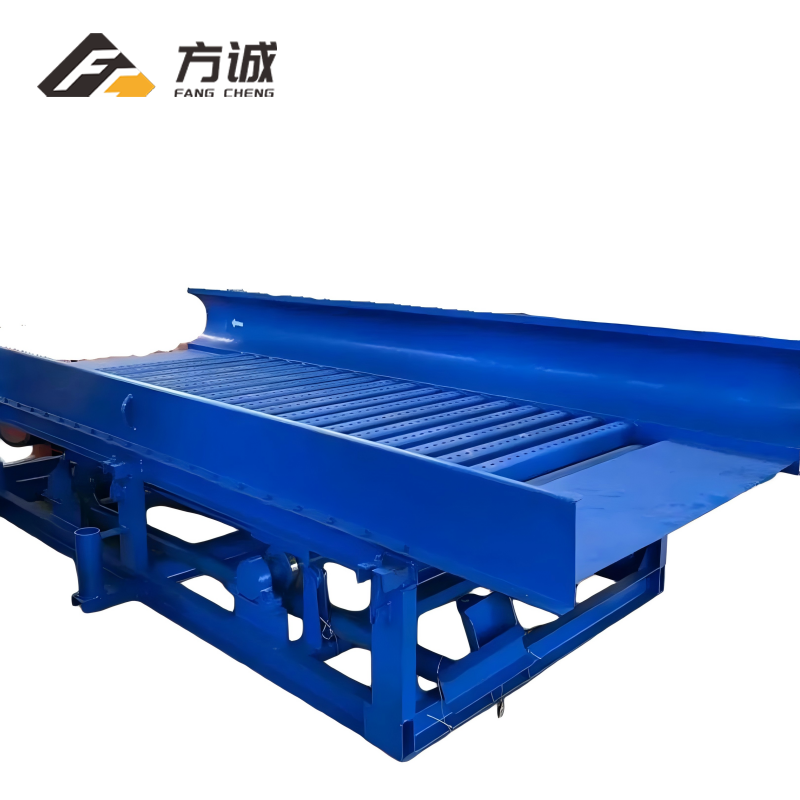

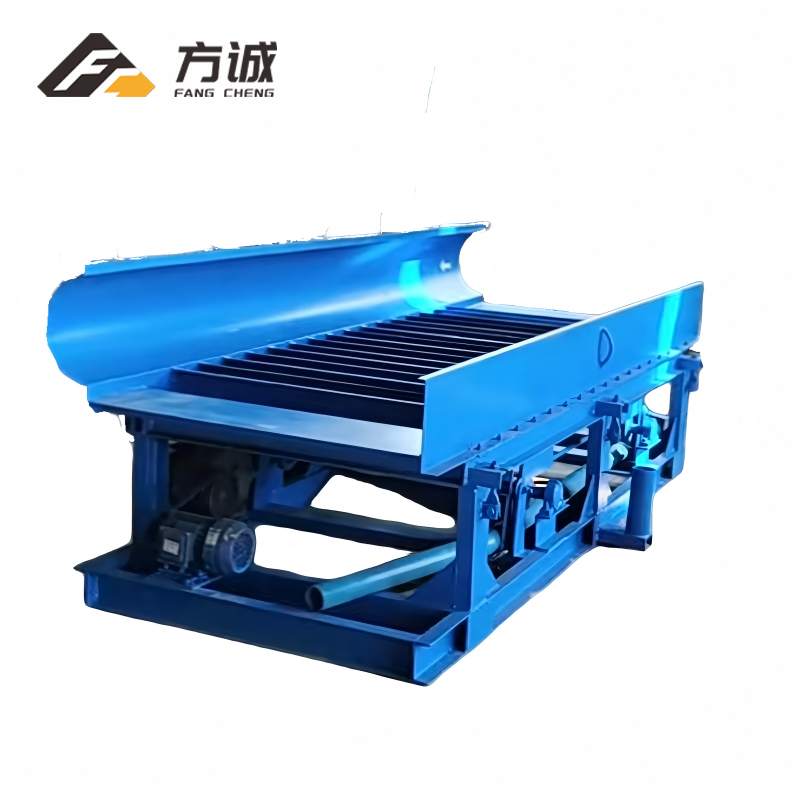

High-Recovery Vibrating Gold Sluice for Placer Mining

High-Recovery Vibrating Gold Sluice for Placer Ore


Availability:

Quantity:



Inquire Add to Basket

【Capacity】0-35m³/h
【Feeding Size】<20mm
【Application】The Vibrating Gold Sluice is designed for placer gold processing, including alluvial gold concentration, eluvial deposits processing, tailings reprocessing and small-scale mining.
【Service】Vibrating Gold Sluice Box design, mineral separation test, mineral processing design, on-site installation or remote installation.

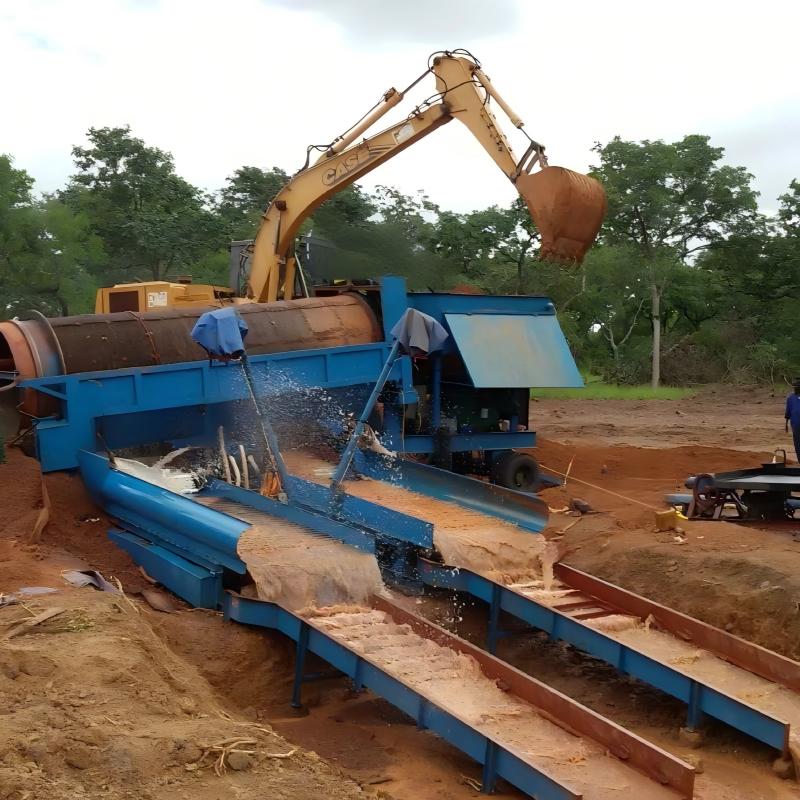

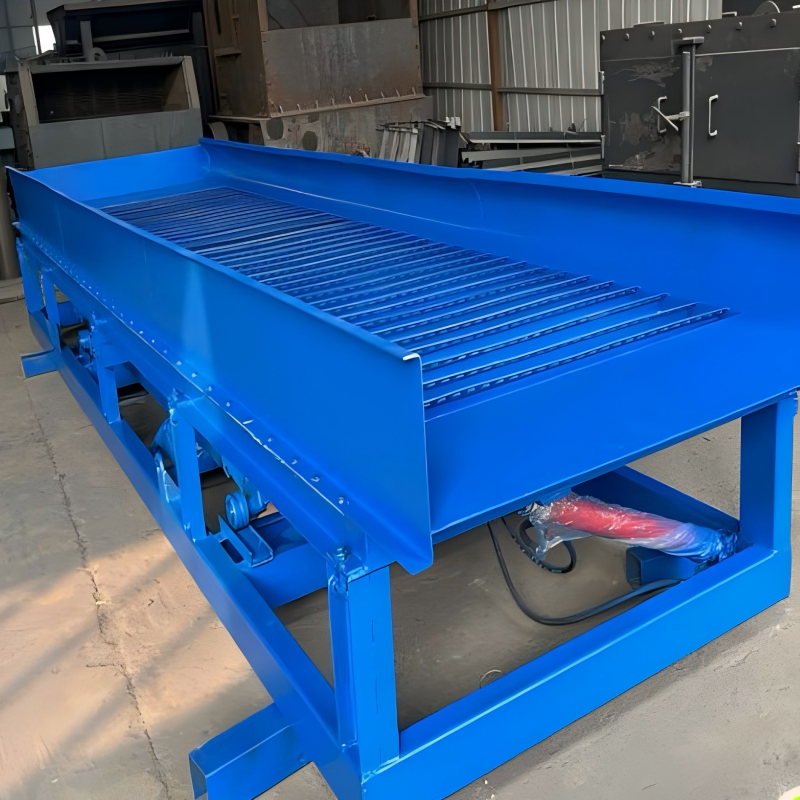

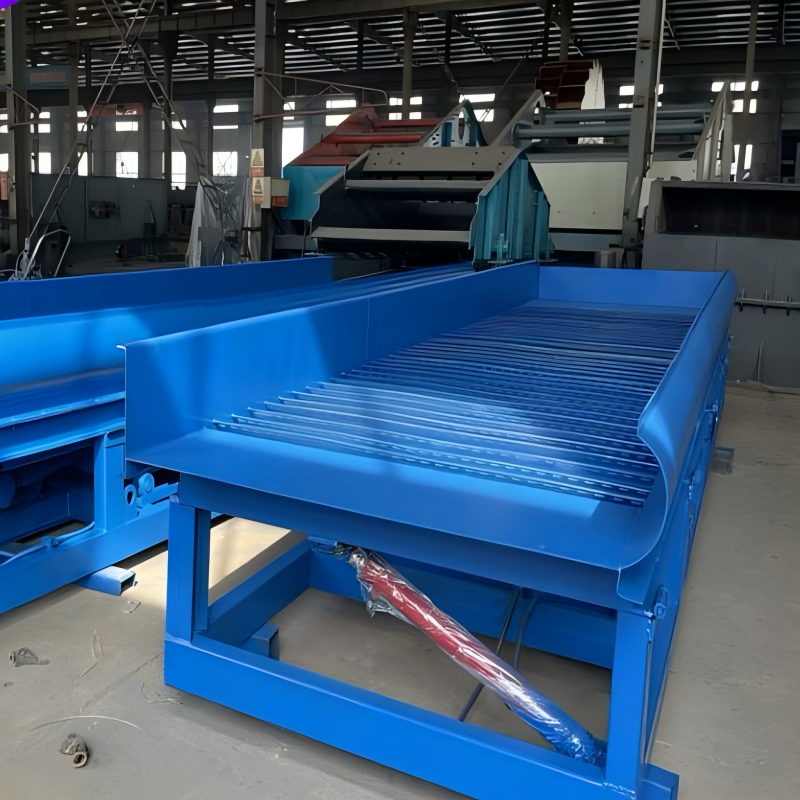

The Vibrating Gold Sluice is an innovative gold recovery device optimized for placer deposits. Its patented rubber deck + crank-link mechanism generates 2-4Hz vertical pulsations, combining the high concentration ratio of traditional sluices (tens to hundreds times higher than jigs) with anti-blinding performance.
During operation, gold particles are continuously agitated by the pulsating deck for efficient separation. Though with lower concentrate yield, it achieves 20-30% higher recovery than fixed Carpet Sluice Box. Ideal for small/medium placer mines and mill tailings reprocessing, featuring simple structure, low power consumption, and minimal maintenance.

Vibrating Gold Sluice Adjustable Gold Sluice Mining sluice box Water-Saving Sluice Rubber Deck Sluice

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Working Principle

Operating on gravity separation, the vibrating gold sluice scombines pulsating motion + hydraulic washing for gold recovery. As slurry flows through, light minerals wash away while gold (density 19.3g/cm³) settles under 2-4Hz rubber deck pulsation.

Specially designed riffles create vortex zones where gold accumulates through mechanical-hydraulic synergy. The system maintains traditional sluice's high upgrading ratio, while eliminating material blinding, achieving 20-30% higher recovery than static sluices.

Advantages

High Recovery: 90% gold recovery (3x fixed sluices) with anti-blinding pulsation
Adjustable: Customizable frequency (2-4Hz), amplitude (5-10mm), and slope
Eco-Friendly: <1.5kW power + 40% less water usage
Low Maintenance: Wear-resistant rubber deck, <1 malfunction/year
High Capacity: 0-40m³/h processing for small/medium placer mines

Technical Parameters

Vibrating Gold Sluice
Model	FGS-12	FGS-15
Capacity (m³/h)	20-25	30-35
Feeding Size (mm)	<20	<20
Feeding Density (%)	30	30
Water Required (m³/h)	40-50	60-80
Power (KW)	1.1 KW Driving Motor 0.8KW Lifting Motor	2.2 KW Driving Motor 0.8KW Lifting Motor
Recovery（%）	90	90
Frequency (/min)	28-30	28-30
Slope angle for installation	6°-7°	6°-7°
Concentration Cleaning Up Cycle (h)	4	4
Weight (kg)	750	1100
Dimension (mm)	3200x1200x730	4000x1500x730
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

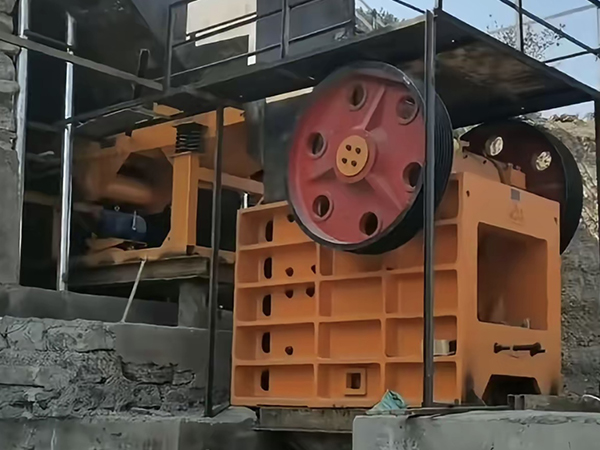

Rock Gold Mine - South Sudan

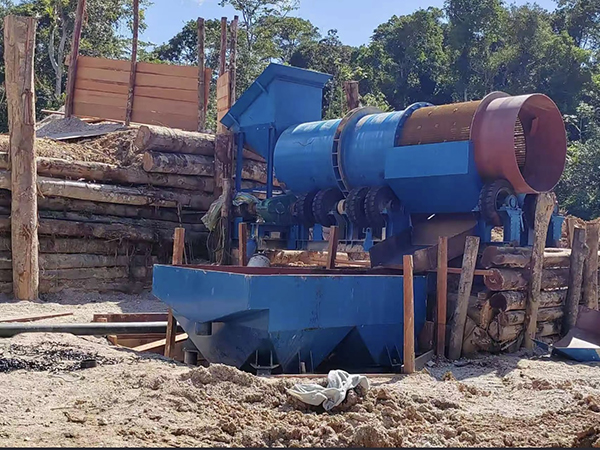

Alluvial Gold Mines - Zimbabwe

Chromite - South Africa

Alluvial Chrome Ore - Zimbabwe

Alluvial Tin Mines - Bolivia

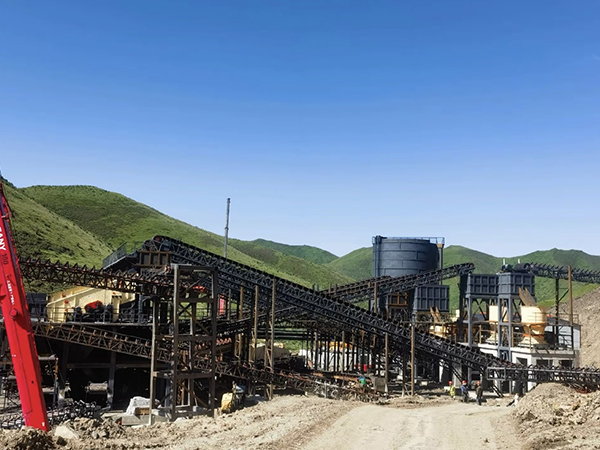

Rock Tin Mines - Indonesia

Copper Oxide - Russia

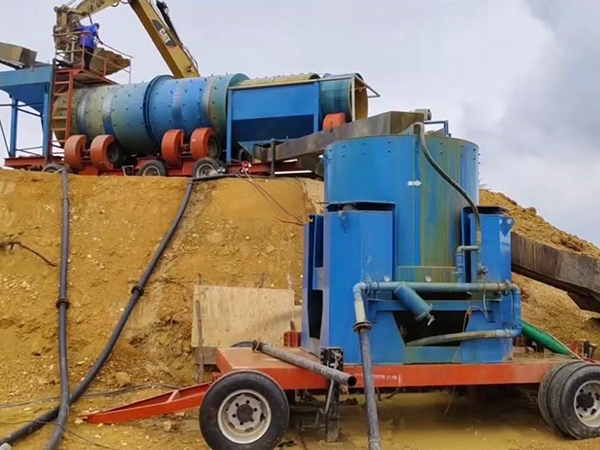

Tantalum Niobium Ore - Nigeria

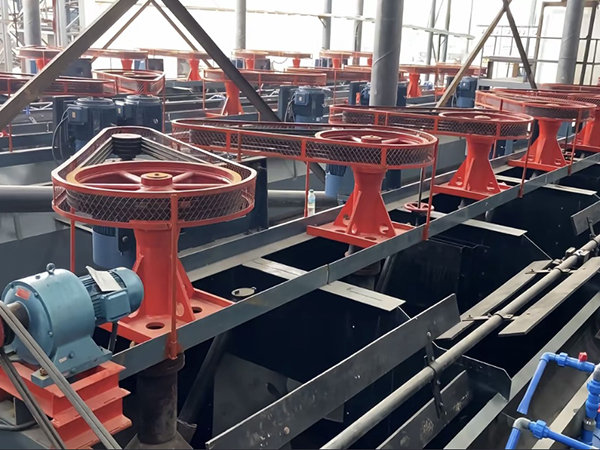

Lithium Mines - Brazil

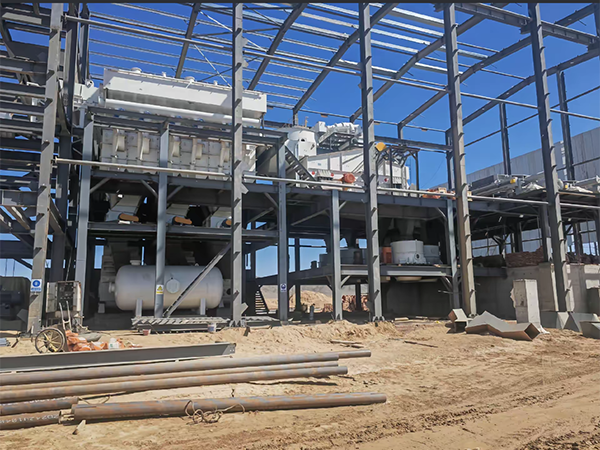

Kaolin Mine - Uganda

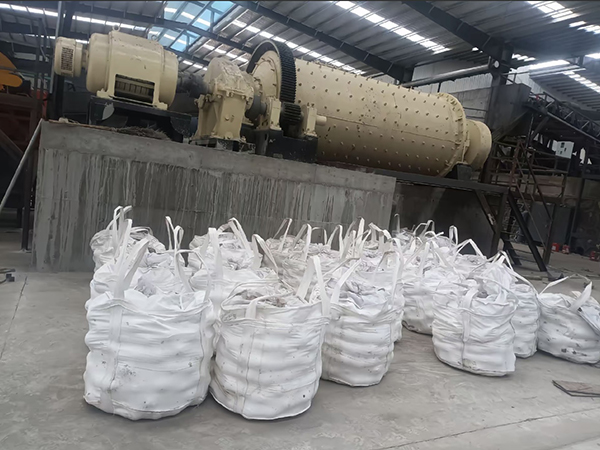

Lead Zinc Mine - Morocco

Manganese Ore - Kenya

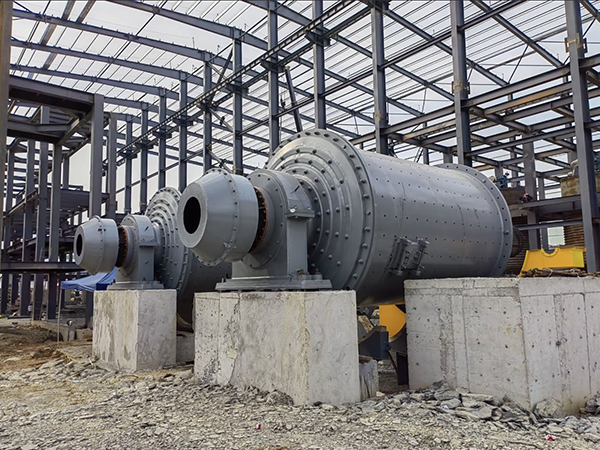

Hematite - South Africa

FAQ

FAQ 1: What's the gold recovery rate compared to traditional sluices?

A: Our vibrating sluice achieves 90% recovery - 3x higher than fixed sluices (30%). The pulsating rubber deck prevents material blinding while the riffle design optimizes fine gold capture down to 100 mesh (0.15mm).

FAQ 2: How to adjust for different gold sizes?

A: Simply modify: ① Frequency (2-4Hz for coarse/fine gold) ② Deck angle (5-15°) ③ Water flow. Includes guide marks for quick setup.

FAQ 3: Why choose this over a trommel?

A: ① 50% less water ② 3x higher concentration ratio ③ Portable (1/4 the weight). Best for small deposits <20t/h.
