Procurement decisions in mineral processing carry immense weight. Choosing inefficient equipment directly translates to lost cassiterite washing away in the tailings. Plant managers cannot afford guesswork when fine margins dictate operational success.
Cassiterite features a high specific gravity ranging from 6.8 to 7.1. Typical gangue minerals hover much lower, around 2.6 to 2.8. This stark physical contrast establishes a clear baseline. It makes gravity separation the most economical and standard primary recovery method globally.
We will objectively evaluate and compare core separation machines in this guide. You will discover how to configure an optimal, high-recovery circuit. Our analysis empowers engineers to scale capacity efficiently. You can capture every profitable grain of tin.
Feed size dictates equipment choice: Jigs excel at coarse roughing, spiral chutes handle mid-range continuous concentration, and shaking tables are critical for fine-particle cleaning.
Circuit integration over standalone machines: Maximum recovery requires a staged approach (roughing, scavenging, cleaning) rather than a single "magic bullet" separator.
Throughput vs. Footprint: Scaling a 100tph plant requires balancing the massive footprint of shaking tables against the vertical efficiency of spiral chutes.
Water management is a hidden bottleneck: Effective tin ore gravity separation relies heavily on consistent, manageable water flow and slurry density.
Managers often face complex choices when upgrading recovery plants. You must evaluate various extraction methods. Gravity separation consistently outperforms alternatives in basic operational metrics. Let us examine the practical business case.
Consider the daily cost-to-output ratio. Gravity separation demands very low operational costs. It requires minimal power. It completely eliminates expensive chemical reagents. Flotation requires constant chemical top-ups. Magnetic separation draws immense electrical power. Gravity circuits sidestep these massive daily expenses. You rely primarily on gravity and water flow.
Environmental realities strongly favor gravity methods. Strict mining zones impose heavy penalties on chemical runoff. alluvial tin processing via gravity separation produces a minimal environmental footprint. You do not introduce toxic chemicals into the local water table. This cleaner approach accelerates permitting approvals. It ensures easier compliance audits.
However, operators must confront the "no one-size-fits-all" reality. Many novice buyers believe any off-the-shelf separator works universally. This misconception destroys profit margins. Raw ore characteristics must dictate your specific equipment roster. High clay content requires aggressive scrubbing. Unique particle size distributions demand specific classifiers. You must tailor the alluvial tin mining equipment directly to the geological profile of your deposit.
Modern circuits rely on three foundational machines. Each handles a specific particle size range. They perform distinct roles in the recovery process. We break down their mechanisms and operational traits below.

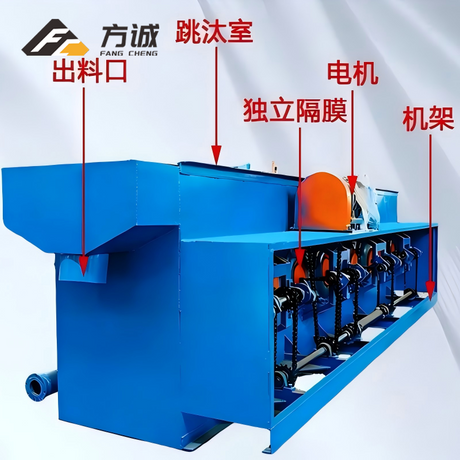

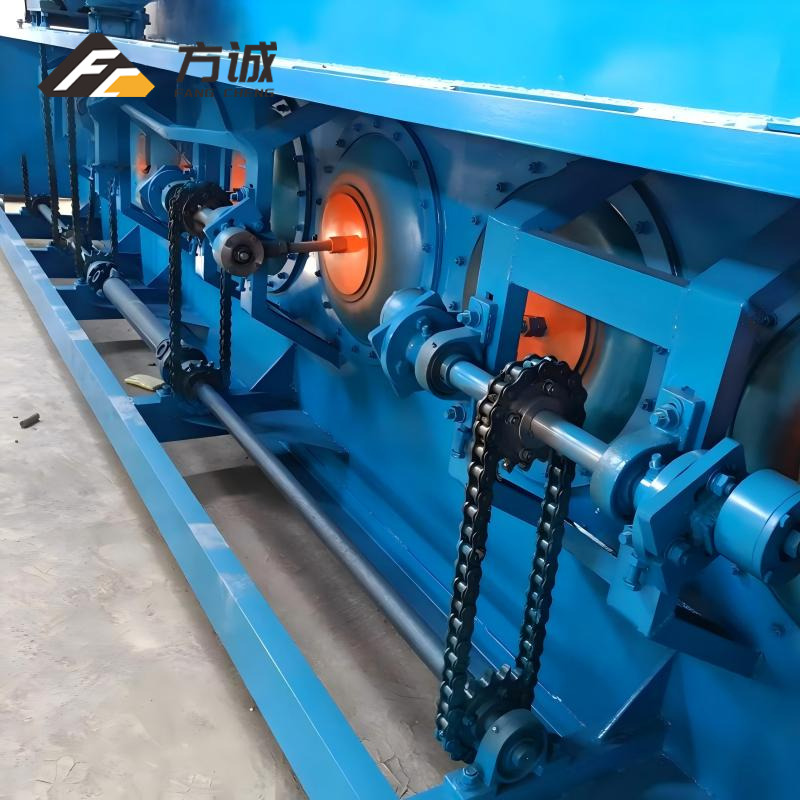

The tin jig concentrator serves as the frontline defender in most plants.
Mechanism: It uses a pulsating water column. This pulsation pushes water up through a screen. It stratifies minerals strictly by specific gravity. Heavy cassiterite sinks. Lighter gangue washes over the top.
Optimal Feed Size: It targets particles between 2mm and 20mm. Some specialized models handle even coarser gravels.
Plant Role: The jig acts as the primary rougher. It discards huge volumes of lightweight barren tailings early. This early rejection drastically reduces the downstream load.
Pros & Cons: Jigs offer incredibly high throughput. They handle fluctuating feed grades robustly. However, they struggle significantly to recover fine tin particles under 0.5mm.
The tin spiral chute bridges the gap between coarse and fine recovery.
Mechanism: Slurry flows down a helical path. The machine utilizes a complex mix of centrifugal force, gravity, and fluid dynamics. Heavy particles hug the inner profile. Lighter particles sweep to the outer edge.
Optimal Feed Size: It processes materials ranging from 0.03mm to 2mm.
Plant Role: Spirals work ideally for roughing or scavenging finer materials. They capture particles escaping the jig. Plants often use them as a high-volume pre-concentration step before final cleaning.
Pros & Cons: They feature zero moving parts. They require almost no maintenance. They are highly space-efficient vertically. Conversely, they provide lower enrichment ratios than other cleaners. They also react sensitively to sudden changes in feed density.
The tin shaking table acts as the surgical tool of the circuit.
Mechanism: It employs an asymmetrical reciprocating motion. A thin film of wash water flows over a riffled deck. The heavy tin travels along the riffles. The lighter sand washes over them.
Optimal Feed Size: It excels in the 0.037mm to 2mm range.
Plant Role: Tables serve as the ultimate cleaner. They sit at the end of the circuit. They upgrade rougher concentrates into high-grade, sellable tin concentrate.
Pros & Cons: Tables yield the absolute highest concentrate grade. They allow operators visual monitoring of separation bands. The primary drawback remains low single-unit throughput. They demand a massive horizontal footprint. High-tonnage plants require dozens of units.
Equipment Type | Optimal Feed Size | Primary Circuit Role | Key Advantage | Main Limitation |
|---|---|---|---|---|
Jig Concentrator | 2mm - 20mm | Primary Roughing | High throughput capacity | Loses fines under 0.5mm |
Spiral Chute | 0.03mm - 2mm | Scavenging / Pre-concentration | Zero moving parts, vertical | Sensitive to slurry density |
Shaking Table | 0.037mm - 2mm | Final Precision Cleaning | Maximum concentrate grade | Large footprint, low capacity |
Successful tin ore gravity separation relies entirely on process flow design. Slapping machines together haphazardly guarantees failure. You must sequence the equipment logically.
Pre-processing remains absolutely non-negotiable. Many alluvial deposits contain sticky clays. These clays trap fine tin particles. If you send unwashed ore into a separator, you will lose tin. Washing and screening must precede gravity equipment. You should employ rotary scrubbers or heavy-duty trommel screens. They break apart clay matrices completely.
We see a standard multi-stage circuit dominate successful operations. It generally follows a distinct three-step progression.

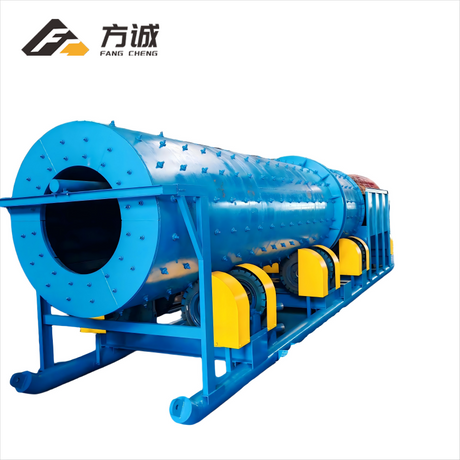

Stage 1 (Coarse Recovery): Trommel screen underflow feeds directly into the jig concentrators. The jigs quickly separate the coarse, heavy cassiterite from large barren gravels.
Stage 2 (Mid-Range Scavenging): The plant routes jig tailings or mid-sized screened fractions into a spiral chute bank. The spirals catch finer tin particles escaping the primary roughers.
Stage 3 (Final Cleaning): Concentrates gathered from jigs and spirals move to the final stage. If particles remain locked in quartz, a small rod mill grinds them. Otherwise, they flow directly onto shaking tables for final upgrading.
Managing tailings and scavenging operations prevents hidden losses. You should never discard middlings directly. Route middling streams back into the grinding circuit or the spiral feed. This recirculating load strategy prevents valuable fine cassiterite from permanently exiting the plant.
Plant managers must look beyond theoretical catalog specs. Scaling up operations introduces complex logistical hurdles. A thorough evaluation ensures smooth procurement.
Throughput scalability requires precise calculation. You cannot scale machines at a 1:1 ratio. Suppose you scale from 100tph to 500tph. One large jig might handle 30tph to 40tph comfortably. You need relatively few jigs. Conversely, a standard shaking table processes barely 1tph to 2tph. A 500tph plant might require an enormous floor of 30+ tables for the cleaning stage alone. You must balance the spatial requirements early.
Power and water availability dictate site viability. Gravity equipment heavily consumes water. You must evaluate the site's raw water capacity immediately. Implement closed-circuit water recycling systems. Size your slurry pumps to handle thick tailings reliably. Without a robust water loop, the plant will stall.
Assess equipment durability and wear parts rigorously. Silica sand acts like sandpaper on machinery. Material quality matters. Choose polyurethane or wear-resistant fiberglass for spiral chutes. Specify high-grade, abrasion-resistant deck liners for shaking tables. Inferior plastics degrade rapidly under constant slurry friction. This degradation forces unscheduled maintenance downtime.
Finally, scrutinize manufacturer capabilities. Do not just buy standalone catalog machines. Choose vendors who provide comprehensive metallurgical testing. They should offer custom circuit flowsheet design based on your ore samples. A true manufacturing partner ensures the machines integrate properly.
Experience reveals several common traps during plant rollout. Acknowledging these risks prevents costly operational delays.
The "Sticky Ore" Trap: Operators frequently underestimate clay severity. Failing to adequately wash lateritic alluvial deposits ruins efficiency. Thick clay clogs jig beds instantly. It alters the slurry viscosity. This renders spiral separation entirely ineffective.
Improper Sizing of Feed: You must classify materials tightly. Skipping hydrocyclones or hydraulic classifiers before the shaking table proves disastrous. Wide size ranges on a table deck lead to poor stratification. The wash water sweeps valuable fine tin away.
Overpromising on Recovery Rates: Do not rely purely on raw equipment specs. Manufacturers calculate specs under ideal laboratory conditions. Real-world recovery relies heavily on operator skill. You need consistent feed rates. You must enforce routine calibration of stroke lengths and water pressure.
Operators must monitor slurry density continuously. Spirals fail if the feed becomes too dilute. Jigs choke if the feed lacks sufficient hutch water. Training your floor staff to recognize these visual cues saves tons of product annually.
Successful alluvial tin processing always relies on pairing the correct gravity separation method with the specific size fraction of the ore. You cannot force a single machine to handle an infinite size range. Jigs handle the coarse rocks. Spirals manage the high-volume mid-range. Tables secure the ultra-fine profits.
We recommend a mandatory next step for all project managers. Conduct a thorough mineralogical analysis first. Perform a bench-scale metallurgical test on your raw ore. Do this long before committing capital to full-scale plant procurement. Testing exposes hidden clay issues and locking characteristics.
Take action today. Engage with a qualified mineral processing engineer. Have them design a custom flowsheet and build a targeted equipment shortlist tailored to your exact deposit.
A: The shaking table remains the industry standard for cleaning fine particles down to 0.037mm. For ultra-fine tin below 0.05mm, centrifugal concentrators offer exceptional recovery. They apply high G-forces to capture micro-particles that would otherwise float away in conventional wash water.
A: A typical gravity circuit requires between 3 to 5 cubic meters of water per ton of raw ore processed. Because this volume is massive, modern plants must implement closed-circuit recycling systems. Thickener tanks and hydrocyclones help recover up to 80% of the process water.

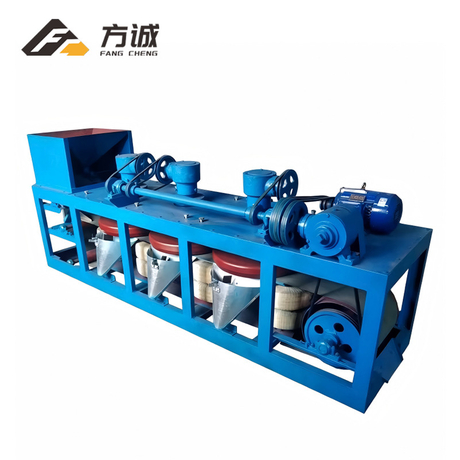

A: No. Cassiterite is non-magnetic. Gravity separation acts as the primary recovery method. Magnetic separation serves only as a supplementary cleaning step. It removes associated magnetic impurities like iron oxides or tantalum-niobium from the final gravity concentrate.
A: Fines loss usually stems from three operational errors. First, the stroke length or frequency might be mismatched to the feed size. Second, insufficient hutch water pressure fails to keep the bed dilated. Third, feeding unclassified material allows fines to wash over the weir prematurely.
