Complete Guide: Shaking Table for Mineral Recovery

Gravity separation remains a foundational, high-efficiency method for mineral beneficiation. Maximizing recovery grades requires precise equipment selection. It also demands stringent parameter control. Plant operators constantly seek ways to boost yield without increasing mechanical complexity. They need reliable solutions for complex ore bodies.

Modern chemical extractions exist today. However, gravity-based equipment offers an essential, zero-reagent physical separation mechanism. We rely on fluid dynamics and asymmetric differential motion to trap valuable heavy minerals. Lighter waste material washes away naturally. Balancing high concentrate grades against total recovery rates remains an ongoing industry challenge.

Plant managers and metallurgical engineers face hurdles transitioning from laboratory testing to commercial-scale deployment. You must evaluate specific ore characteristics carefully. You must match them to the correct deck specifications. You also need smart integration strategies. We will explore how to optimize these variables to ensure a profitable return on your investment.

Key Takeaways

• Precision sizing and feed preparation (optimal at 15%–30% pulp density) are critical to preventing fine particle masking.

• Selecting the right deck type (e.g., 6S vs. Yunxi) and material (FRP vs. EPDM) dictates operational longevity and maintenance overhead.

• A shaking table for fine gold separation can successfully recover free-milling gold particles as fine as 20 to 50 microns without the use of chemical reagents like mercury.

• Strategic series and parallel arrangements compensate for the equipment's inherently low single-unit throughput and large footprint footprint.

Defining Success Criteria for Your Shaking Table Deployment

Heavy mineral recovery often struggles with a fundamental business problem. You must balance high concentrate grades against total recovery rates. Plant operators want pure concentrates to maximize sale value. However, pushing for extreme purity often forces valuable minerals into the tailings. Mitigating the environmental risks of chemical processing adds another layer of complexity. You face strict regulations regarding chemical runoffs. A Shaking Table solves these issues by relying purely on physical forces.

You must establish strict working parameters early in the project. Particle size constraints dictate your overall separation success. Shaking tables operate optimally for particle sizes between 3mm and 1mm when handling coarse feeds. The fluid dynamics struggle to push particles larger than 3mm efficiently across the riffles. Conversely, the equipment shines when handling much smaller materials. Modern tables easily drop to 0.074mm for standard slimes. They can even target 20 to 30 microns for highly liberated metallic ores.

The application scope spans multiple lucrative industries. We see massive success in precious and base metals. It acts as a highly effective Shaking Table for Fine Gold Separation. It captures free-milling micro-gold beautifully. You can also deploy it for tin, tungsten, and rare earth elements. These minerals possess high specific gravities. They settle into the deck riffles rapidly.

Emerging applications go far beyond traditional mining. The e-waste and circular economy sectors adopt these tables aggressively. Recyclers face huge volumes of crushed printed circuit boards. You can separate high-value metals from PCB fiberglass and toxic resins. This enables a zero-waste physical recovery loop. You extract the precious metals prior to sending materials to complex chemical refining facilities. This slashes hazardous chemical consumption significantly.

Evaluating Equipment Types and Deck Configurations

Selecting the right model transforms your production outcomes. You must align equipment features directly with your target outcomes. Different ores demand entirely different mechanical motions. Manufacturers provide distinct model types to address these specific metallurgical profiles.

Consider the core differences among standard models:

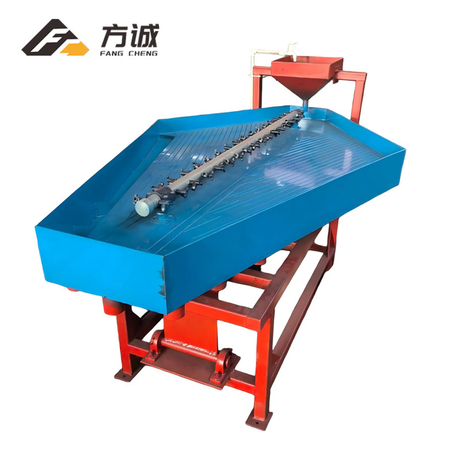

• 6S Shaking Table: This model provides a broad stroke adjustment range. It suits standard coarse sand applications best. You will use it primarily for particles spanning 0.5 to 2.0 millimeters.

• Yunxi Type: This variant features highly distinct differential motion profiles. Engineers designed it specifically for fine-particle recovery. The asymmetric "slow forward, fast backward" snap is much sharper here.

• Suspended Multi-Deck: Shaking tables suffer from a large physical footprint. Suspended multi-deck designs address this primary drawback directly. They stack multiple decks vertically. This multiplies your throughput per square meter. It works exceptionally well for ultra-fine -30 micron particles.

Deck material resiliency determines your maintenance cycles. Older wooden decks warped easily and required constant resurfacing. Today, the industry standard relies on FRP. Fiberglass Reinforced Plastic provides excellent anti-corrosion properties. It offers massive wear resistance. It maintains rigid structural integrity against extreme temperature fluctuations.

Some operations prefer EPDM rubber coverings over standard FRP. Laboratory tests prove EPDM provides unique benefits. It delivers an excellent friction coefficient. This specific friction traps heavy micro-particles tightly inside the riffles. It prevents fast-flowing wash water from blowing fine gold into the tailings launder.

You must actively manage implementation risks. Environmental exposure degrades equipment rapidly. Direct sun exposure and dry storage environments warp sensitive decks. A warped deck ruins the precise transverse water flow. You will lose heavy minerals immediately. Always specify resin-based filler compatibility. You will need this filler for ongoing wear-surface repairs along the heavy impact zones.

Equipment Comparison Chart

Calibrating Operational Parameters for Peak Recovery

Expertise in feed preparation dictates your separation success. You must avoid mixed-size feeds at all costs. Coarse particles trap fine heavy minerals underneath them. Fine slimes under 0.037mm cause entirely different problems. They increase the overall pulp viscosity dramatically. Thick pulp hinders heavy mineral settlement. The fine gold never reaches the deck floor.

Follow these essential hydro-classification rules:

1. Pre-classify all incoming material strictly using hydro-cyclones or fine screens.

2. Target very narrow size bands. Sort feeds into distinct 0.2mm, 0.1mm, or 0.074mm streams.

3. Feed each specific size band to a dedicated, uniquely calibrated table.

4. Maintain a strict pulp density ranging from 15% to 30%. Excessive water dilutes the settling force. Insufficient water creates a thick, unworkable mud.

Stroke and frequency dynamics control the mechanical separation. You adjust these based directly on your sorted feed sizes. Coarse ores require taller riffles ranging from 0.5 to 2.0 millimeters. They need longer mechanical strokes spanning 16 to 32 millimeters. You must run them at lower frequencies. Target 120 to 200 strokes per minute. This allows large heavy rocks time to settle.

Fine ores demand the exact opposite setup. You must install lower riffles measuring 0.1 to 0.5 millimeters. You need much shorter strokes of 4 to 12 millimeters. You must crank up the frequency significantly. Run fine decks between 200 and 400 strokes per minute. This rapid vibration keeps light slimes in suspension while vibrating heavy dust into the grooves.

Transverse slope and water flow balance dictate your final grade. You control the tilt of the deck along its short axis. Increasing the slope accelerates the tailings discharge. Laboratory benchmarks show slopes up to 8 degrees work for certain fast-settling metal separations. A steep slope improves total recovery rates. However, it potentially lowers your concentrate grade by rushing the wash phase.

Decreasing the slope flattens the deck. This increases the mineral retention time. The wash water scrubs the concentrate longer. You achieve a much higher purity concentrate this way. The risk involves a lower overall throughput. You must find the perfect balance through rigorous shift-by-shift testing.

Parameter Calibration Summary

Strategic Plant Integration: Arrays and Middlings Treatment

Scalability relies heavily on your matrix configurations. A single deck processes only a limited tonnage per hour. You must deploy arrays to hit commercial production targets. Series operations focus on purity. You route the rougher concentrate from a primary table directly into a secondary cleaner table. The second deck scrubs the material again. This elevates your final grade purity to market-ready levels.

Parallel operations solve the low-throughput bottleneck. You duplicate identical processing lines across the plant floor. Ten parallel tables handle ten times the incoming feed. You scale up your total plant capacity linearly. Many modern plants combine both methods. They run massive parallel banks of rougher tables. These roughers feed a smaller series bank of cleaner tables.

Value retention depends entirely on middlings handling. "Middlings" represent the tricky middle ground on your discharge edge. They span the physical divide between your pure concentrate and your worthless tailings. They consist of unliberated particles. A grain of heavy gold might remain physically attached to a light piece of quartz.

You must adopt a strict best practice here. Never discard your middlings. You lose hidden value instantly. Route them to a dedicated middlings table tuned specifically for mixed gravities. Better yet, send them through a re-grind closed-circuit loop. A secondary ball mill crushes the quartz further. This achieves full mineral liberation. You recapture the trapped value on the next pass.

Capex, Opex, and ROI Considerations

Investment baselines for gravity equipment look highly favorable. Base unit costs typically range between $1,000 and $5,000. The primary CAPEX does not stem from individual machine costs. It depends heavily on the sheer volume of tables required. You need many units to hit massive total throughput goals. You must also budget for the complex slurry piping and launder networks connecting them.

Operating expenses remain exceptionally low. The separation process relies entirely on gravity and basic wash water. You eliminate massive ongoing procurement costs. You do not buy hazardous chemical reagents like cyanide. You avoid mercury amalgamation entirely. This slashes your regulatory compliance burdens. It reduces environmental permitting delays. You save immense capital on toxic tailings storage facilities.

Installation and maintenance realities require specific field experience. You cannot simply bolt a deck down and run ore over it. You must mandate a 1-to-2 hour empty-load test run upon initial installation. You use this time to verify absolute leveling. You must detect any asymmetric mechanical noises. Grinding sounds indicate misaligned eccentric gears.

Routine maintenance stays restricted to very manageable tasks. Your operators must focus on consistency.

• Lubricate the enclosed head motion mechanism religiously.

• Perform routine water scale removal across the deck surface.

• Inspect the flexible suspension cables for fraying.

• Check the heavy foundation anchors to ensure vibrations have not loosened the concrete bolts.

Conclusion

The shaking table remains an indispensable technology for heavy mineral recovery. When operators size it properly and tune parameters accurately, it delivers extreme concentrate grades. It achieves these impressive metallurgical results with minimal environmental impact. You avoid toxic chemicals entirely while maximizing yield.

Before initiating bulk procurement, decision-makers should take calculated next steps. Request vendor laboratory bench tests first. Supply them with site-specific ore samples. Use these controlled tests to determine exact stroke, slope, and frequency requirements. Verify multi-deck viability early to optimize your ultimate plant footprint.

FAQ

Q: What is the maximum feed size for a standard shaking table?

A: Generally, the absolute upper limit is 3mm. Optimal efficiency actually starts below 2mm. The fluid dynamics cannot effectively stratify rocks larger than this across the riffles. Anything larger requires upstream crushing and milling prior to gravity separation.

Q: How effective is a shaking table for fine gold separation?

A: Highly effective. Modern tables utilize asymmetrical differential motion combined with specialized micro-riffle designs. This specific combination can reliably recover free-milling fine gold down to 20–50 microns. It provides an excellent, high-yield alternative to harmful chemical leaching.

Q: Does a shaking table require chemical reagents?

A: No. It operates as a 100% physical gravity separation process. It relies solely on mechanical motion, specific gravity differentials, and clean wash water. This ensures extremely high environmental compliance and allows for straightforward, non-toxic tailings disposal.
