Gold Ore Grinding Wet Pan Mill with 1100/1200/1500 Model Options

1100-1500 Model Wet Pan Mill for Gold Ore


Availability:

Quantity:



Inquire Add to Basket

【Capacity】0.1-4 TPH
【Feeding Size】＞30mm
【Discharge Size】0.074-0.6mm
【Type】Single roller, double rollers (common), three-rollers.
【Application】Suitable for crushing and grinding gold, iron, copper, molybdenum, lead, zinc, manganese, antimony, etc.
【Service】Wet Pan design, mineral separation test, mineral processing design, on-site installation or remote installation.

The Wet Pan Mill, also known as an amalgamation grinding mill or gold grinder mill, is a highly efficient and versatile ore grinding mill designed for processing wet materials. Offering exceptional performance in wet crushing, it serves as the ideal alternative to medium-small capacity ball mills, owing to its low investment costs and high output. This mill is widely used in the extraction of various metals, including gold, iron, molybdenum, lead, zinc, and antimony, making it a valuable tool in mineral processing operations.

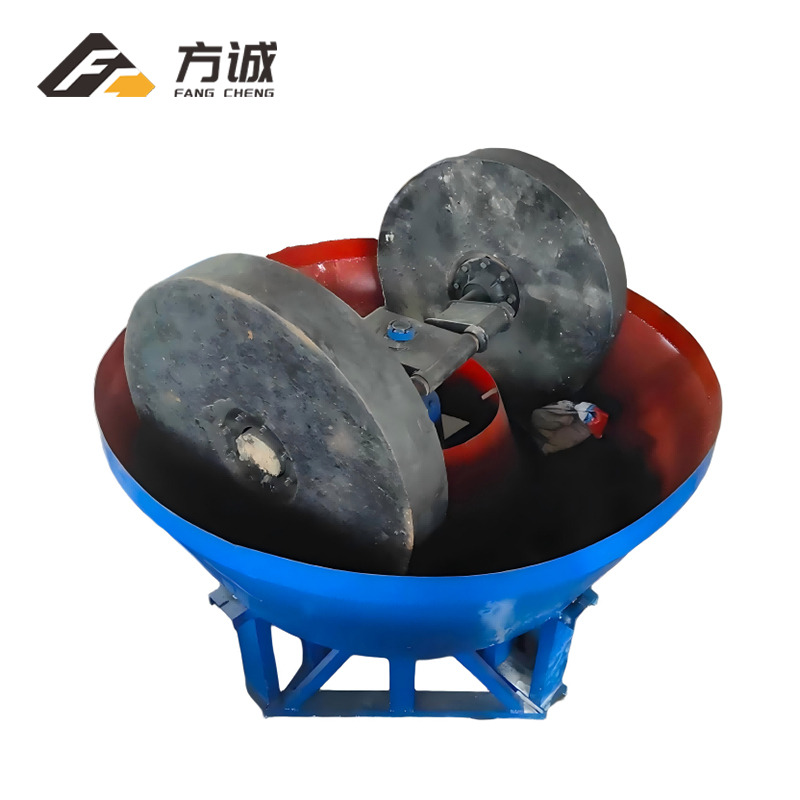

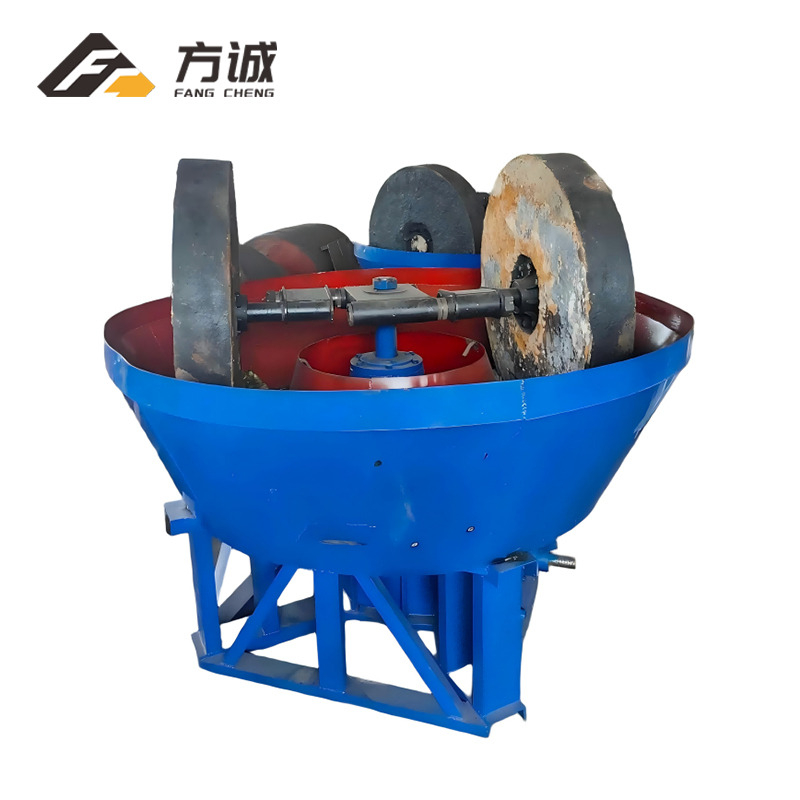

Double Wheel Wet Pan Mill(Twin roller mill Gold Recovery Wet Pan Mill Double Wheel Wet Pan Mill 1200A Wet Pan Mill Mercury-Free Wet Pan Mill

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Working Principle

The wet pan mill achieves the effect of ore crushing and kneading by the self-weight of the wheel mill and the friction generated by the wheel mill and the milling disc during the movement.

Mineral Ore and water enter into the milling disc from the feeding port, and the milling wheel rotates under the action of the transmission device to crush and grind the ore. During the grinding process, gold particles are dissociated from the ore and form amalgam under the action of mercury. The slurry is discharged from the discharge port, and the gold amalgam and tailings can be obtained after further treatment.

Advantages

High Gold Recovery Rate: Achieves 95-98% recovery for >0.01mm gold particles via centrifugal force, 30% higher than traditional sluices.
Eco-Friendly & Energy-Saving: Mercury/cyanide-free process with 50% less water consumption. Closed water circulation ensures zero discharge.
Intelligent Automation: PLC-controlled one-touch operation with real-time monitoring (RPM/feed density) and auto-alert for malfunctions.

Technical Parameters

Wet Pan Mill
Model	Specification(mm)	Feeding size(mm)	Capacity(t/h)	Speed(r/min)	Power（kw）	Weight(Kg)
GD1600	1600400200*500	>30	4	20-22	30	14.5
GD1500A	1500350200*460	>30	3	20-22	22	13.3
GD1500B	1500350150*460	>30	2.5-3	20-22	22	12.3
GD1500C	1500300150*420	>30	2-2.5	20-22	22	11.3
GD1400	1400250150*350	>30	1.5-2	16-18	18.5	8.5
GD1300	1300250150*350	>30	1.5	21-23	15	7.5
GD1200A	120022080*270	>30	0.9-1.2	16-18	7.5	5.5
GD1200B	120022080*250	>30	0.8-0.1	21-23	7.5	5.5
GD1100	110022080*250	>30	0.6-0.8	16-18	7.5	5
GD1000	100022080*250	>30	0.5	21-23	7.5	5
GD900	90015060*200	>30	0.3	17-19	5.5	4.5
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

1岩金矿-南苏丹

Rock Gold Mine - South Sudan

2砂金矿-津巴布韦

Sand Gold Mines - Zimbabwe

3铬铁矿-南非

Chromite - South Africa

4铬矿-津巴布韦

Chromium Ore - Zimbabwe

5锡矿-玻利维亚

Tin Mines - Bolivia

6锡矿-印尼

Tin Mines - Indonesia

7氧化铜-俄罗斯

Copper Oxide - Russia

8钽铌矿-尼日利亚

Tantalum Niobium Ore - Nigeria

9锂矿-巴西

Lithium Mines - Brazil

10高岭矿-乌干达

Gaoling Mine - Uganda

11铅锌矿-摩洛哥

Lead Zinc Mine - Morocco

12锰矿-肯尼亚

Manganese Ore - Kenya

13赤铁矿-南非

Hematite - South Africa

FAQ

Q: What ores are suitable for wet pan mills?
A: Ideal for gold/silver ores, especially oxidized/alluvial gold. Also used for lead-zinc ore primary grinding.

Q: How to improve gold recovery with wet pan mills?
A: ①Maintain 60-70% pulp density ②Adjust wheel gap regularly ③Use with mercury plates/centrifuges.

Q: Wet pan mill vs ball mill advantages?
A: 50% lower cost, 30-50% energy saving. Best for small-medium gold mines & coarse gold recovery.
