High-Capacity VSI Sand Maker for Artificial Sand Production


Availability:

Quantity:



Inquire Add to Basket

【Feeding Size】≤50mm
【Capacity】60-700tph
【Processing Materials】Crushing and shaping all kinds of medium-hardness materials, such as: cement raw material, clinker, iron ore, sandstone, gypsum, coal gangue, lump coal, river cobbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, stone chips, and so on, as well as some high-purity materials: like the crushing and processing of glass, quartz sand, and other high-purity materials, and so on.
【Application】The VSI sanding making machine is designed to produce high-quality aggregate, sand & gravel for water conservancy, hydropower, highway, high-speed railway, bridge, airport, municipal engineering in the building industry and process the fine ore in the mining industry.
【Service】VIS sand-making machine design, mineral separation test, mineral processing design, on-site installation or remote installation.

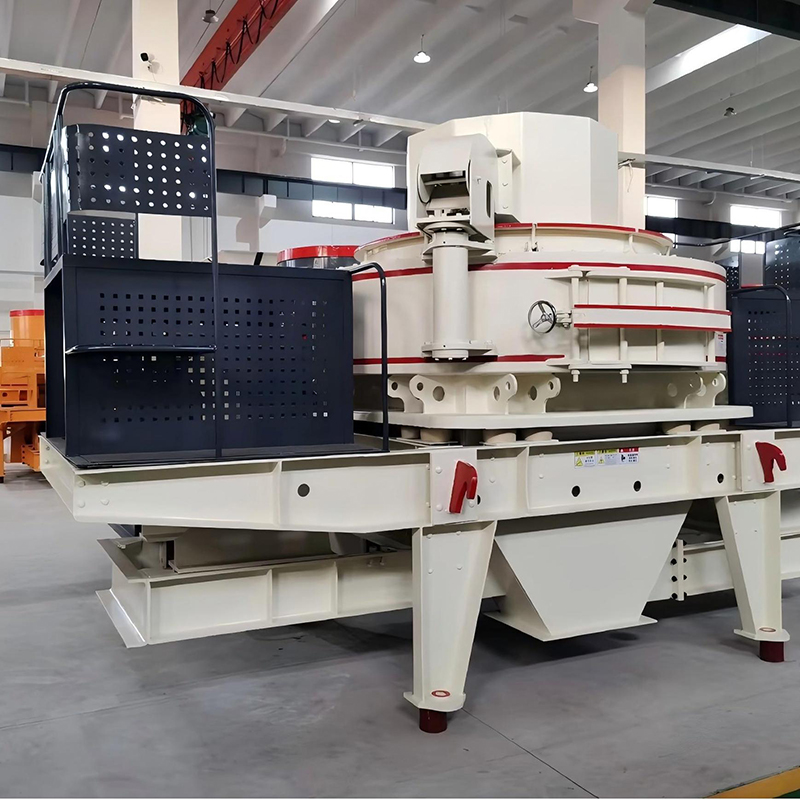

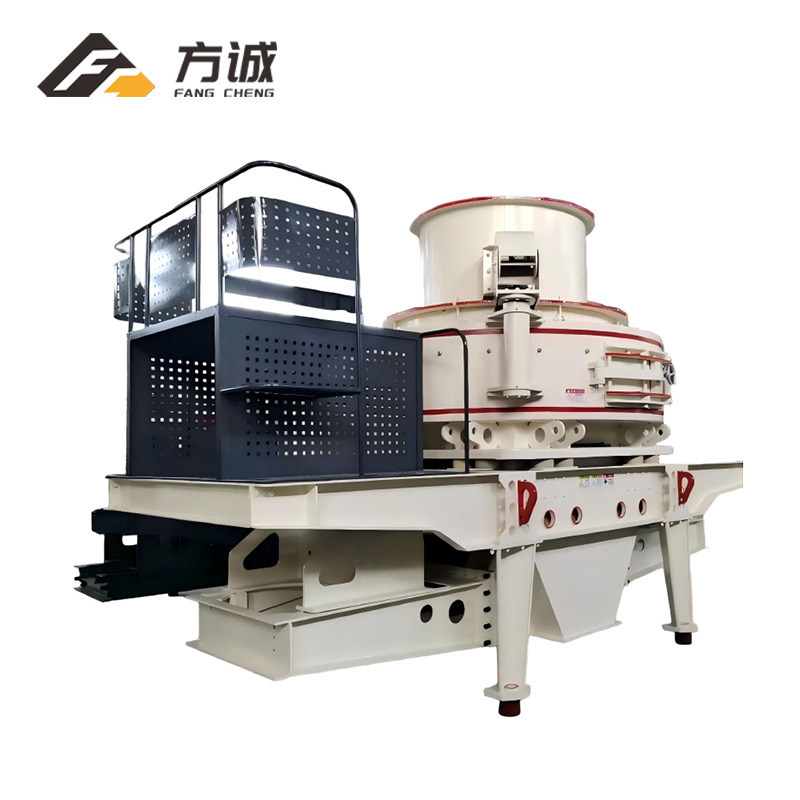

Vertical Shaft Impact Sand Making Machine, also called Vertical Shaft Crusher, is an important equipment for crushing and shaping soft or medium hard materials in mining and artificial sand making industry.

VSI Sand Maker Vertical Shaft Impact Crusher Rock-on-Rock VSI Crusher Mobile VSI Crusher Automatic VSI Crusher

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Working Principle

VSI Vertical Shaft Sand Making Machine adopts the principle of stone hitting stone and stone hitting iron, in which stone hitting stone is used for the processing of abrasive materials; while stone hitting iron is used for the processing of less abrasive materials, and the rate of sand formation is high and the sand making effect is good.

When the equipment operates, the material from the upper part of the sand making machine falls vertically into the high-speed rotating impeller, the high-speed rotating hammer head will hit the material to the inner wall of the liner, between the impeller and the casing of the material to form a vortex many times each other, friction and crushing, from the lower discharge port discharge, forming a closed-circuit cycle of several times, and then by the screening equipment to control the finished product size up to the standard.

Advantages

High output and high efficiency: The optimized design of the deep cavity rotor increases the material throughput by about 30%.
Long service life: The service life is increased by more than 40%, reducing daily fault repairs, saving costs, and improving efficiency;
Excellent sand particle type: The processed river pebble sand particle has a beautiful appearance, reasonable gradation, and adjustable fineness modulus.
Environmental protection is in place: The deep cavity turbine design, good exhaust system, and efficient dust removal equipment are used to reduce dust pollution; in addition, the equipment operates smoothly, reduces the body’s vibration, and reduces the noise of equipment startup and operation.

Technical Parameters

VSI Sand Making Machine
Model	Feeding Size(mm)	Capacity（tph）	Power（kw)	Speed of Main Shaft (r/min)	Dimension
VSI-7611	＜35	60-90	55*2	1700	3700x2150x2100
VSI-8518	＜40	100-130	90*2	1520	4140x2280x2425
VSI-9526	＜45	150-190	132*2	1360	4560x2447x2278
VSI-1140	＜50	225-260	200*2	1180	5000x2700x3300
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

1岩金矿-南苏丹

Rock Gold Mine - South Sudan

2砂金矿-津巴布韦

Sand Gold Mines - Zimbabwe

3铬铁矿-南非

Chromite - South Africa

4铬矿-津巴布韦

Chromium Ore - Zimbabwe

5锡矿-玻利维亚

Tin Mines - Bolivia

6锡矿-印尼

Tin Mines - Indonesia

7氧化铜-俄罗斯

Copper Oxide - Russia

8钽铌矿-尼日利亚

Tantalum Niobium Ore - Nigeria

9锂矿-巴西

Lithium Mines - Brazil

10高岭矿-乌干达

Gaoling Mine - Uganda

11铅锌矿-摩洛哥

Lead Zinc Mine - Morocco

12锰矿-肯尼亚

Manganese Ore - Kenya

13赤铁矿-南非

Hematite - South Africa

FAQ

Q: What materials suit VSI sand making machines?
A: Best for medium-hard rocks (granite, pebble, basalt) producing 0-5mm high-quality sand. Avoid sticky/clay-rich materials.

Q: How to reduce wear parts cost in VSI crushers?
A: ①Use tungsten carbide tips ②Ensure even feeding ③Rotate wear parts ④Keep moisture <5%.

Q: VSI vs impact sand maker differences?
A: VSI's rock-on-rock principle gives 90%+ cubical grains, adjustable fineness, and 15-20% lower energy use.
