Heavy-Duty 2PG Double Roller Crusher for Primary & Secondary Crushing

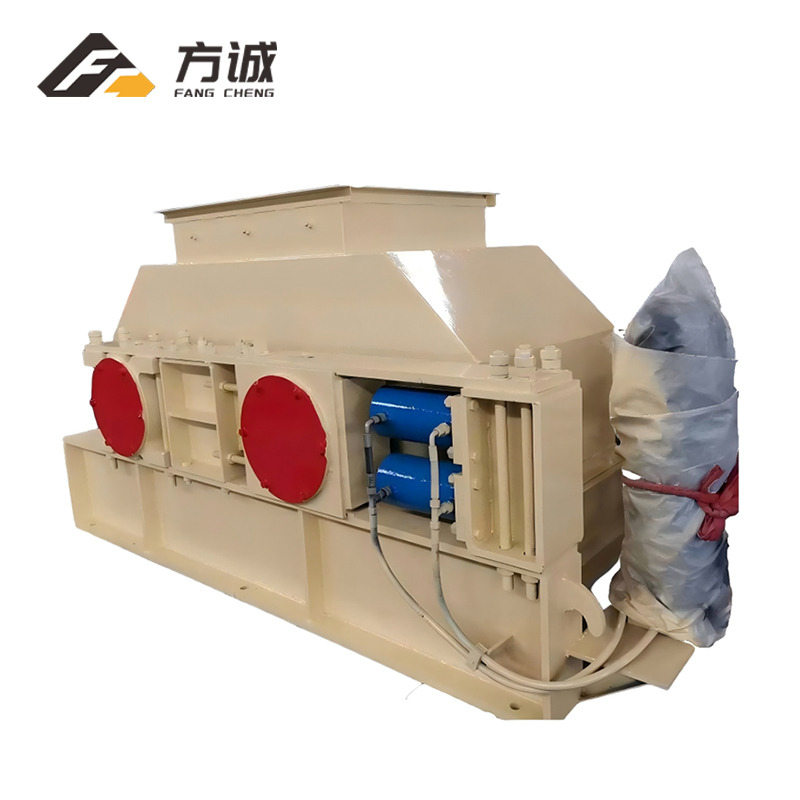

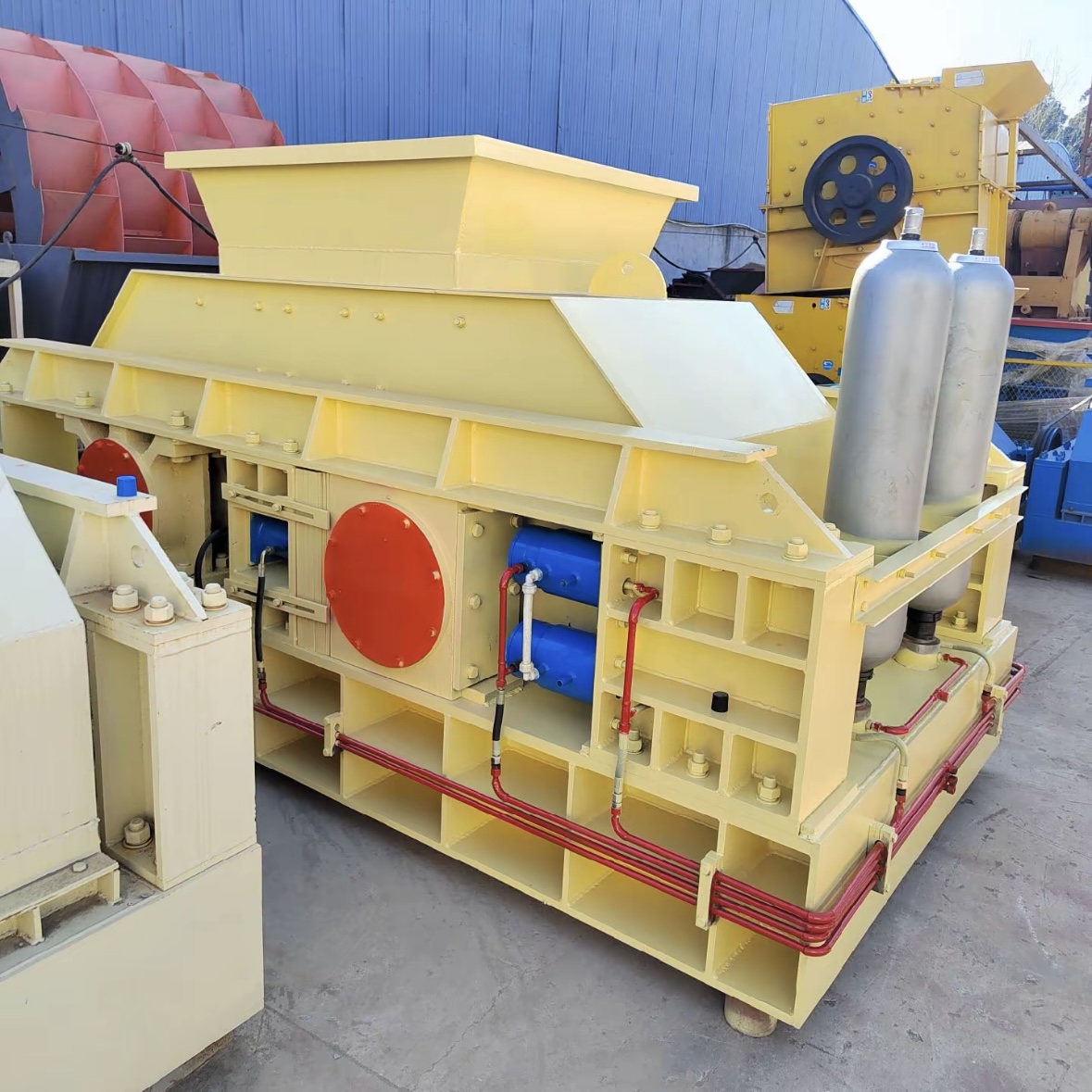

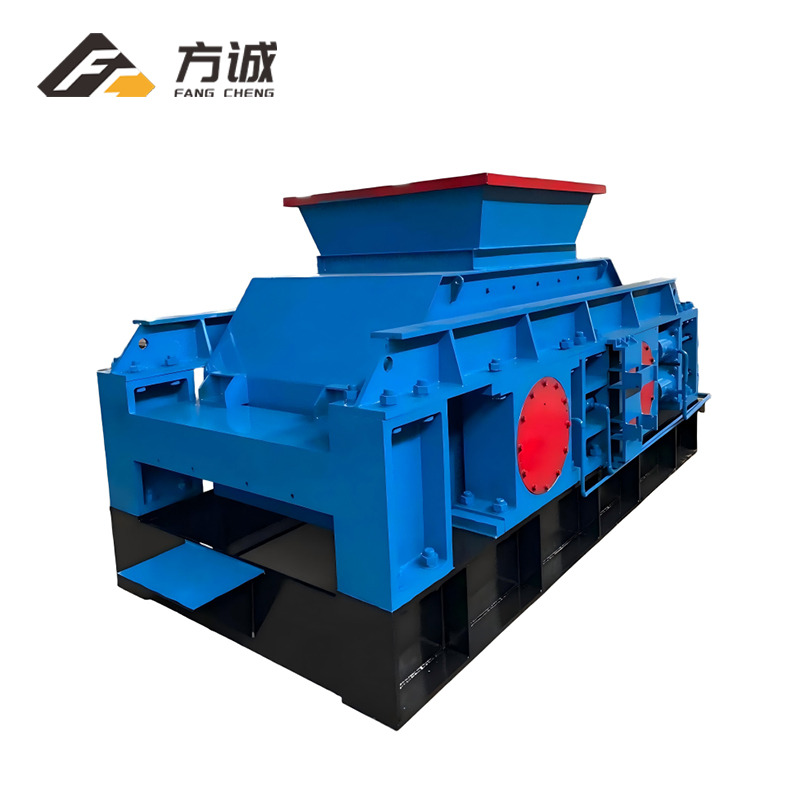

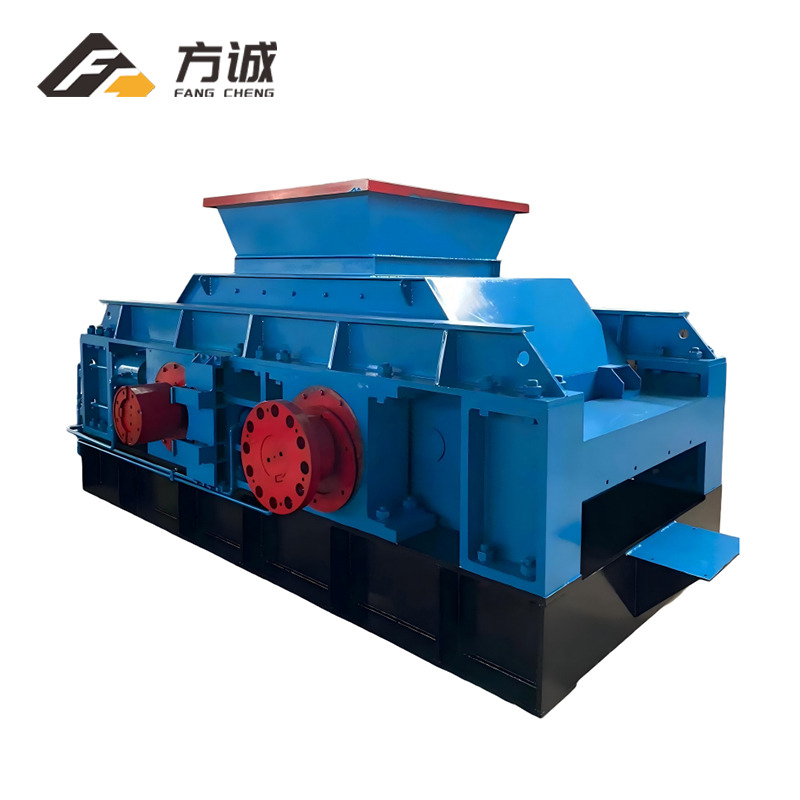

2PG Double Roller Crusher for Primary Crushing


Availability:

Quantity:



Inquire Add to Basket

【Capacity】2-180T/H
【Feeding Size】≤120mm
【Discharge Size】≤0-8m
【Type】Single-roller crusher, double-roller crusher, or four-roller crusher, industrial roller crushers and small laboratory roller crushers.
【Crushing Material】River pebble, granite, basalt, iron ore, limestone, quartz, gangue, etc.
【Application】Suitable for crushing brittle bulk materials in cement, chemical, electric power, mining, metallurgy, building materials, refractory materials, coal mines, etc.
【Service】Double roller crusher design, mineral separation test, mineral processing process design, on-site installation or remote installation.

The Double Roller Crusher, also known as a roll crusher or toothed roll crusher, is suitable for fine crushing of medium-hardness rocks with a compressive strength of ≤300MPa. It is widely used for processing materials such as ores, rocks, coke, coal, clinker, ceramic raw materials, slag, refractory materials, and chemicals.

According to the number of rolls, the roll crushers can be divided into single-roller crushers, double-roller crushers, or four-roller crushers. Double roller crusher is the most used type.
We offer both industrial roller crushers and small roll crushers for laboratory use.

2PG Roller Crusher Smooth Roll Crusher Toothed Roll Crusher Hydraulic Roller Crusher Anti-Wear Roller Crusher

Work Principle

Advantages

Parameters

Successful Cases

FAQ

Working Principle

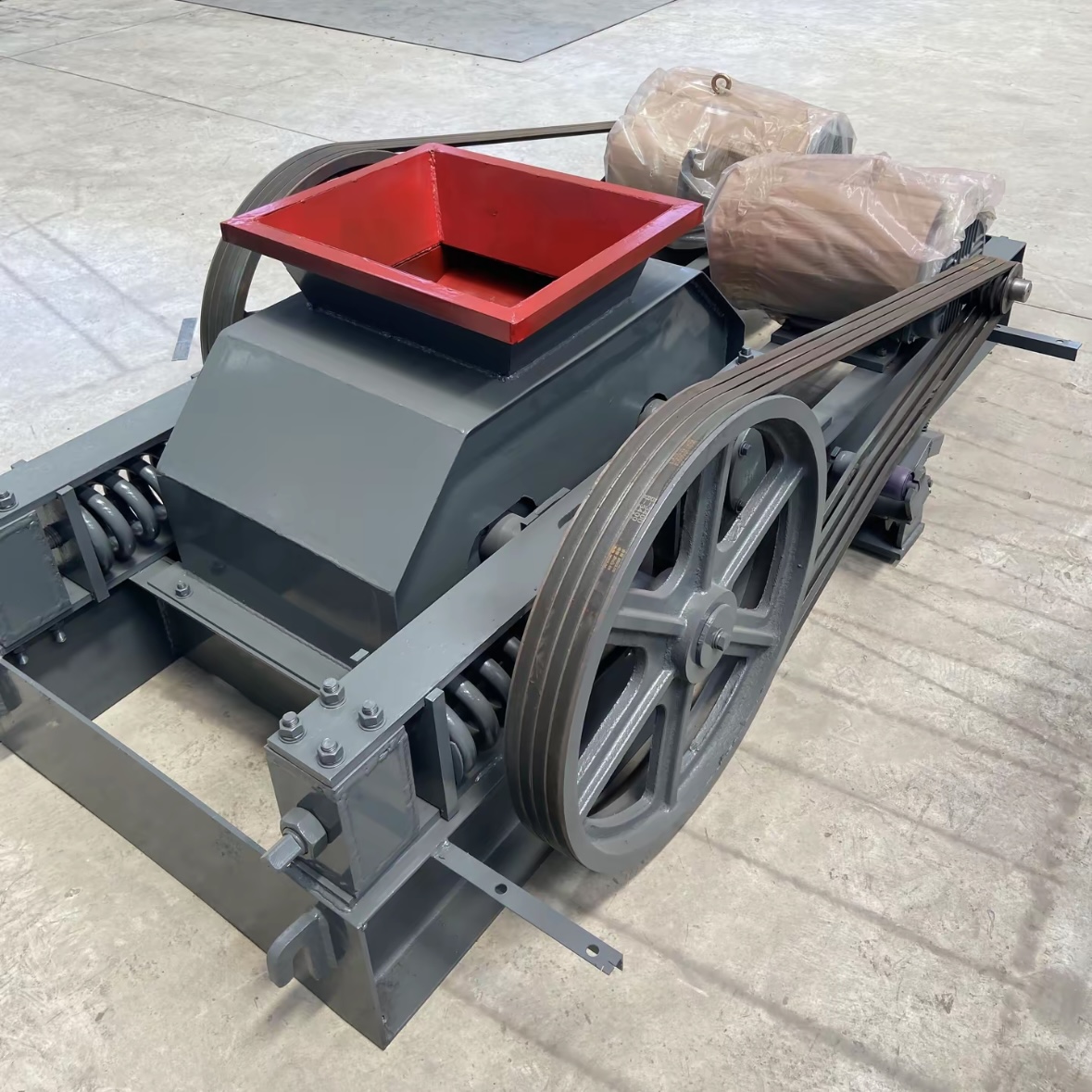

The roller of the roller crusher is supported by the spring pressure.

Under normal working conditions, the spring force is sufficient to overcome the crushing force of the crushed material. By changing the number of spacers between the frame and the movable bearing, the width of the discharge port between the two rolls can be adjusted to adjust the grain size.

When there is a material that cannot be broken into the crushing chamber, the spring is compressed, and the movable roller is retracted to increase the discharge opening. After the material is discharged, the movable roller is reset under the spring pressure.

Advantages

Replaceable wear-resistant lining for long service life and easy maintenance.
Compact structure, lightweight, and small footprint, making it a cost-effective choice for high-capacity crushing systems.
Adjustable discharge opening for precise control of product size.
High reduction ratio, stable operation, low vibration, minimal dust, and reduced noise.
High efficiency, low energy consumption, uniform particle size, and excellent grain shape.

Technical Parameters

Double Drum Crusher/High Pressure Grinding Roll
Model	Roller dia.（mm）	Feeding Size（mm)	Discharge size(adjustable)（mm）	Capacity(t/h)	Feeding Opening Size(mm）	Discharge Opening Size(mm)	Power(kw)	Dimension(mm)
2PGS800	Φ800	<40	0-8	10-30	500*500	1600*600	22*2	27502580935
2PGS1000	Φ1000	<50	0-10	20-40	600*500	2000*700	45*2	350032001200
2PGS1200	Φ1200	<60	0-10	30-60	700*600	2400*800	55*2	350032701440
2PGS1500	Φ1500	<70	0-12	40-80	800*800	3000*900	75*2	360042001865
2PGS1800	Φ1800	<90	0-15	80-120	800*720	3600*900	90*2	480042001865
2PGS2000	Φ2000	<120	0-15	90-180	800*1000	4000*1200	132*2	500048002500
The technical parameters provided are for reference only. Final product performance shall be subject to the official technical specifications.

Successful Cases

Rock Gold Mine - South Sudan

Alluvial Gold Mines - Zimbabwe

Chromite - South Africa

Alluvial Chrome Ore - Zimbabwe

Alluvial Tin Mines - Bolivia

Rock Tin Mines - Indonesia

Copper Oxide - Russia

Tantalum Niobium Ore - Nigeria

Lithium Mines - Brazil

Kaolin Mine - Uganda

Lead Zinc Mine - Morocco

Manganese Ore - Kenya

Hematite - South Africa

FAQ

Q: What materials are suitable for double roller crushers?
A: Ideal for medium-low hardness materials (coal, limestone, coke) with low over-crushing rate. Not for ultra-hard ores.

Q: How to adjust output size of double roller crushers?
A: Change roll gap via hydraulic/mechanical system: wider gap for coarser output, narrower for finer.

Q: How to fix uneven roller wear?
A: ①Rotate rolls regularly ②Check feed distribution ③Replace wear-resistant alloy rollers if severely worn.
